Name: Matek AP_PERIPH DRONECAN to PWM Adapter - CAN-L4-PWM
Brand: Matek
SKU: 24155
Price: 30.99 AUD
Availability: InStock

$30.99 AUD

GST included Shipping calculated at checkout.

7 In stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

We open 7:30am Monday - weekend orders are usually ready to collect by 10am

Product details

SKU: 24155

Shipping Weight: 15g

W/H: T-05-G-02

Categories: Matek, Wing Accessories

Dependable — Phaser started in 2014. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

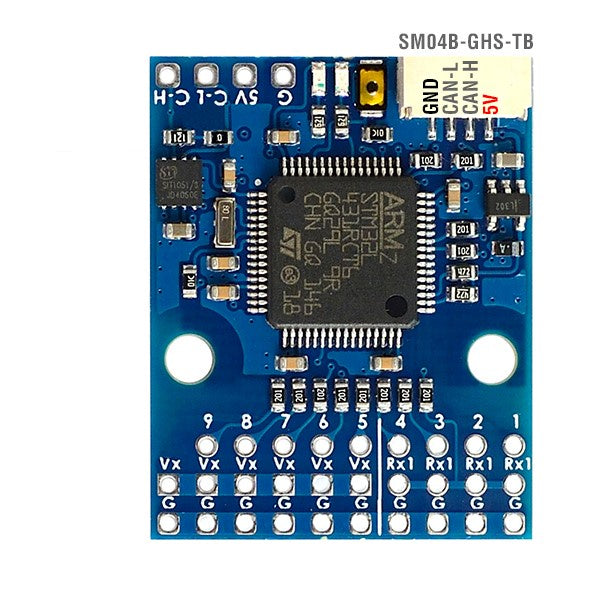

CAN-L4-PWM is an Adapter Node based on ArudPilot AP_Periph firmware.

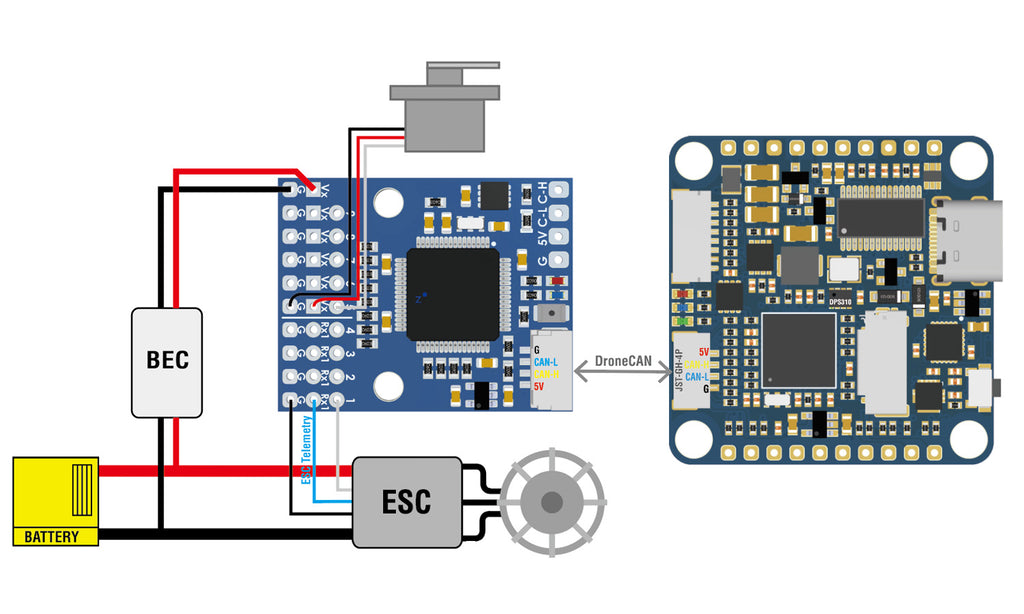

Using this adapter to turn DShot capable ESCs into CAN ESCs, including full ESC telemetry. and turn PWM servos into CAN servos.

LED
- Blue, Fast blinking, Booting
- Blue, Slow blinking, working
- Red, 3.3V indicator
Input voltage range: 4.5~5.5V @5V pad/pin
Power consumption: 30mA
Operating Temperatures: -20~80 °C

“Vx” pads are for powering servos via external BEC. “Vx” is not connected to other components on this board.
“Rx1” pads are for ESC Telemetry, DO NOT connect ESC BEC output to Rx1 pad.
