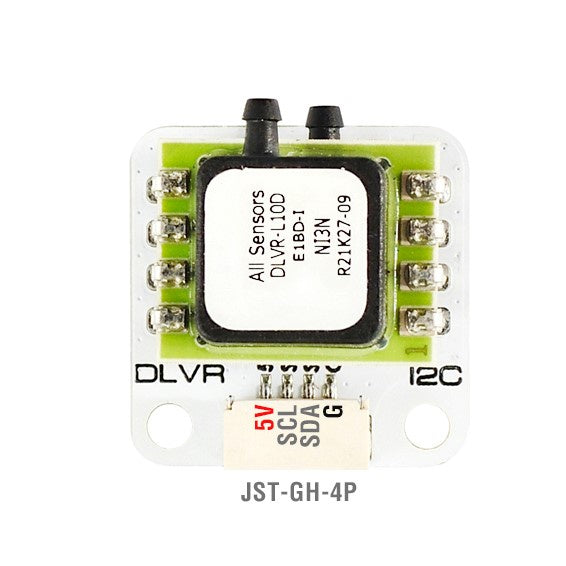

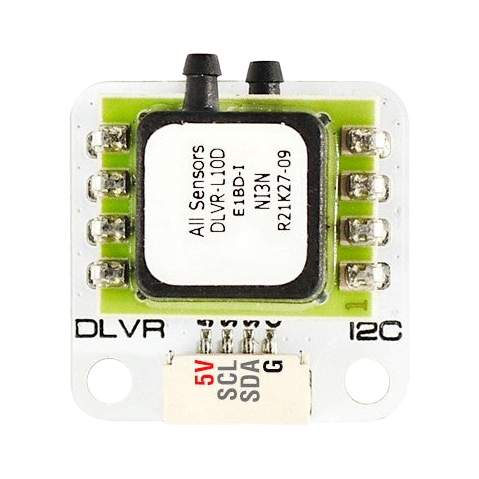

Matek Digital Airspeed Sensor AS-DLVR-I2C

Are you looking to buy a Matek AS-DLVR-I2C Airspeed Sensor in Australia?

This is Matek's latest iteration of their excellent line of RC Airspeed Sensors. Ideal for fixed with RC aircraft that need accurate airspeed input for their missions.

Specifications

• Sensor: All sensors DLVR-L10D,  Industrial temperature range
• Interface: I2C (SCL & SDA)
• Sensor I2C address: 0x28
• Pressure Ranges: 2500Pa
• Maximum Pressure: 75kPa
• Operating Temperature: -25°C ~ 85°C

• Board Supply voltage: 4~5.5V DC
• Working current: 5mA
• Red LED:  3.3V power indicator
• JST-GH sequence: 5V, SCL, SDA, GND
• Weight: 3.5g (sensor board)

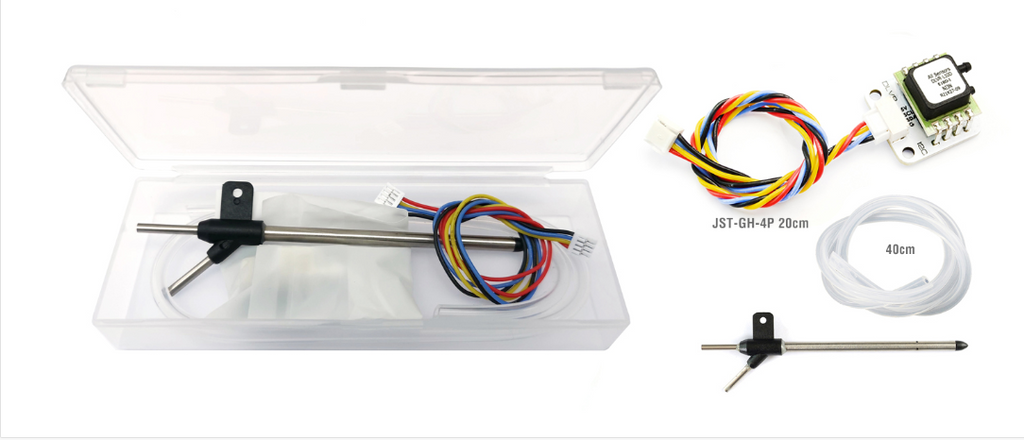

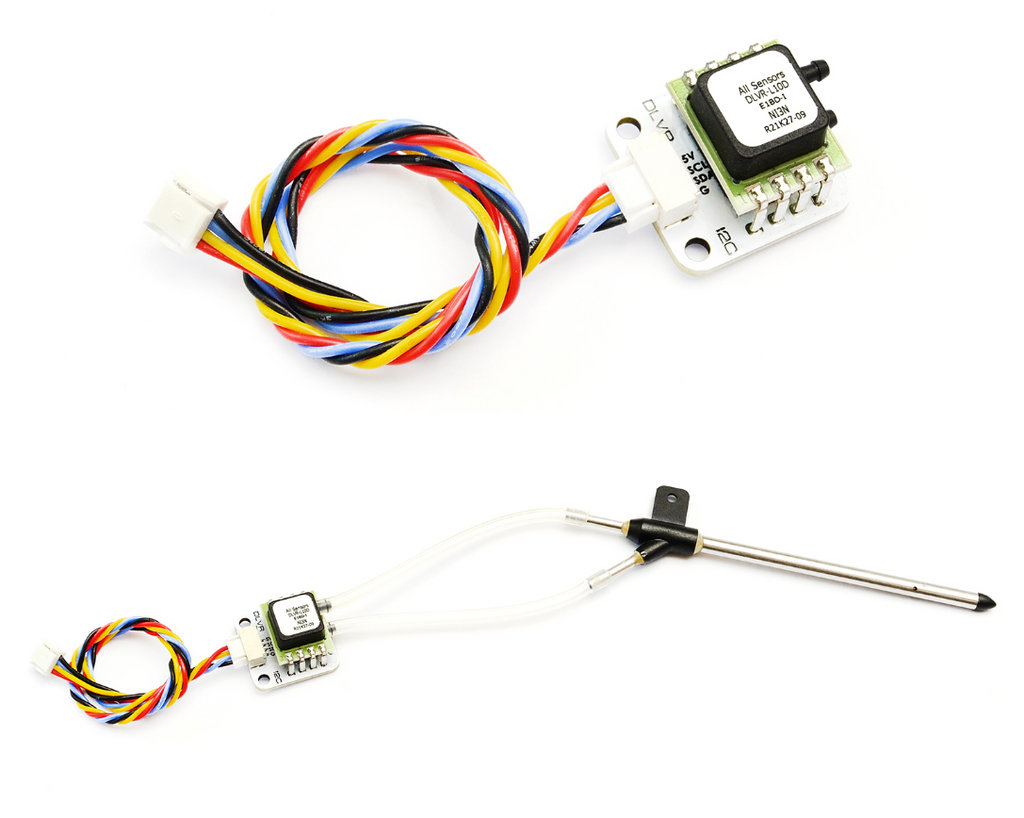

Including

• 1x AS-DLVR-I2C Sensor Board.
• 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
• Pitot Tube.
• Clear silicon tubing  40cm

Wiring

• 5V to FC 4~5.5V
• SCL to FC I2C_SCL
• SDA to FC I2C_SDA
• G to FC GND

Parameters

• ArduPilot: ARSPD_TYPE = 9 (I2C-DLVR-10in)

Tips

• Compatible with ArduPilot only for now, INAV doesn’t support it.
• AS-DLVR-I2C support I2C interface only.  for CAN connection, pls visit ASPD-DLVR page, or use AS-DLVR-I2C with CAN Node L431
