Are you looking to buy Matek Digital Airspeed Sensor ASPD-AUAV in Australia?

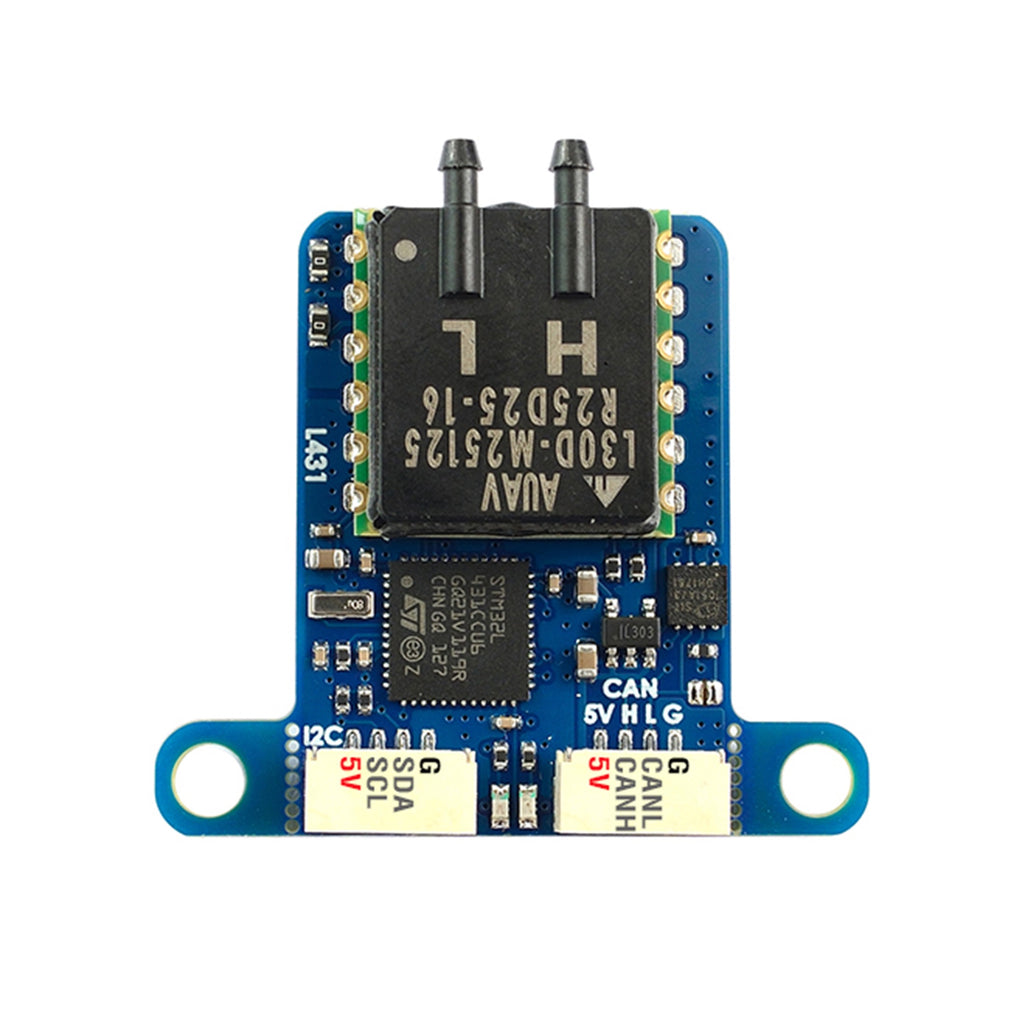

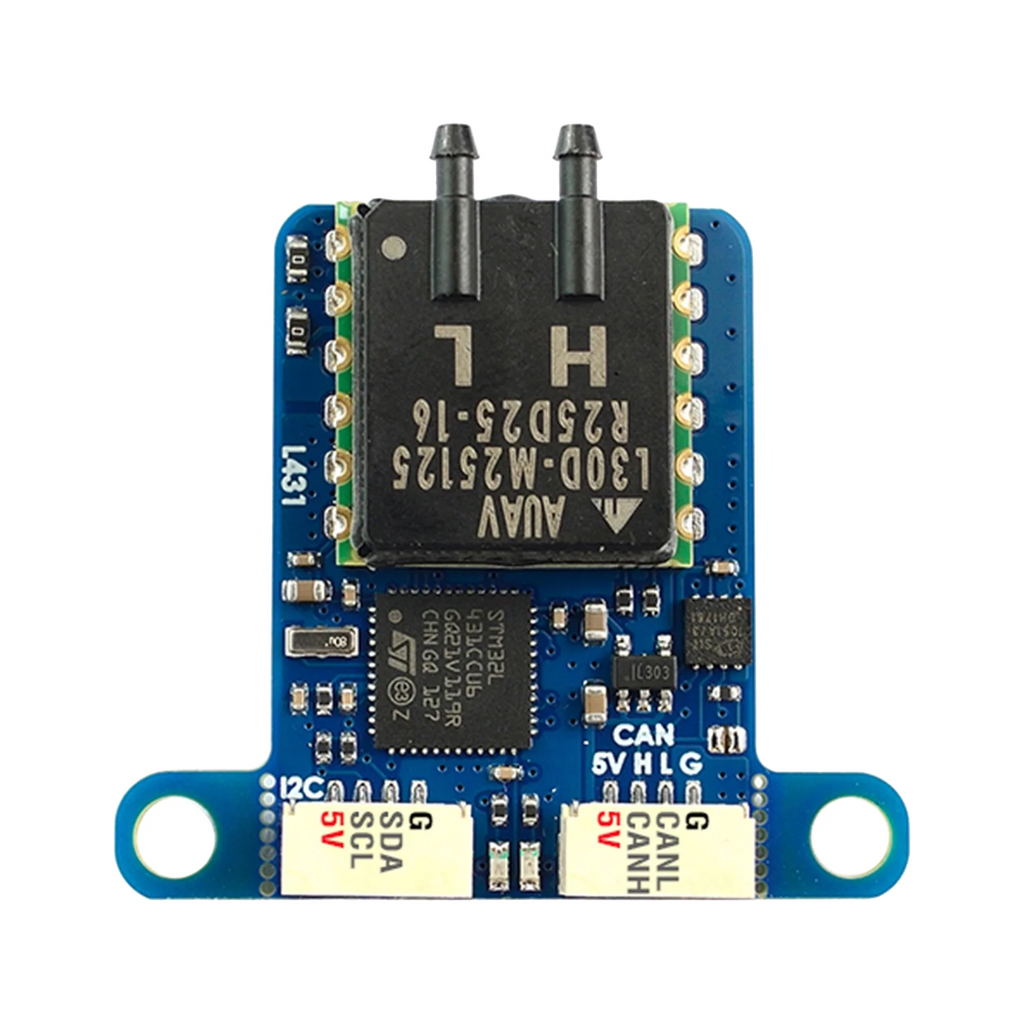

The ASPD-AUAV Digital AirSpeed Sensor delivers accurate and responsive airspeed data for fixed-wing flight controllers. Compact and lightweight, it ensures reliable readings across a wide range of conditions, making it ideal for precision flight, navigation, and autopilot systems.

Specifications

ArduPilot AP_Periph L431 CAN node
All sensors AUAV-L30D
CAN & I2C Interface
CAN JST-GH connector, DroneCAN Protocol
I2C JST-GH connector, AUAV-L30D I2C mode
TX2, MSP protocol
CAN bootloader LED, Blue
- Fast blinking, AP_Periph bootloader
- Slow blinking, CAN Node ready
3.3V Power LED, Red
Input voltage range: 4.5~5.5V
Power consumption: 26mA
Operating Temperatures: -30°C to 85°C
Pressure Range: 7500Pa (± 30 inH2O)
Burst Pressure: 103kPa
Speed Range: 400 km/h(111 m/s)
36mm*32mm*7.3mm
5g
3D step file ASPD-AUAV_STEP.zip

Includes

1x ASPD-AUAV
2x JST-GH-4P to JST-GH-4P 20cm silicon wire

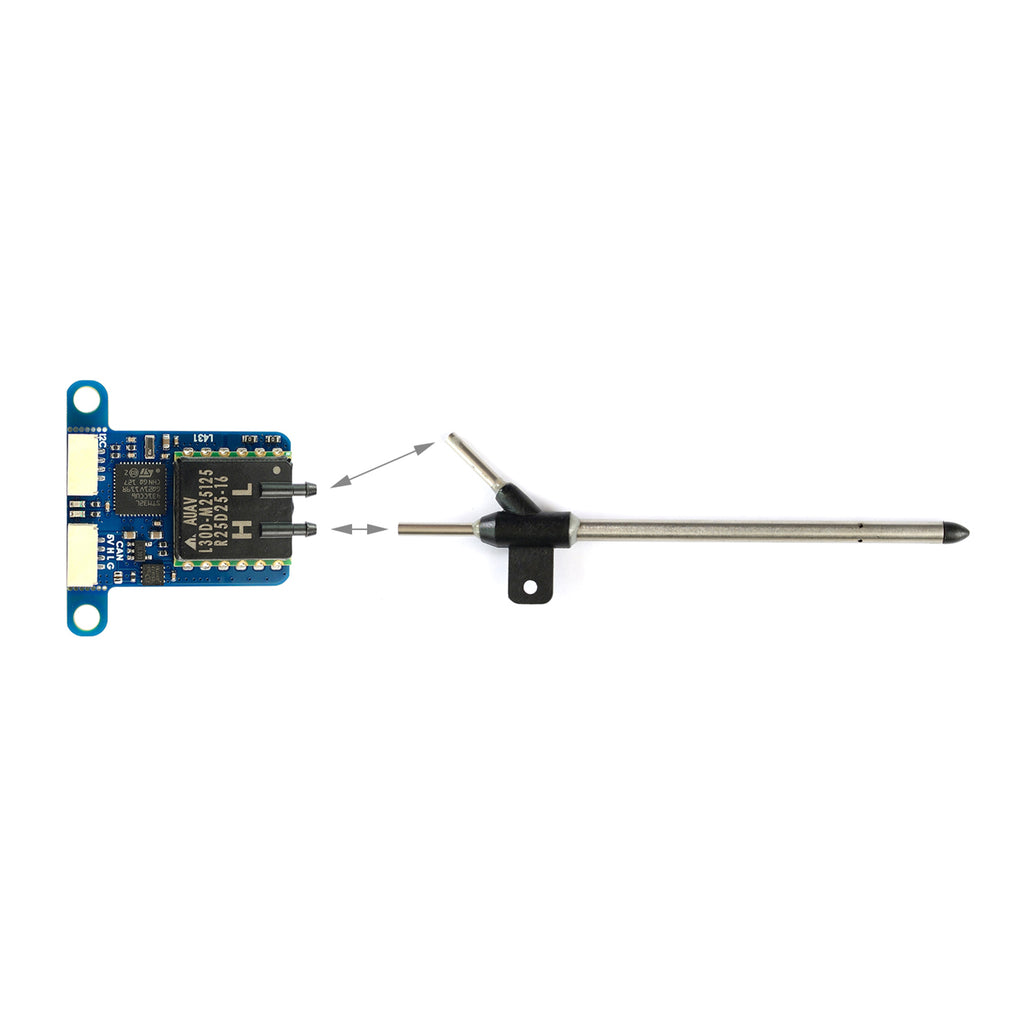

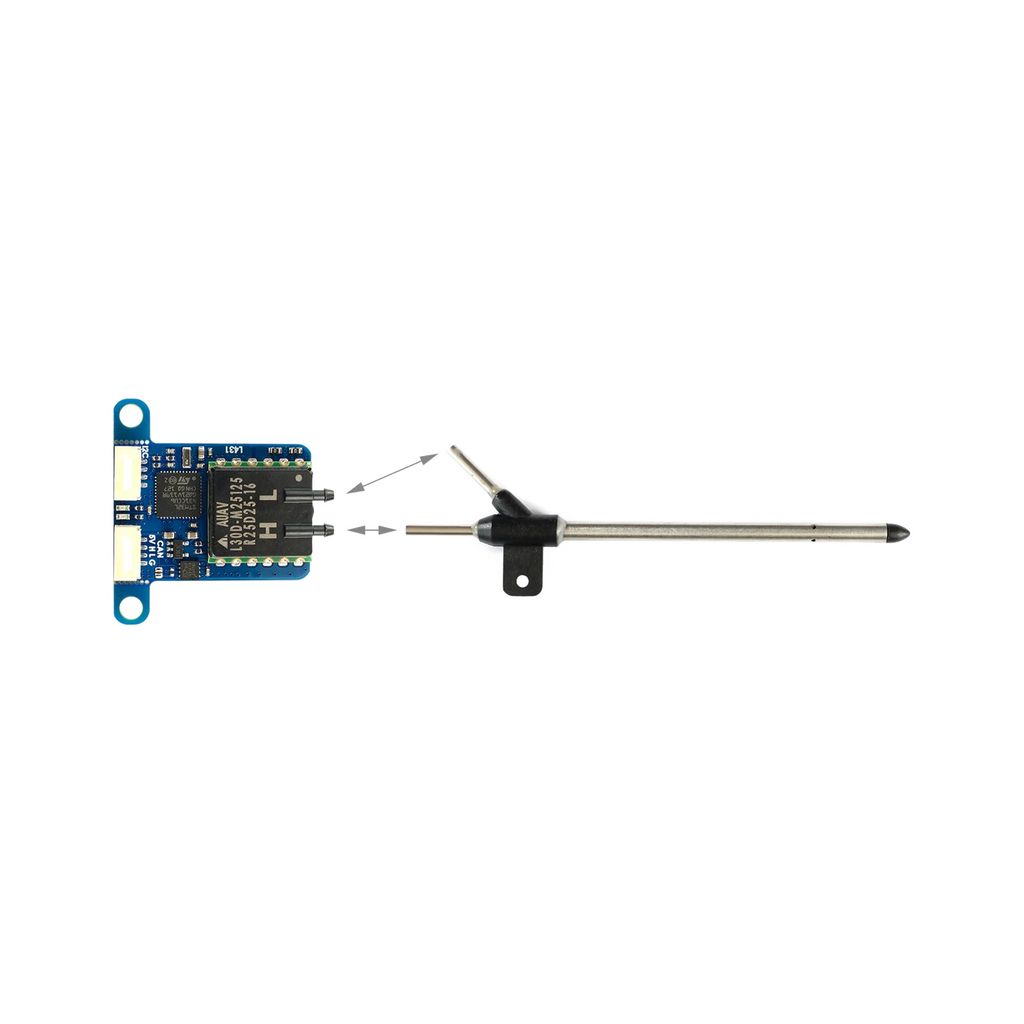

Pitot Tube
Clear silicon tubing 40cm

AP_Periph & DroneCAN protocol

Firmware https://firmware.ardupilot.org/AP_Periph/latest/MatekL431-AUAV/
AP_Periph https://github.com/ArduPilot/ardupilot/blob/master/Tools/AP_Periph/README.md
DroneCAN protocol https://dronecan.github.io/

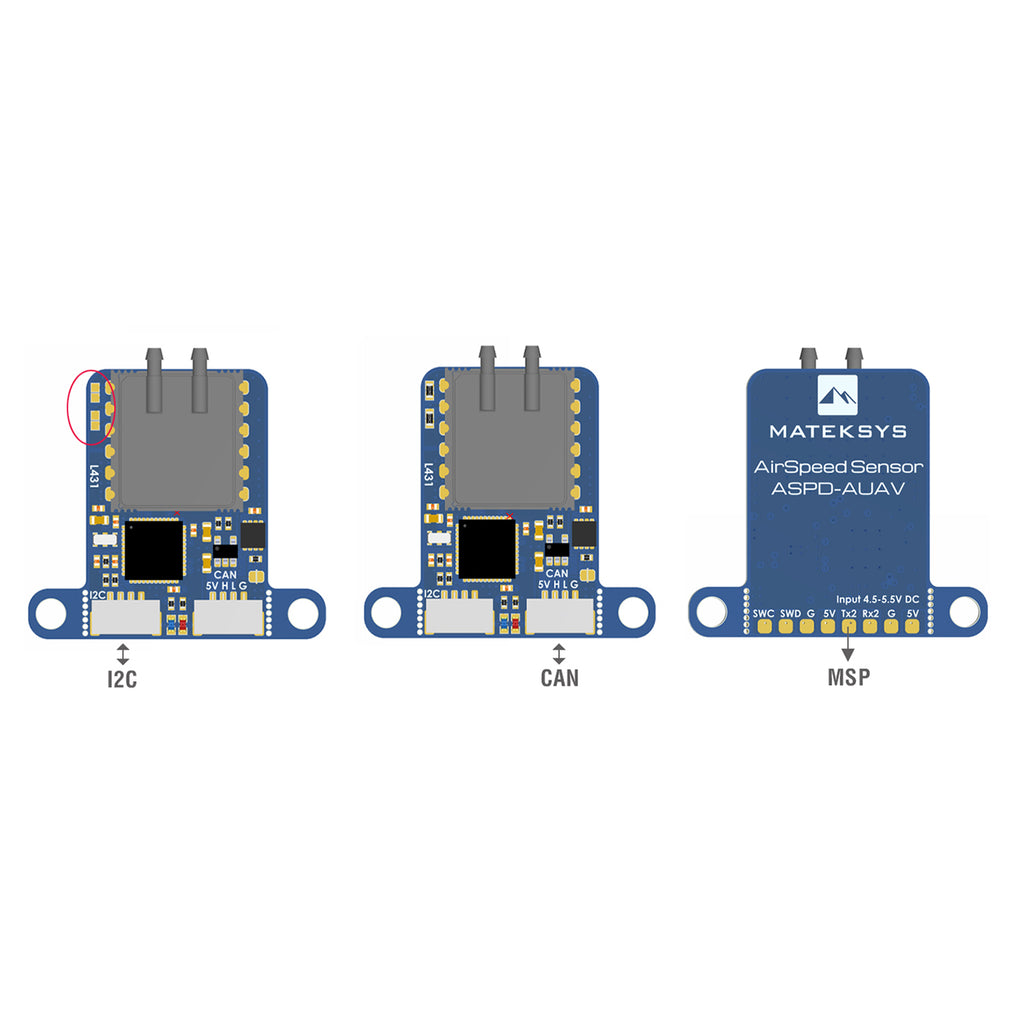

Wiring and AP Parameters

CAN		or	I2C		or	UART
ASPD-AUAV	FC		ASPD-DUAV	FC		ASPD-DUAV	FC
5V CANH CANL G	4.5-5.5V CAN High CAN Low GND		5V SCL SDA G	4.5-5.5V SCL SDA GND		5V G TX2	4.5-5.5V GND spare UART_RX
ARSPD_USE ARSPD_TYPE	1 8 (UAVCAN)		ARSPD_USE ARSPD_TYPE	1 19 (AUAV-30in)		ARSPD_USE ARSPD_TYPE	1 14 (MSP)
						SERIAL_BAUD SERIAL_PROTOCOL	115 (115200) 32 (MSP)

Tips

CAN Baro is enabled by default, If you don’t use the Baro integrated in AUAV, set “BARO_ENABLE = 0” in “Mission Planner->Initial Setup->Optional Hardware->UAVCAN->MAVlink CANx -> Menu Parameters”
ArduPilot has removed AUAV I2C support by default on flight controller with 1MB flash MCU(such as F405, F745 series).
