Product details
SKU: 30125
Shipping Weight: 25g
W/H: U-03-A-12
Categories: GPS, Matek, Specials
Tags: Price Match


Are you looking to buy a Matek GNSS & COMPASS M9N-5883 in Australia?

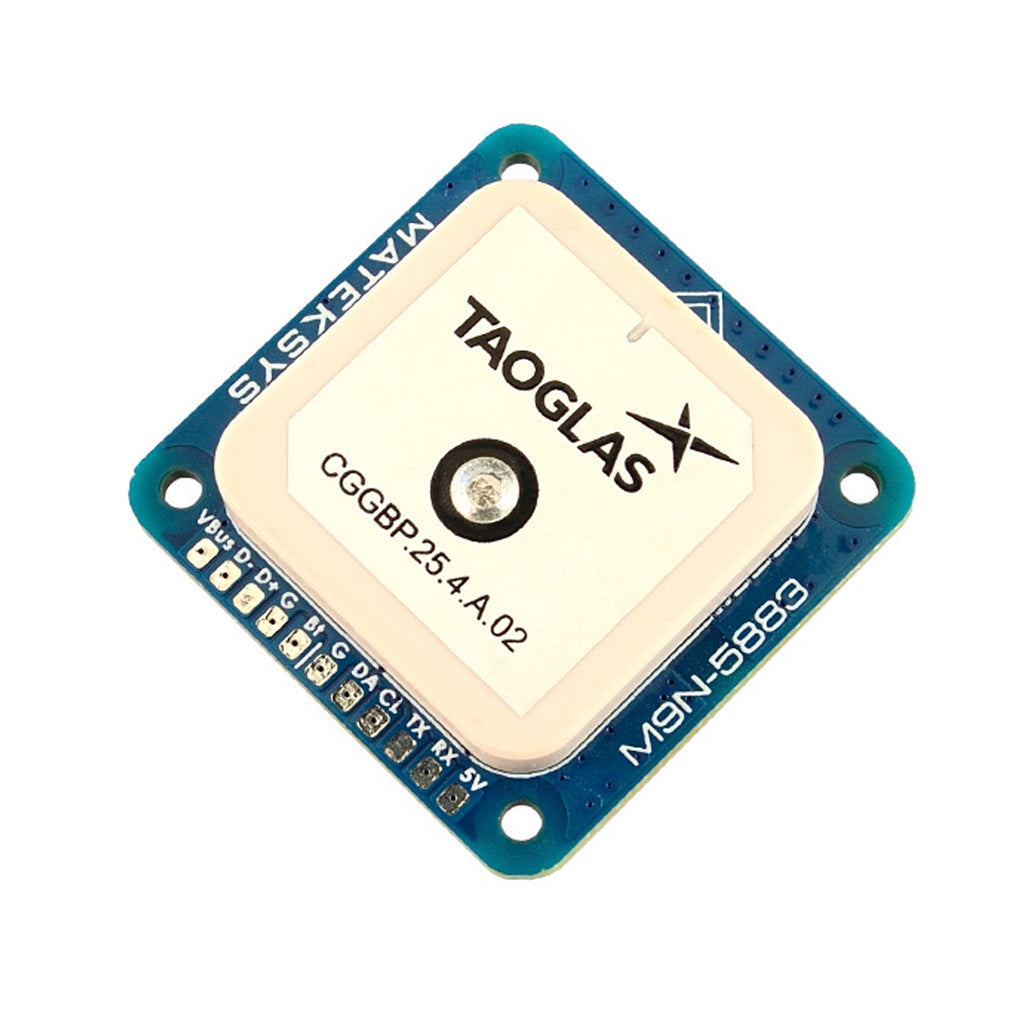

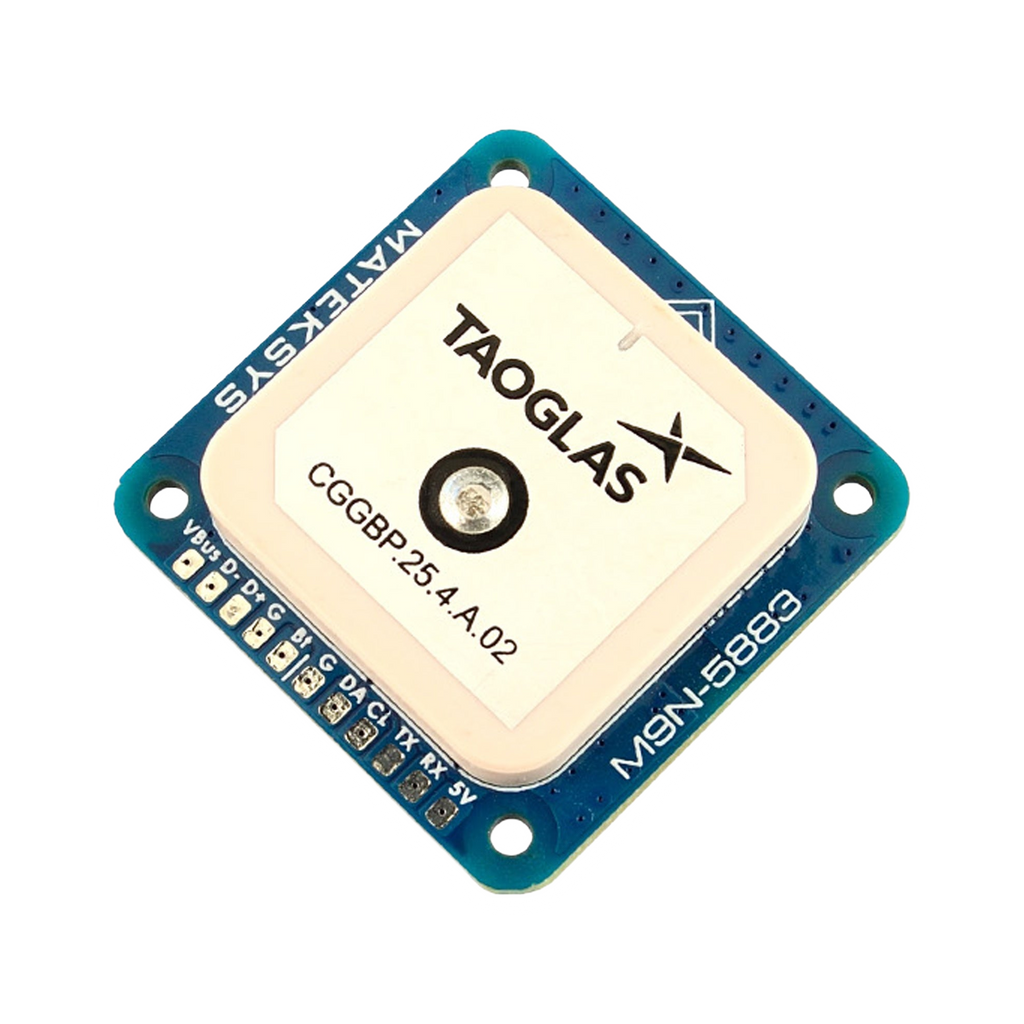

M9N-5883 uses multi-constellation GNSS powered by u-blox NEO-M9N , NEO-M9N is a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

Specifications

  • GNSS u-blox NEO-M9N (GPS, GLONASS, Galileo and BeiDou)
  • Magnetic Compass QMC5883L
  • Patch antenna 25*25*4mm
  • Input voltage range: 4~5.5V (5V pad/pin)
  • Power consumption: 50mA
  • UART baudrate: 38400 default
  • Operating Temperatures: -20~80 °C
  • UART(TX, RX) interface for GNSS NEO-M9N
  • I2C(DA, CL) interface for Compass QMC5883L
  • JST-GH-6P connector
  • 3.3V Power LED, Red
  • GNSS PPS LED, Green,  blinking(1Hz) when GNSS has 3D fixed
  • 32mm*32mm*10mm
  • 14.5g

Includes

  • 1x M9N-5883
  • 1x JST-GH-6P to JST-GH-6P 20cm silicon wire
