Are you looking to buy Matek H743-Wing V3 ICM42688-P/ICM42605 Flight Controller in Australia?
Are you wanting to buy the Matek H743-Wing Flight Controller in Australia?

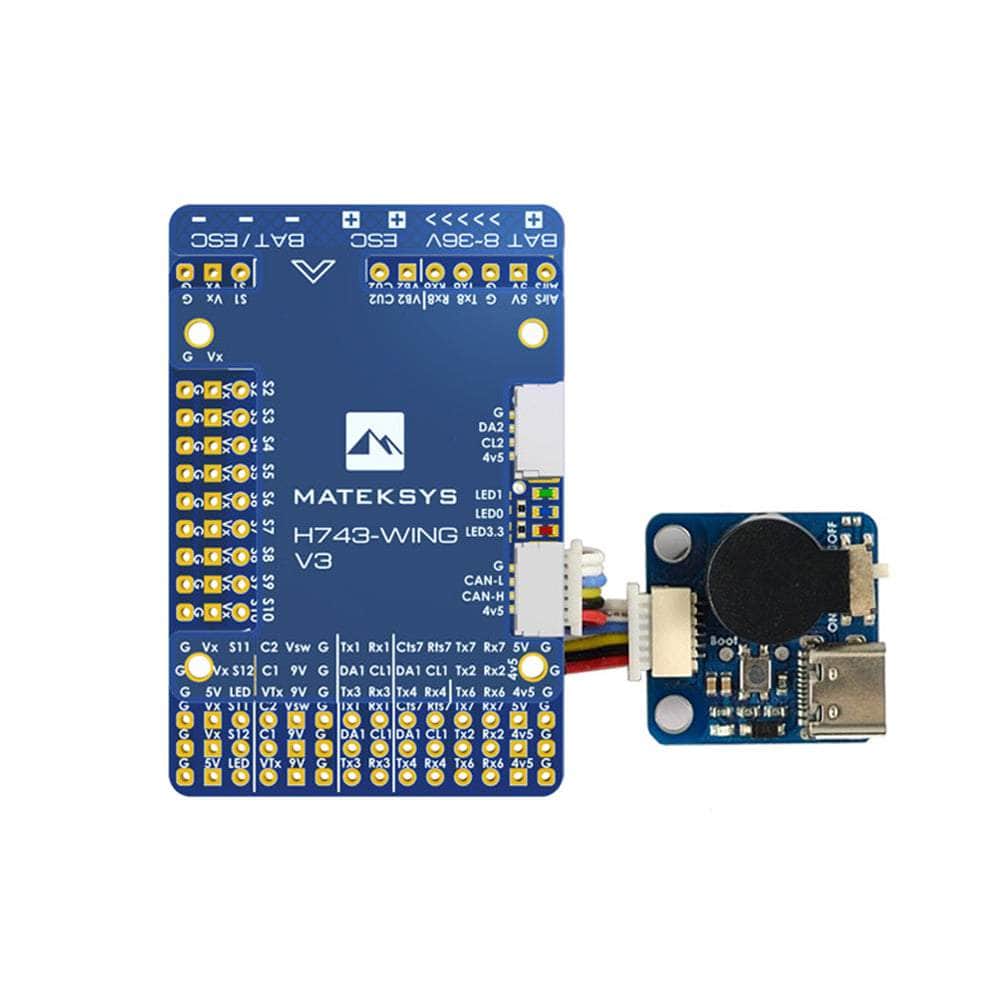

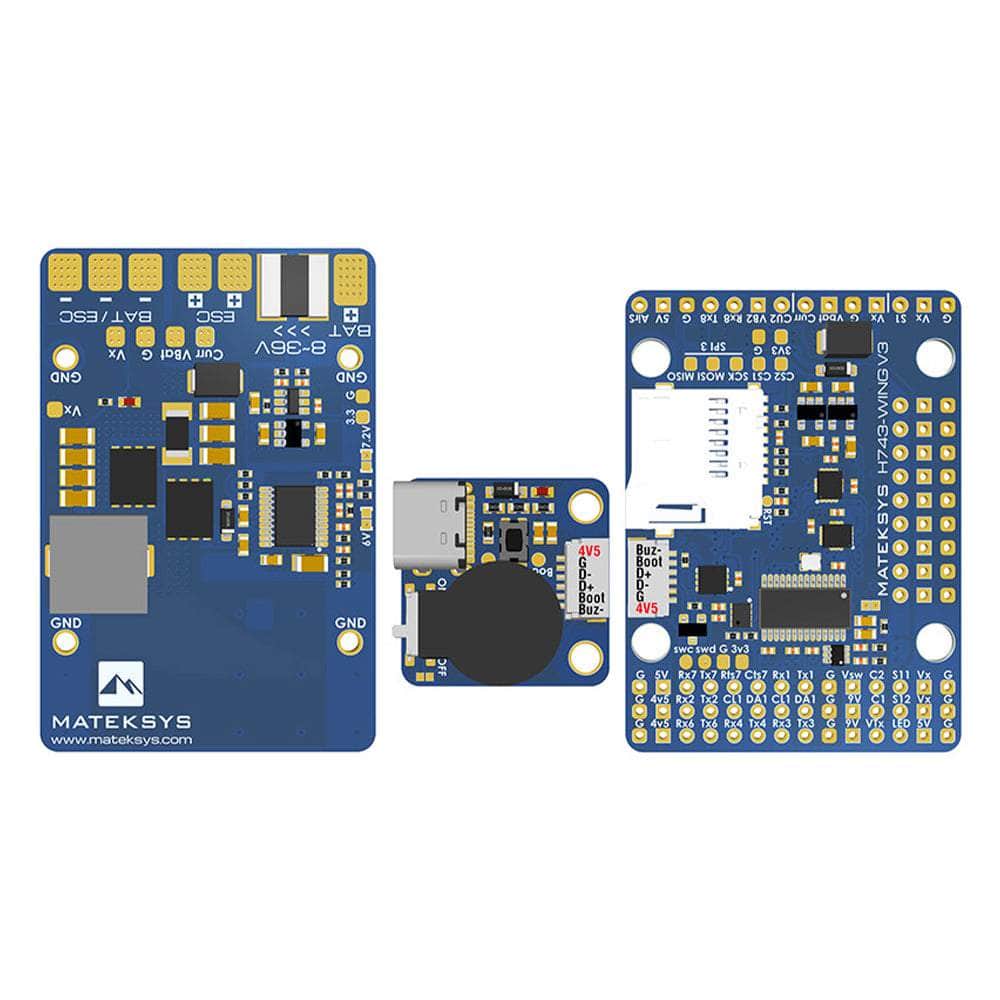

Matek's H743 WING V3 Flight Controller arrives with new features and improvements over the original. This FC features a STM32H743VIT6 MCU running at 480MHz, dual gyros ICM42688-P(SPI1) & ICM42605(SPI4), a DPS310 (I2C2) barometer, and much more.
This version features an updated Gyro compared to the V2.
Specifications
- Input Voltage: 3-8S LiPo
- MCU: STM32H743VIT6
- Gyro: ICM42688-P / ICM42605
- OSD: Yes
- UARTs: 8 Sets
- ESC Connections: Yes
- Firmware: MATEKH743
- BEC: 3.3V, 5V, 9V, 12V
- Current Sensor: Yes
- Buzzer: Yes
- Barometer: Yes
- Black Box: Micro SD
- Stack Size: Not Stack Mounted
- Dimensions: 54x36x13mm
- Weight: 30g
Includes
- 1x Matek H743 Wing V3 Flight Controller
