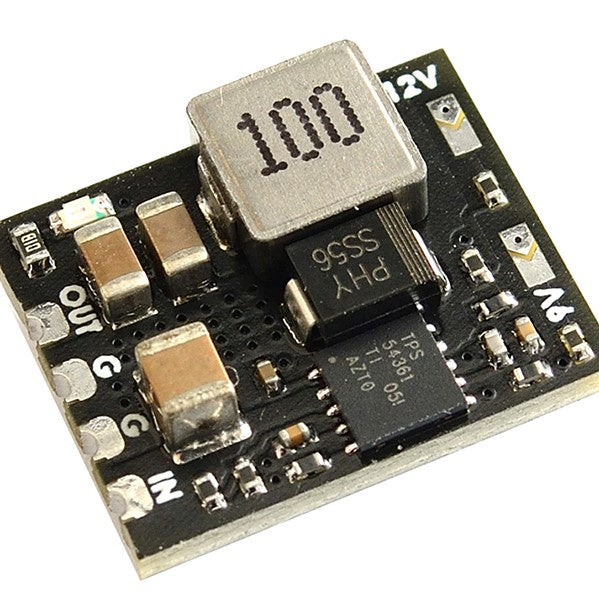

Matek mBEC12S 6-12s BEC
$12.95 AUD
Skip to product information
10+ In stock
Matek mBEC12S 6-12s BEC
$12.95 AUD
GST included
Sale ends in
--d
--h
--m
--s
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup available
1/80 Somersby falls RD, Somersby NSW
Usually ready in 2 hours
SKU:
19918
Shipping Weight:
5g
W/H:
W-02-F-06
Categories:
Matek, PDB & Buzzers
Are you looking to buy a Matek MBEC12S in Australia?
With a ide 6V to 60V Operating Input Range the Matek Mbec12s is an incredibly versatile and lightweight addition to you RC aircraft or electronics project.
Features
- Start-up Voltage >=6.7V
- VOut 5V, 9V or 12V Adj. Default is 5V.
- Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
- Continuous load current: Depends on input voltage and heat dissipation.
-
INPUT: 6-60V, Room Temperature. 22C, without additional heat sink 50V DC IN 24V DC IN 16V DC IN Output Ripple 5V OUT 1.8A cont. 2.3A cont. 2.8A cont. 20mV 3.5A Max. 2s/minute 9V OUT 1.5A cont. 2.1A cont. 2.6A cont. 30mV 3A Max. 2s/minute 12V OUT 1.3A cont. 2A cont. 2.5A cont. 30mV 3A Max. 2s/minute - Standby current: <5mA
- OCP Protection and Hiccup
- Thermal Shutdown
- Output Short-circuit tolerant (3 seconds/minute)
- No protection for reversed input polarity
- Pins distance: 2.54mm
- Size & Weight: 18x15x4.5mm, 2g
- Packing: 1pc/package
