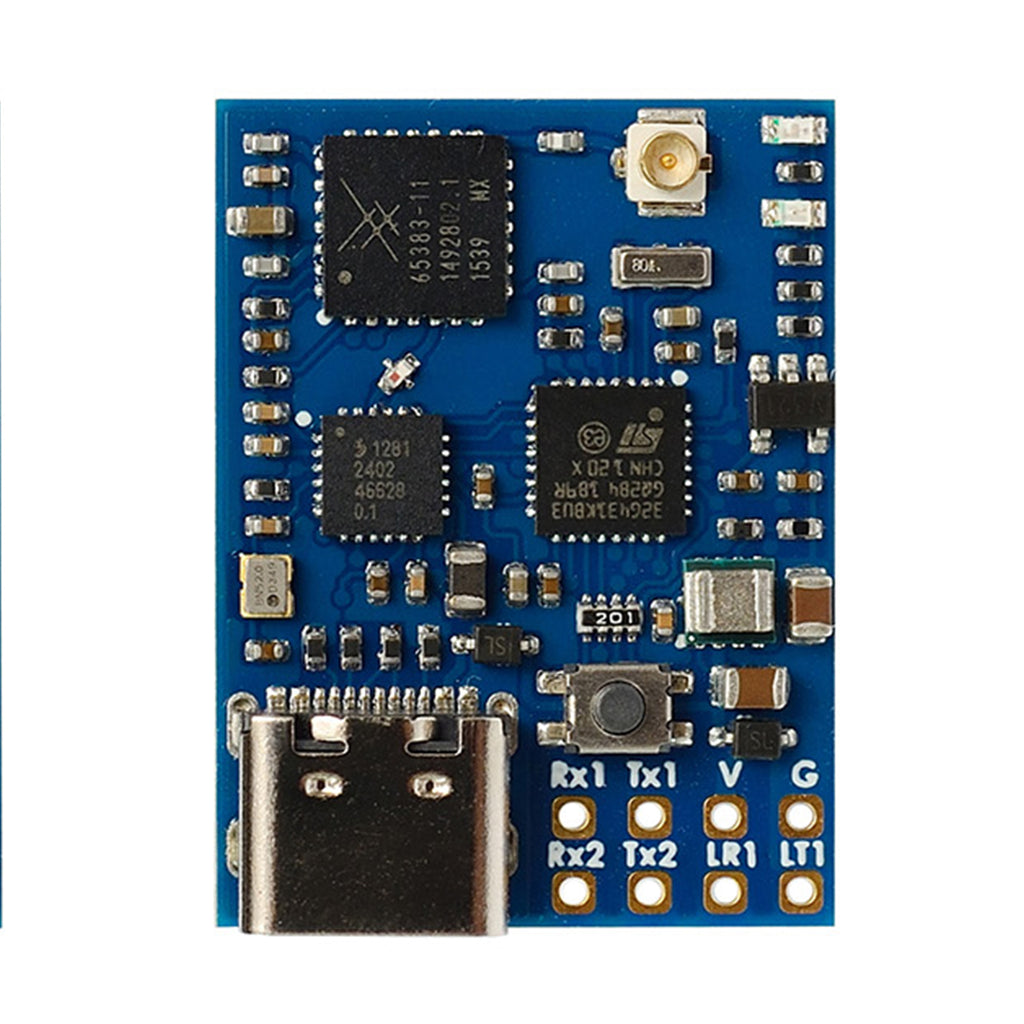

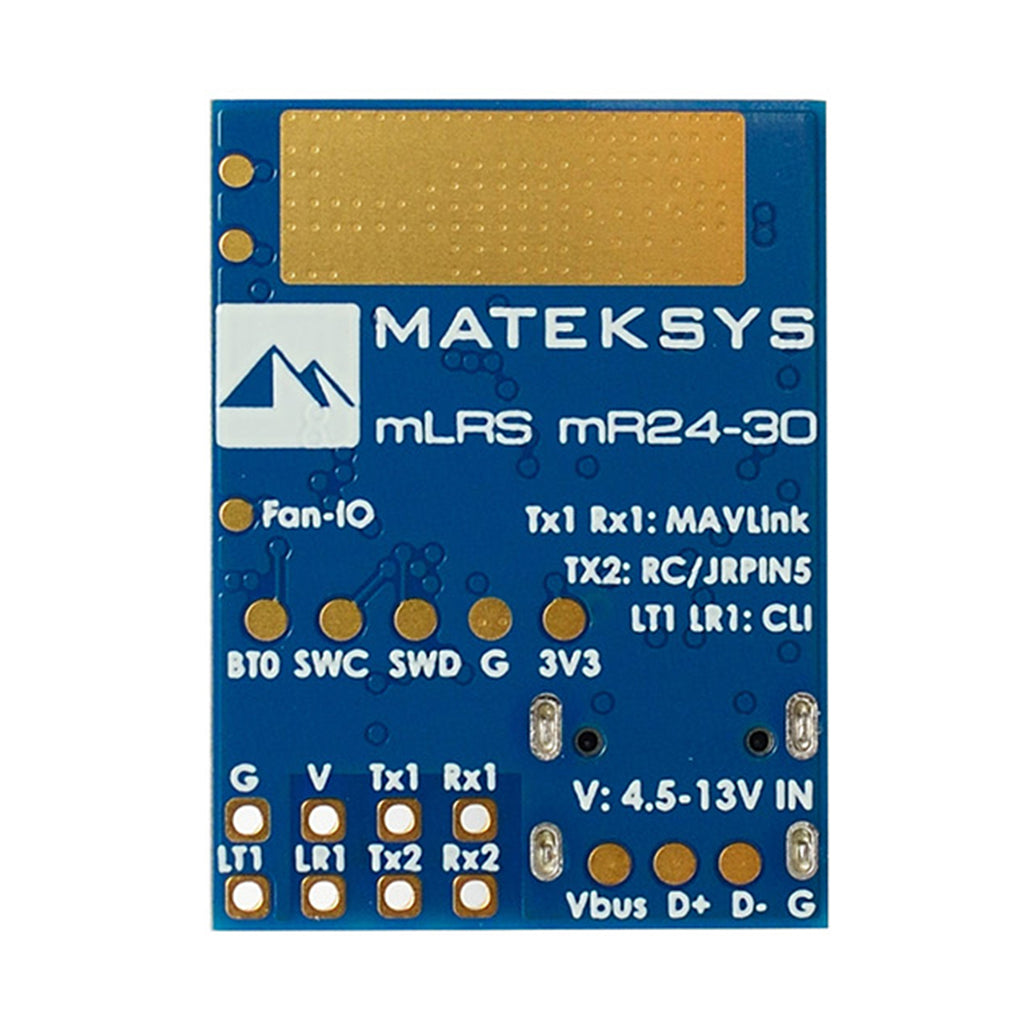

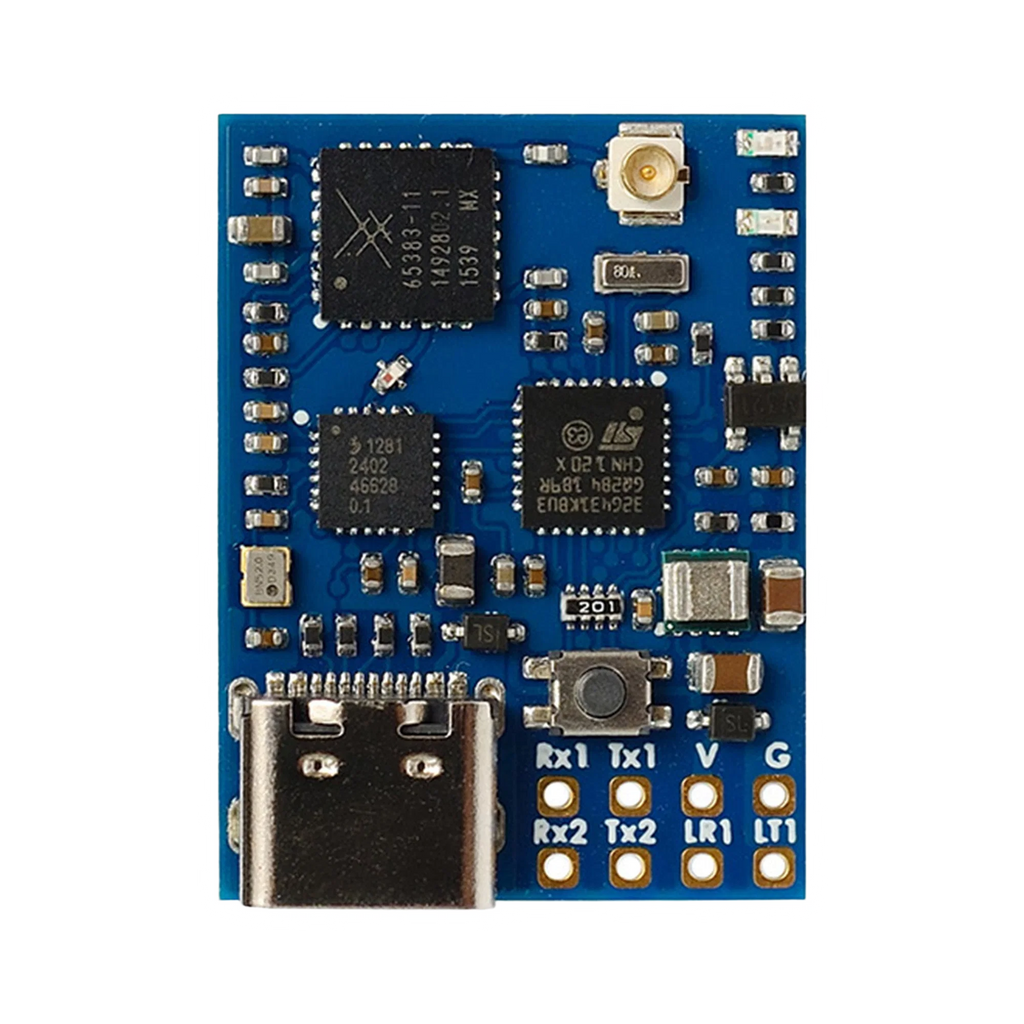

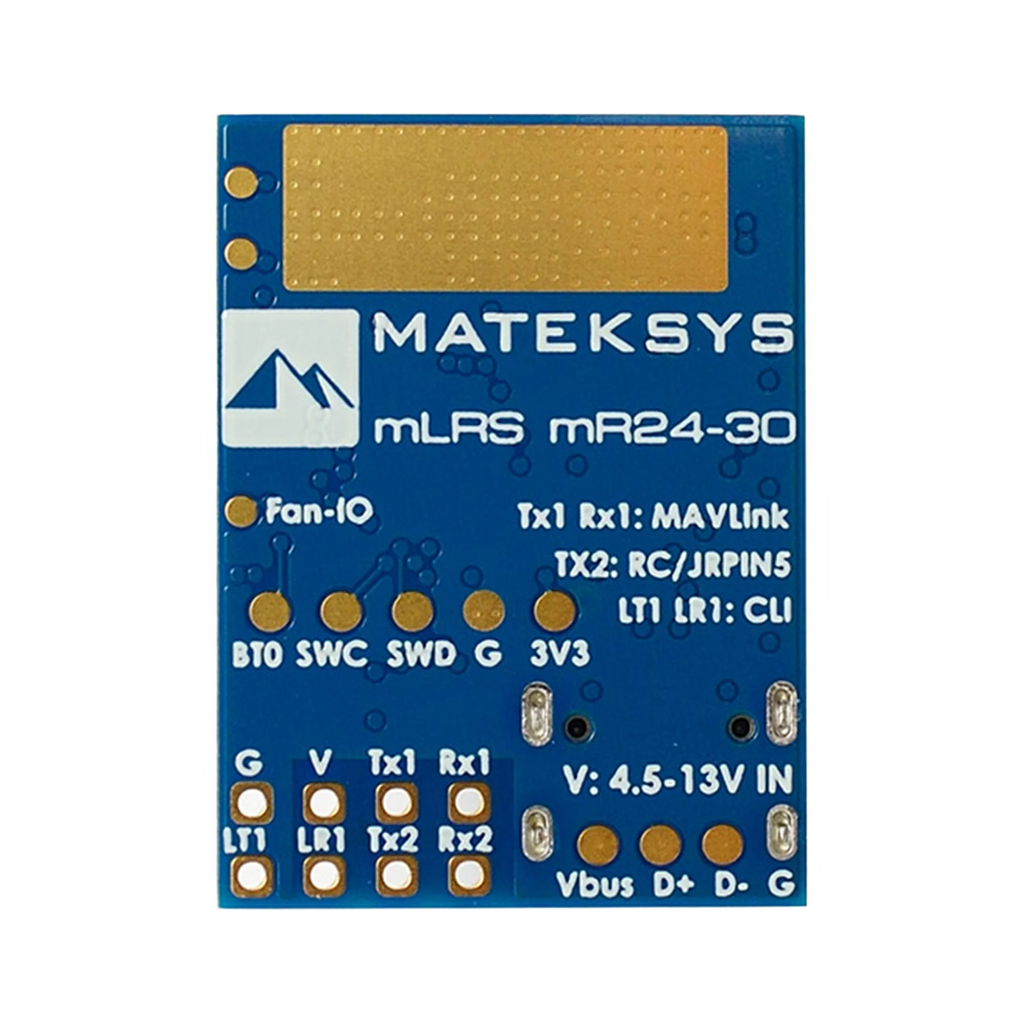

Matek mLRS MAVLink Receiver mR24-30 (2.4ghz)

Are you looking to buy Matek mLRS MAVLink Receiver mR24-30 (2.4ghz) in Australia?

Specifications

• STM32G431KB,  mLRS firmware
• LoRa SX1281 with TCXO
• PA/LNA SKY68383-11
• RF Frequency: 2.4GHz ISM
• RF power: 13dBm(min) / 20dBm / 24dBm / 27dBm / 30dBm(1000mW)
• Antenna connector: IPEX MHF-1
• TX1/RX1: Bi-directional Serial MAVLink
• TX2: RC out(CRSF or SBUS)
• one buttom for DFU mode and Bind
• Power supply: 4.5-13V DC @ “V” Pad
• Power dissipation:  360mA@5V IN(50Hz, 30dbm)
• PCB Size: 28x21mm
• Weight: 4.5g w/ antenna

Includes

• 1x mR24-30
• 1x IPEX MHF1 sleeve dipole antenna. 15cm
• 1x Heatsink 20*20*6mm

LED Status

• [Red flashing 2Hz], not connected to transmitter
• [Green flashing 1Hz], connected to transmitter
• [Red and Green alternately ], Binding mode enabled

Binding

• After powering on,  press the bind button (for ca. 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternatively with ca 2.5 Hz.
• https://github.com/olliw42/mLRS-docu/blob/master/docs/BINDING.md

Firmware

• mLRS https://github.com/olliw42/mLRS/tree/v1.3/firmware/release-matek
• Targets:

  • RX Receiver: rx-matek-mr24-30-g431kb
  • TX module mode: tx-matek-mr24-30-g431kb-default
  • TX SiKtelem mode: tx-matek-mr24-30-g431kb-siktelem
