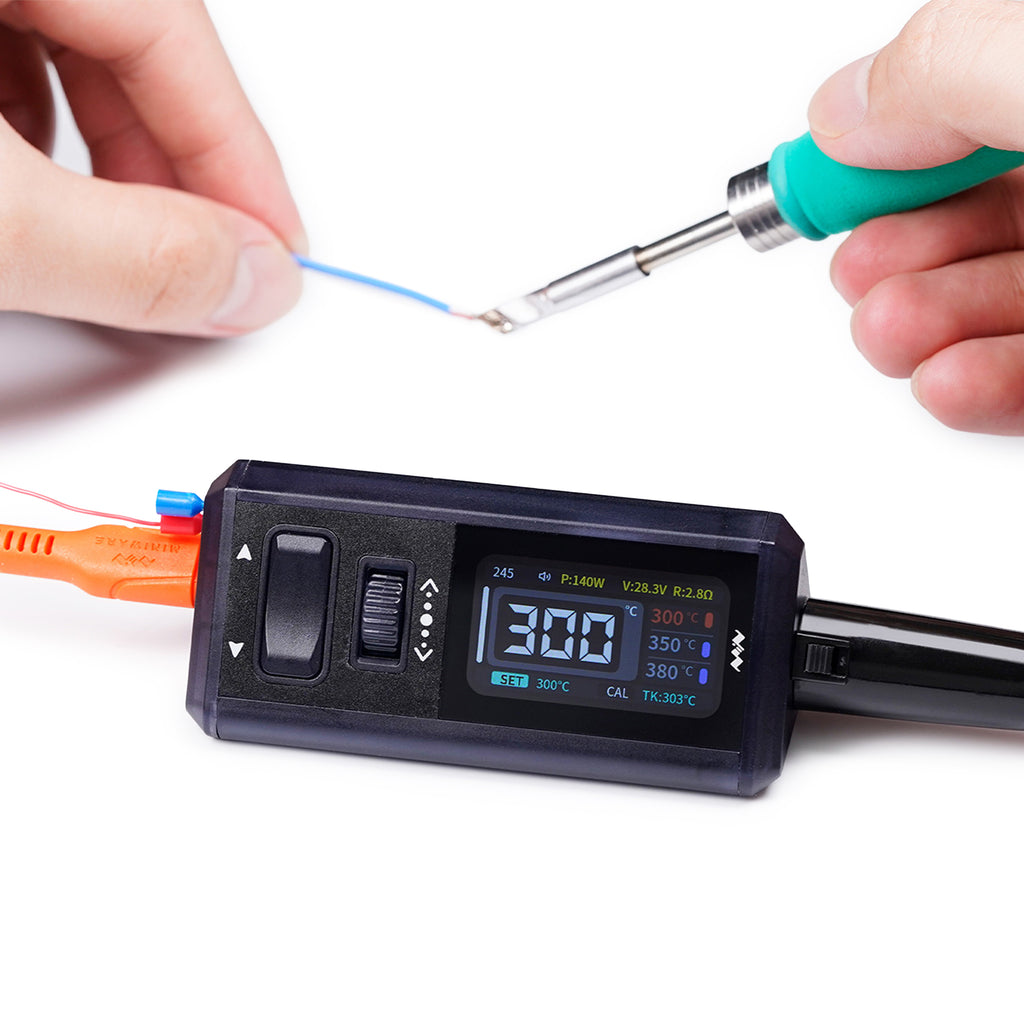

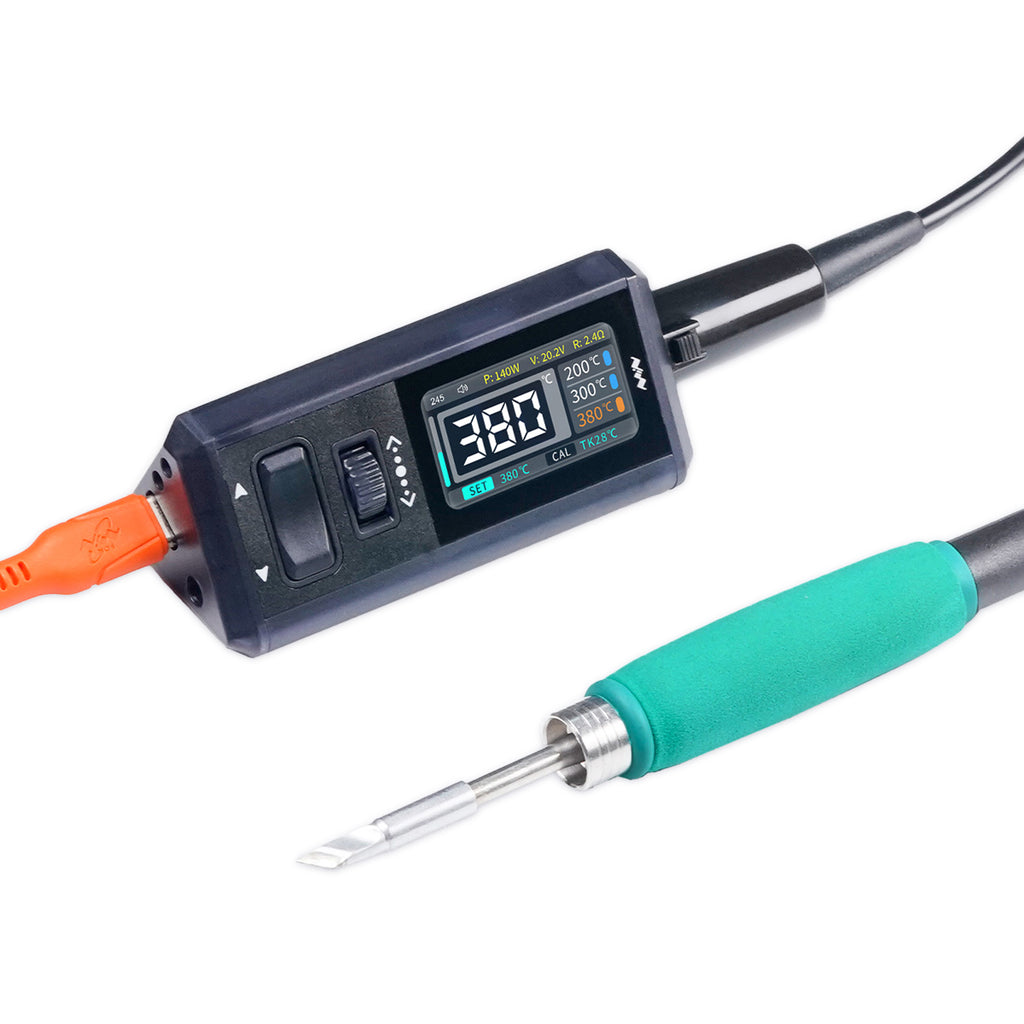

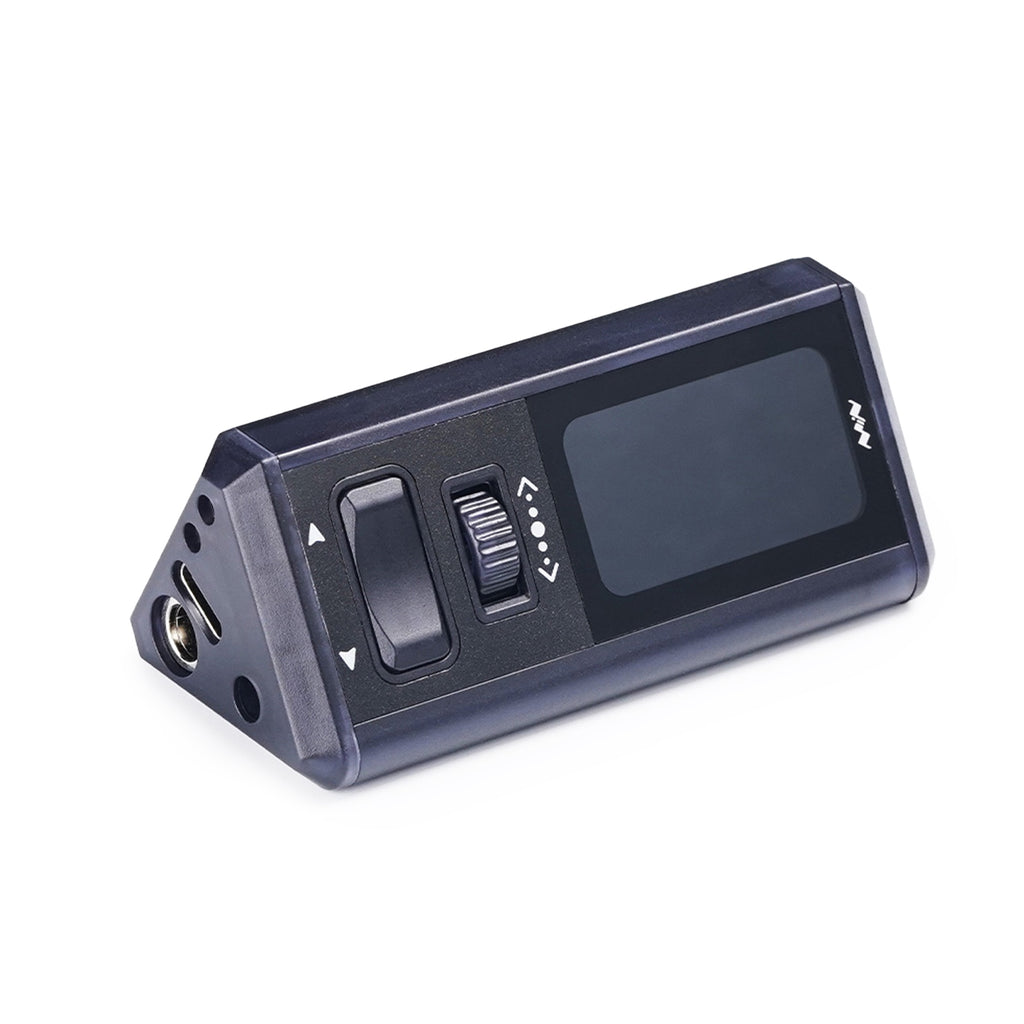

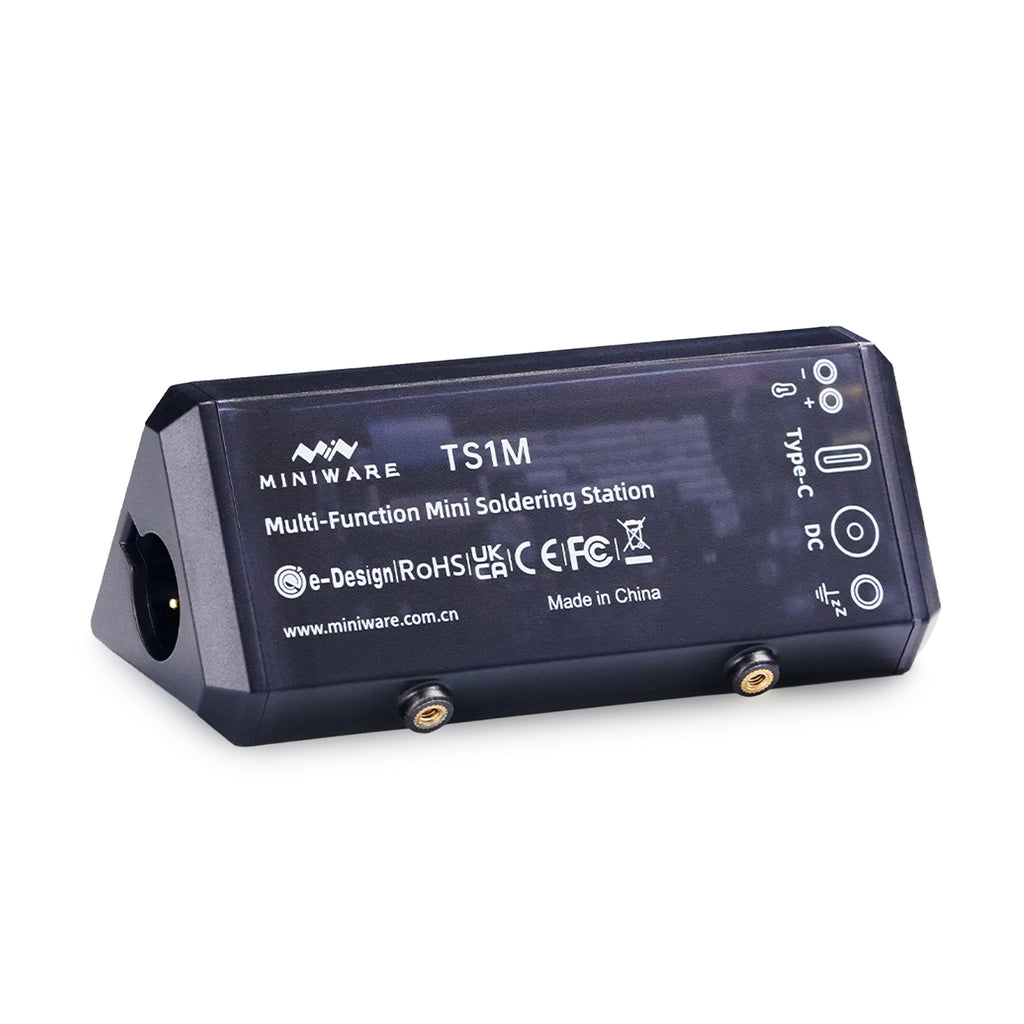

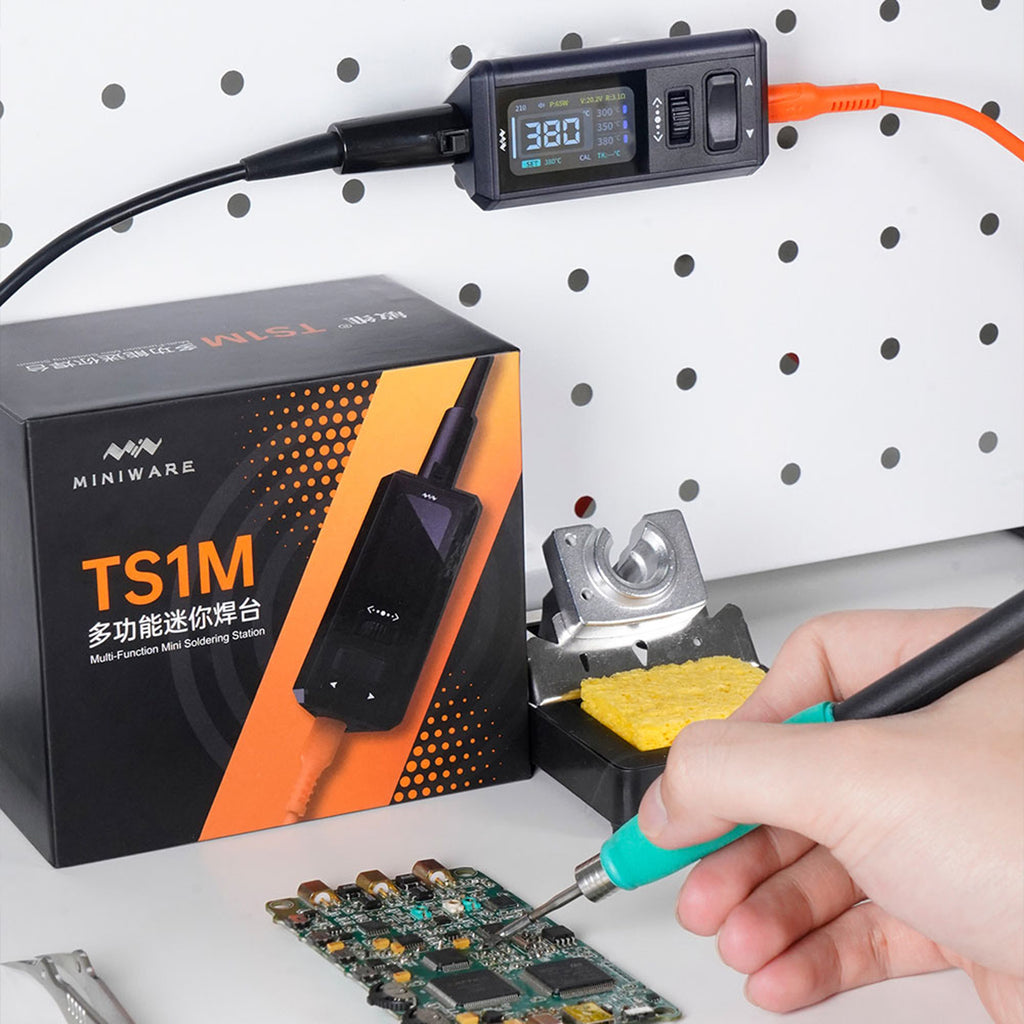

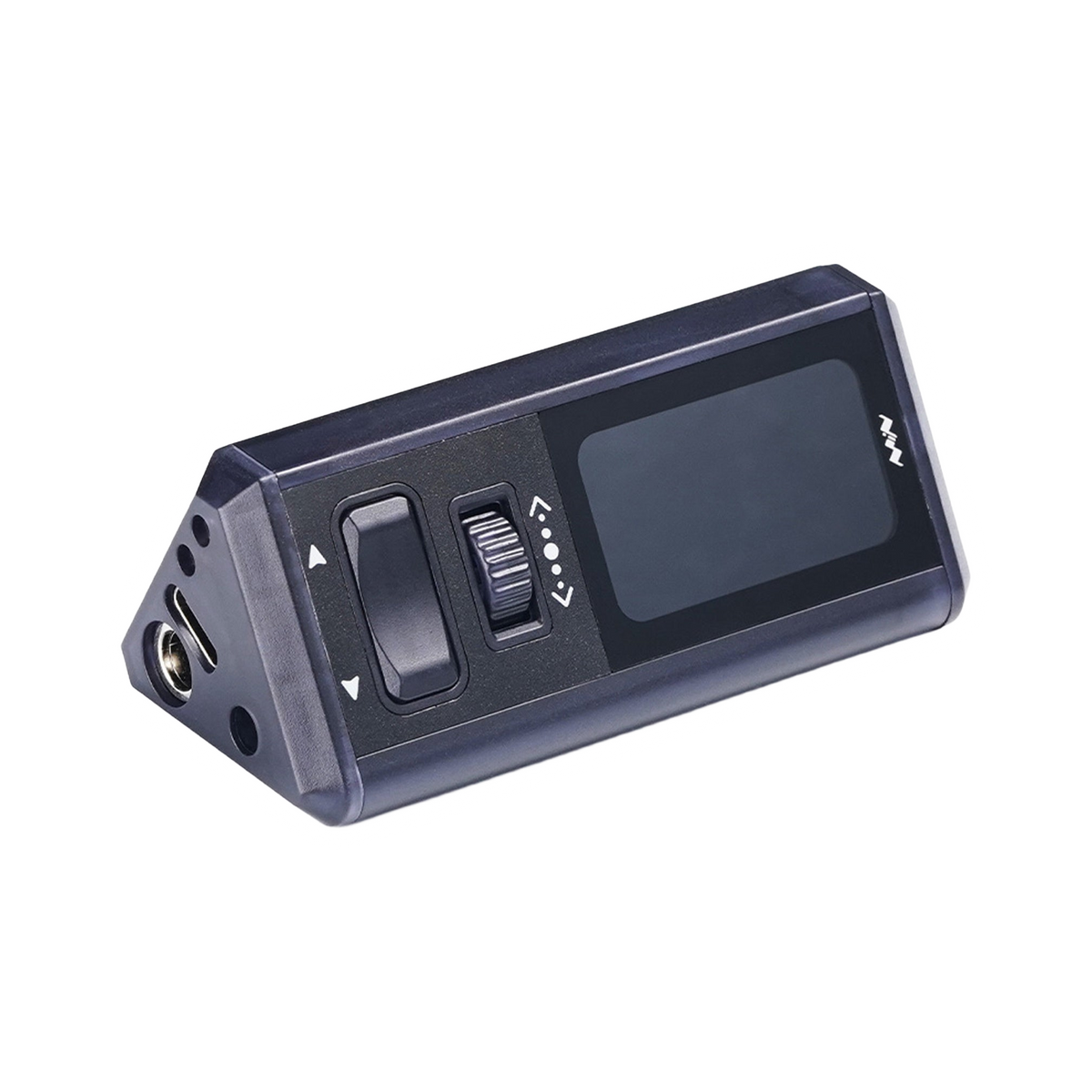

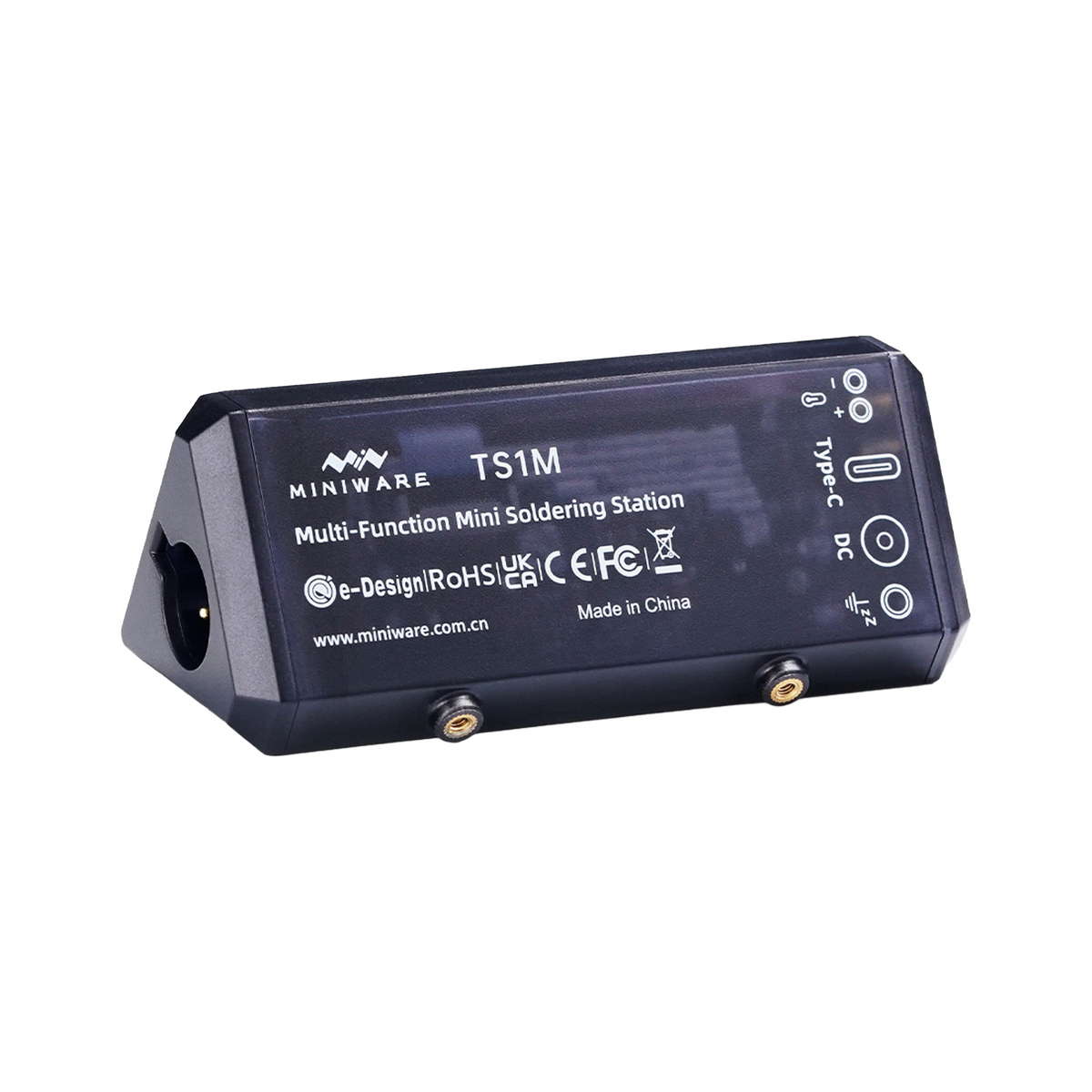

Miniware TS1M Multi-Function Mini Soldering Station

Are you looking to buy Miniware TS1M Multi-Function Mini Soldering Station in Australia?

The TS1M from e-Design combines power, precision, and portability in a sleek, compact design. Its triangular body offers a comfortable grip, while the bright 1.47-inch colour display provides real-time temperature feedback and simple controls. The station supports both PD 3.1 fast-charging and DC power input, delivering up to 200 W for fast heat-up and stable performance. With a wide 100–450 °C temperature range, multi-language interface, firmware updates via PC, and compatibility with 115, 210, 245, and MINIWARE digital handles, the TS1M is built for flexibility and long-term use.

Features

• 200W maximum power, 210 series handle melts solder in just 3 seconds (From room temperature to
  300°C);
• Compatible with PD protocol, supports DC power and LIPO battery;
• Equipped with a temperature measurement function for real-time temperature monitoring;
• Intelligent tip detection prevents faulty tips from overheating;
• Dual interface display: waveform display and pure digital display;
• 210 and 245 series soldering iron handles can be connected to the soldering iron stand via the sleep wire
  (Stand not included, purchase required) to enable the sleep function;
• Compatible with 210 series 245 series and MINIWARE digital handle series;
• Bottom expansion screw port for greater external connectivity options;
• Multi-language display: Chinese, English, Russian, German;
• Pocket-sized for easy storage and portability.

Specifications

Note:

• Reminder: Do not connect DC and USB-C ports simultaneously;

Includes

• 1x TS1M Controllor
• 1x Temperature Sensor Cable
• 1x USB-C to C Power Cable
• 2x Sleep Wire
• 1x Ground Wire
• 1x User Manual
