Are you looking to buy Matek mLRS MAVLink TX Module KIT mR900-30-TX (915mhz) in Australia?
Specifications
- mR900-30
- STM32G431KB, mLRS firmware
- LoRa SX1262 with TCXO
- PA/LNA SKY68383-11
- RF Frequency: 900MHz (868MHz, 915MHz FCC)
- 915MHz RF power: 21dBm(min) / 22dBm / 24dBm / 27dBm / 30dBm(1000mW)
- 868MHz RF power: 24dBm(min) / 24dBm / 24dBm / 27dBm / 30dBm(1000mW)
- Antenna connector: IPEX MHF-1 to SMA

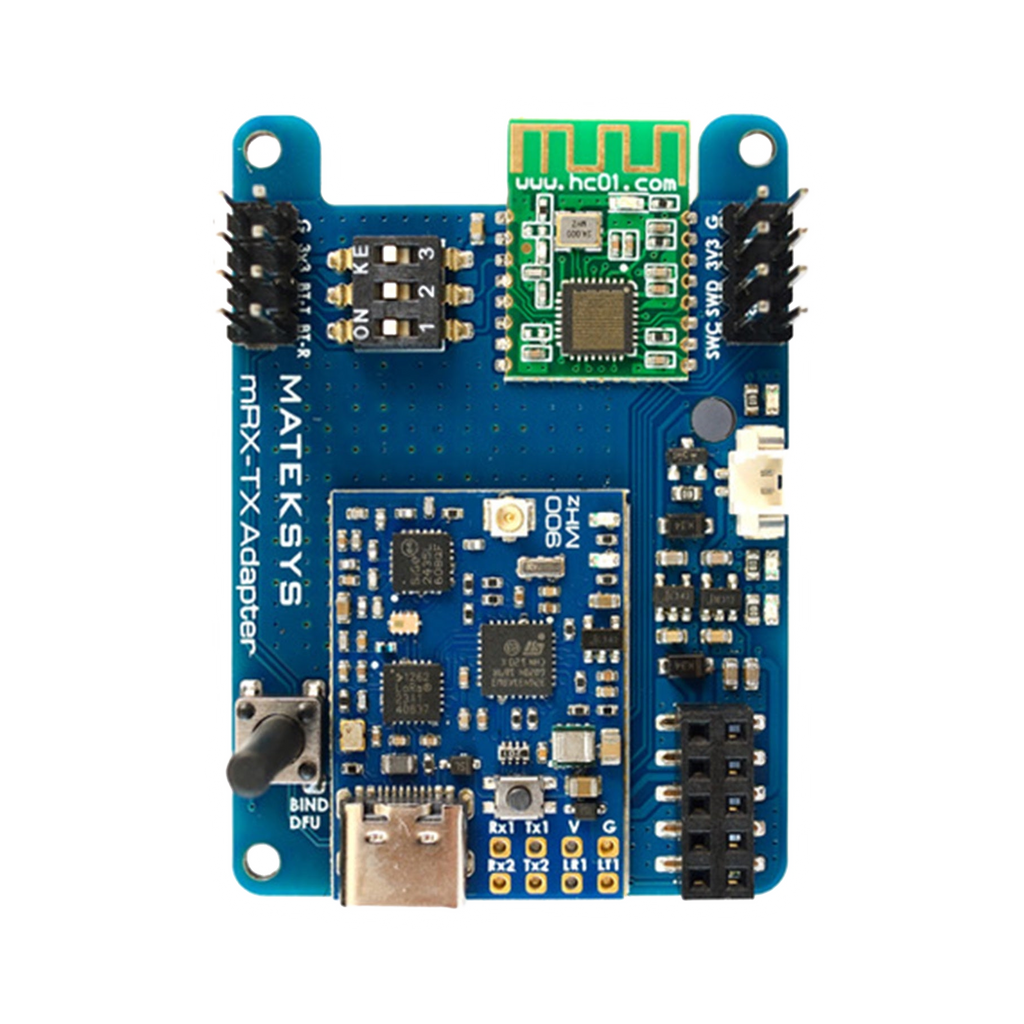

- mRx-Tx Adapter
- Built-in HC-04 Bluetooth module
- Built-in 5V fan controller, running if output power>=500mW
- TX2: RC IN(CRSF)
- one buttom for DFU mode and Bind
- Red and Green LED for mLRS status
- Blue LED for Bluetooth status
- Power supply: 5-13V DC @ JR_PIN3 (VIN)

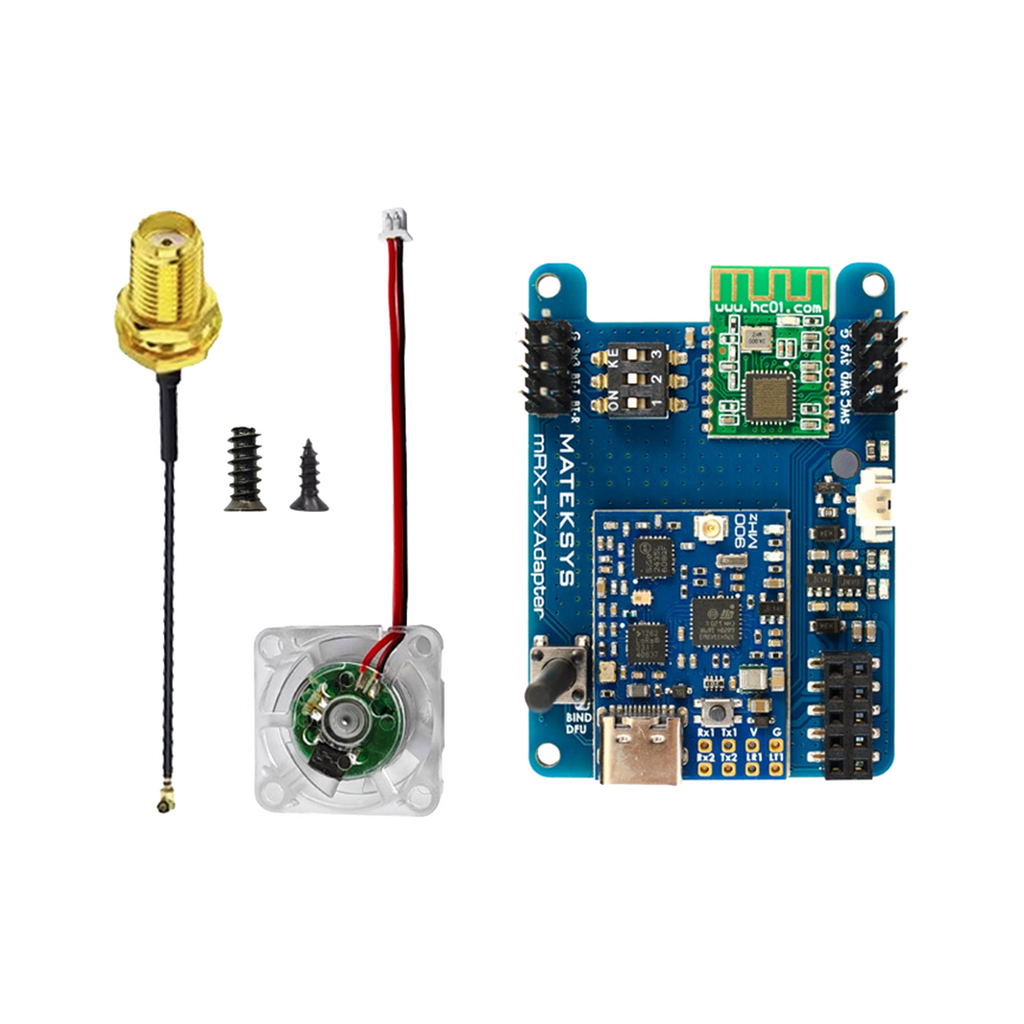

Includes
- 1x mR900-30-TX,
- 1x IPEX MHF1 to SMA adapter cable 5cm,
- 1x 5V Fan (25*25*10mm) and some screws

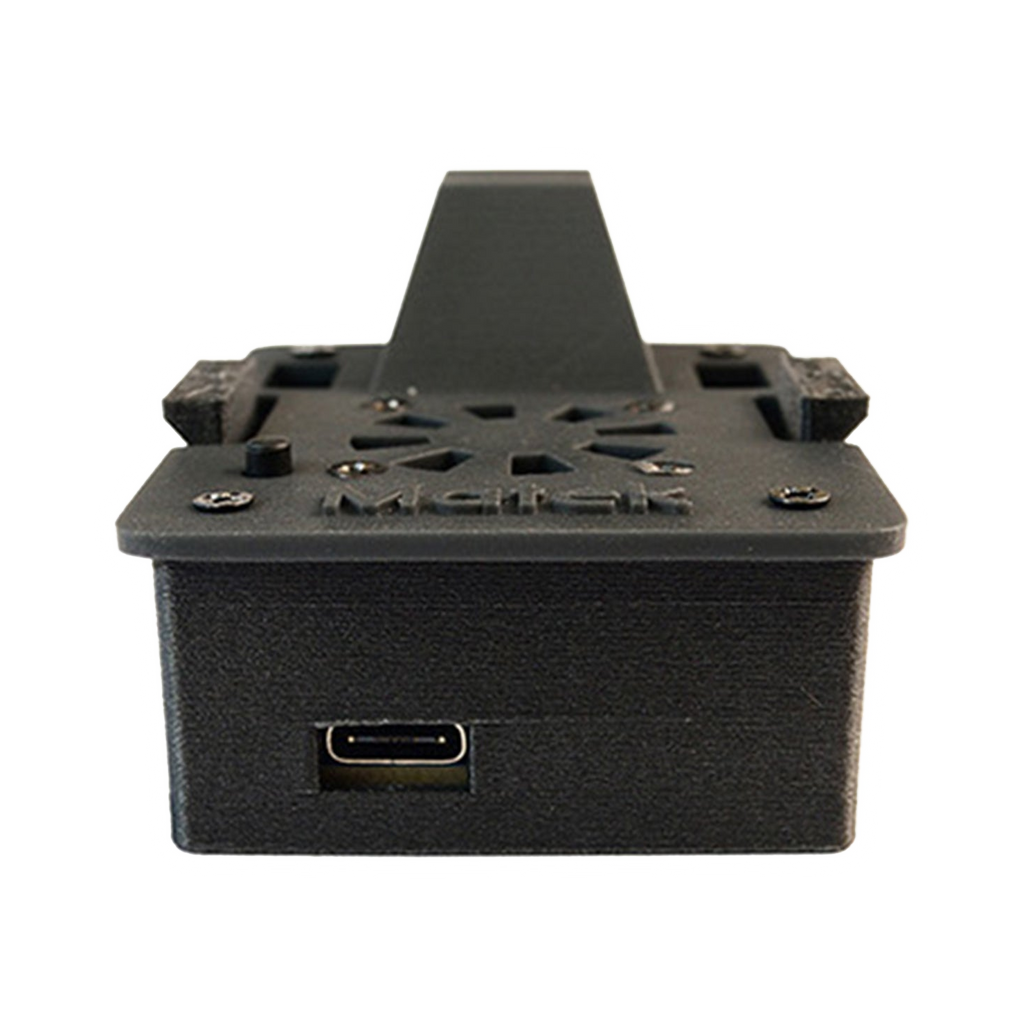

- no SMA antenna & 3D printed Case packed
LED Status
- [Red flashing 2Hz], not connected to transmitter
- [Green flashing 1Hz], connected to transmitter
- [Red and Green alternately ], Binding mode enabled
Binding
- After powering on, press the bind button (for ca. 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternatively with ca 2.5 Hz.
- https://github.com/olliw42/mLRS-docu/blob/master/docs/BINDING.md
Firmware
- mLRS https://github.com/olliw42/mLRS/tree/v1.3/firmware/release-matek
- Target: tx-matek-mr900-30-g431kb-default
