RadioMaster AG02 M5 CNC Gimbals for TX15 & TX16S & Boxer Radio (Black)

Are you looking to buy RadioMaster AG02 M5 CNC Gimbals for TX15 & TX16S & Boxer Radio (Black) in Australia?

The AG02 M5 have been developed for use with M5 Compatible stick ends designed and crafted by Peter Herr from RC Technik. A large range of custom M5 options are available from the RC Technik store to allow you to setup your stick ends to suit your needs.

This version retains the proven AG02 mechanical design while adopting an M5 stick thread, expanding compatibility with a wider range of third-party and custom stick options.

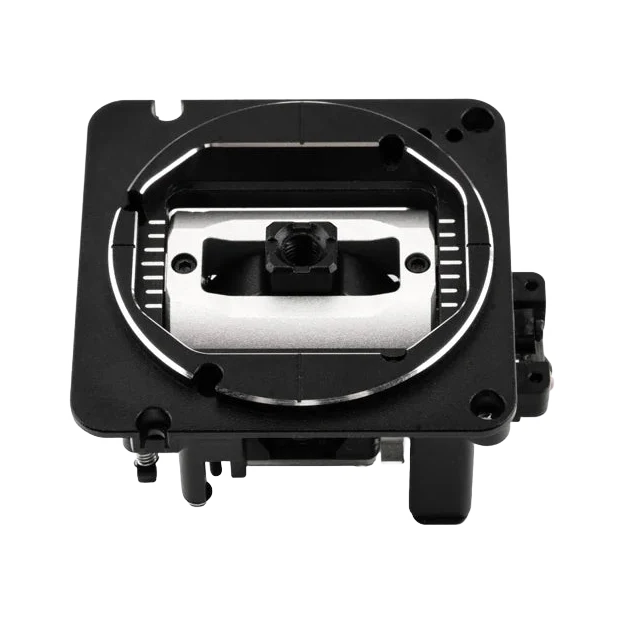

The gimbal assembly is fully machined from aluminium and engineered to reduce rotational inertia by 21.6%, improving stick response and control precision. Independent vertical and horizontal travel adjustments allow pilots to fine-tune throw length and feel without compromising mechanical stability.

Low-noise, high-resolution Hall effect sensors provide fast, accurate input, while quad precision bearings ensure smooth, consistent movement under all operating conditions.

This M5 edition is finished in black anodised aluminium for durability and a clean, professional appearance.

Compatibility

• TX15 Series Radio
• TX16S Series Radio
• Boxer Series Radio

Specifications

• Item: AG02 M5 CNC Hall Gimbal
• Sensor Type: Hall Analogue
• Operating Voltage: DC 3.3V
• X-Axis Travel Adjustment Range: 30° – 56°
• Y-Axis Travel Adjustment Range: 38° – 54°
• Throttle Mode Switch (Mode 1/2) Without Disassembly: Supported
• Spring Tension Adjustment Without Disassembly: Supported
• Quad Ball Bearings: Yes
• Operating Temperature Range: -20°C to +85°C
• Dimensions (Excluding Stick Ends): 54.6 × 53 × 33.3 mm
• Weight: 67.9 g ± 1 g (per unit)
• Gimbal Sticks: M5

Includes

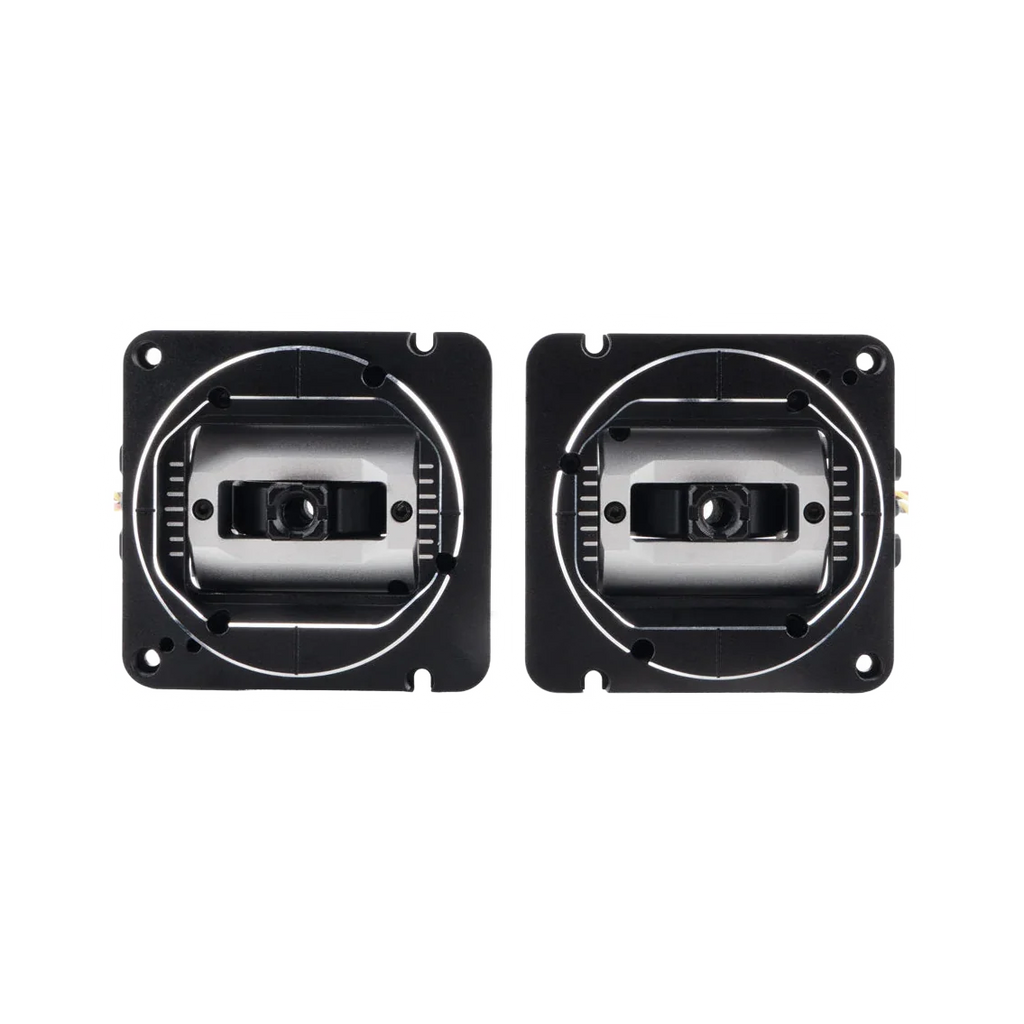

• 2 x AG02 M5 CNC Hall Gimbals
• 4 x Low Tension Springs
• 2 x GH1.25-SH1.25 adapter board (Boxer/TX16sMKII)
• 8 x PB2.3*10 Mounting Screws
• 2 x Hex Wrench
• 1 x User Manual
