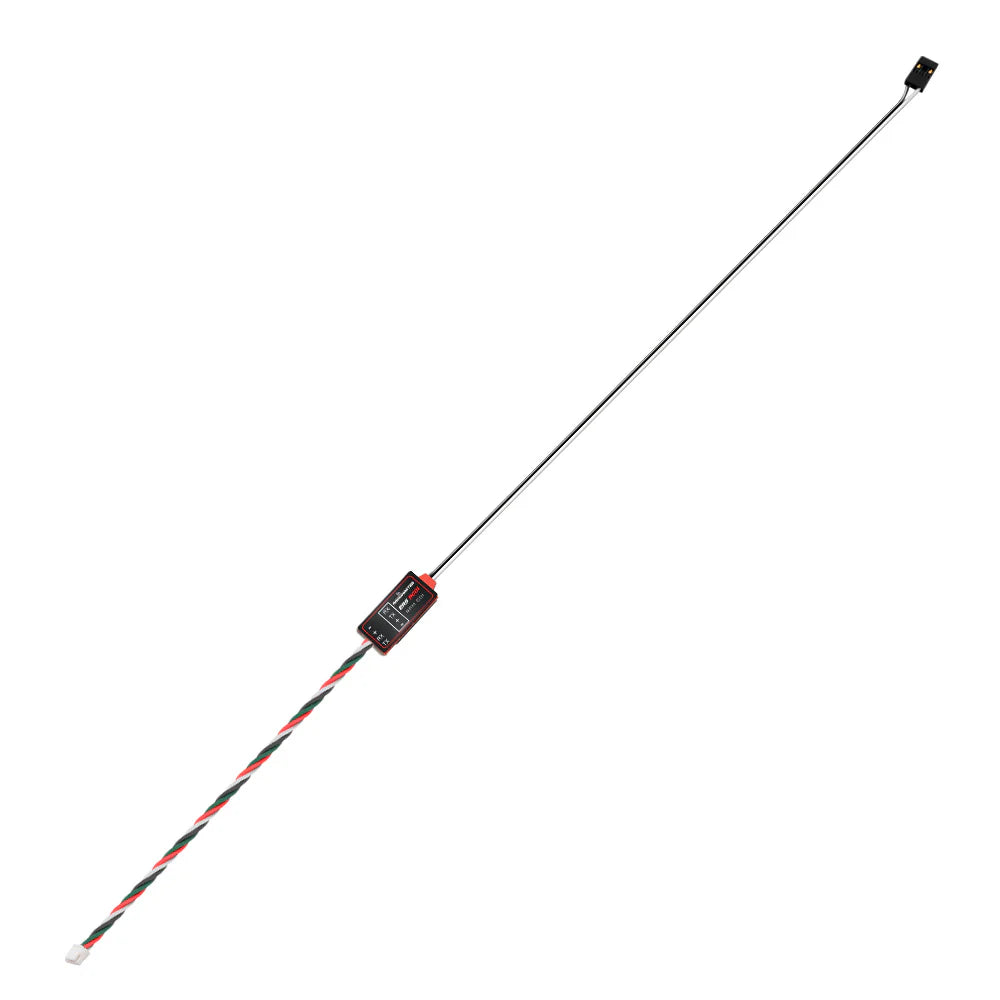

RadioMaster ERS-RC01 CDI Gas Engine Tachometer for ELRS PWM Receivers

Name: RadioMaster ERS-RC01 CDI Gas Engine Tachometer for ELRS PWM Receivers
Brand: RadioMaster
SKU: 34496
Price: 29.95 AUD
Availability: OutOfStock

$29.95 AUD

GST included Shipping calculated at checkout.

Price match

Out of stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup not available

1/80 Somersby Falls Road, Somersby NSW

Get directions

No stock currently available

Product details

SKU: 34496

Shipping Weight: 30g

W/H: W-02-E-07

Categories: Drone RC RX Receivers, ELRS 2.4GHz Receivers, ELRS Express LRS Receivers & Modules, FPV Coming Soon, Radio Gear, RadioMaster

Tags: 2.4ghz, ELRS, Receiver

Why buy from Phaser FPV?

Dependable Phaser started in 2014. Long reputable history and 5 star reviews.
Fast dispatch All stock is on the shelf in our Somersby warehouse. In-stock orders placed before 1pm Sydney time on a business day ship the same day. Shipping details.
Transparent stock If it says in stock, we ship today. If it's sold out but more is on the way and we know the ETA, it's on the product page, so you know what to expect before you order.
Showroom and pickup Walk into our Somersby showroom, an hour north of Sydney, talk to the team and see it before you buy, or order online and collect from the front counter.
Support after you buy Something won't bind, connect or work? We troubleshoot it with you first. Repair, soldering and 3D printer servicing are available when needed, quoted before any work starts. Returns and warranty.
Price match Found it cheaper at an Australian store? Use the Price match button on the product and we'll take a look.
One warehouse, three stores The same crew runs Phaser FPV, Central Coast Coffee and Tradiemods from one fast, efficient warehouse, with over a decade of online retail behind it.
3D printing and design Need a custom part? Our sister site Phaser3D prints from your file and can design to print.
Experience Our staff fly, build and use this gear, and will help you pick parts that work together so you don't buy twice. Not sure what to buy? Message us on live chat, or call us and leave a voicemail; we'll call you back as soon as we can.
Community Large Facebook community for like-minded pilots, or view our Facebook page.
GST registered If your business is registered, you claim the GST back and save 10%. Some small online stores are not registered, so there's nothing to claim.

Product description

Are you looking to buy RadioMaster ERS-RC01 CDI Gas Engine Tachometer for ELRS PWM Receivers in Australia?

The ERS-RC01 Gasoline Engine Tachometer measures RPM by connecting directly to your engine's CDI speed output. The sensor accurately detects engine speed, transmits the data to a compatible ExpressLRS receiver through the CRSF interface, and then sends it back to your EdgeTX radio for real-time monitoring. Ideal for any application requiring accurate RPM feedback.

As part of the ERS sensor family, the ERS-RC01 also supports pass-through expansion, allowing easy daisy-chaining with additional telemetry modules.

Features

Accurate Engine RPM: Monitors gasoline engine speed in real time with precision.
ExpressLRS Integration: Sends RPM data directly to compatible ExpressLRS receivers via the CRSF interface.
Versatile Applications: Ideal for any application requiring accurate RPM feedback.
Compact & Lightweight: Easy to install without adding unnecessary weight.
Plug-and-Play: Simple connection to the CDI output for fast setup.

Specifications

Item: ERS-RC01 RPM-CDI Sensor
Operating voltage: 5–8.4V
Operating current: 8mA

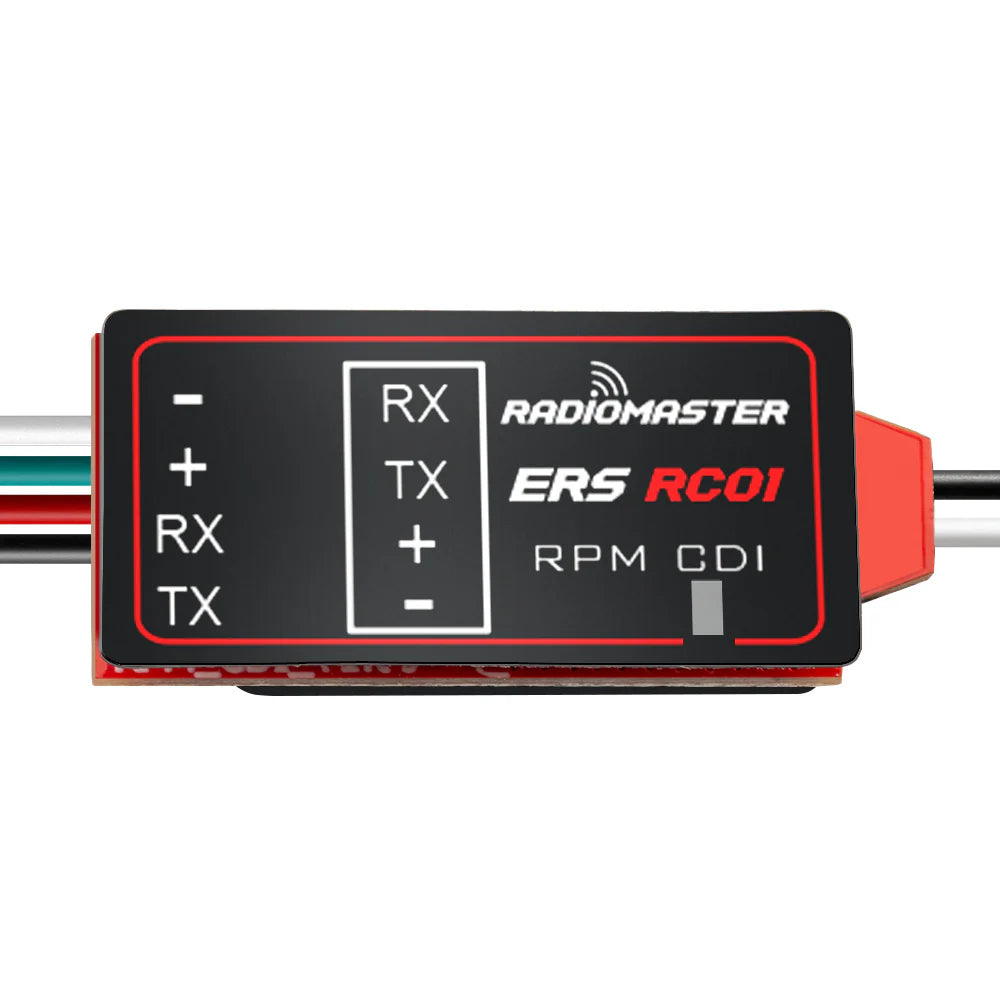

Connector type: 3 pin
Supported: CDI gasoline ignition
Range: 200–300, 000RPM
Accuracy: ±0.1%
Temperature range: –10 ℃ to +85 ℃

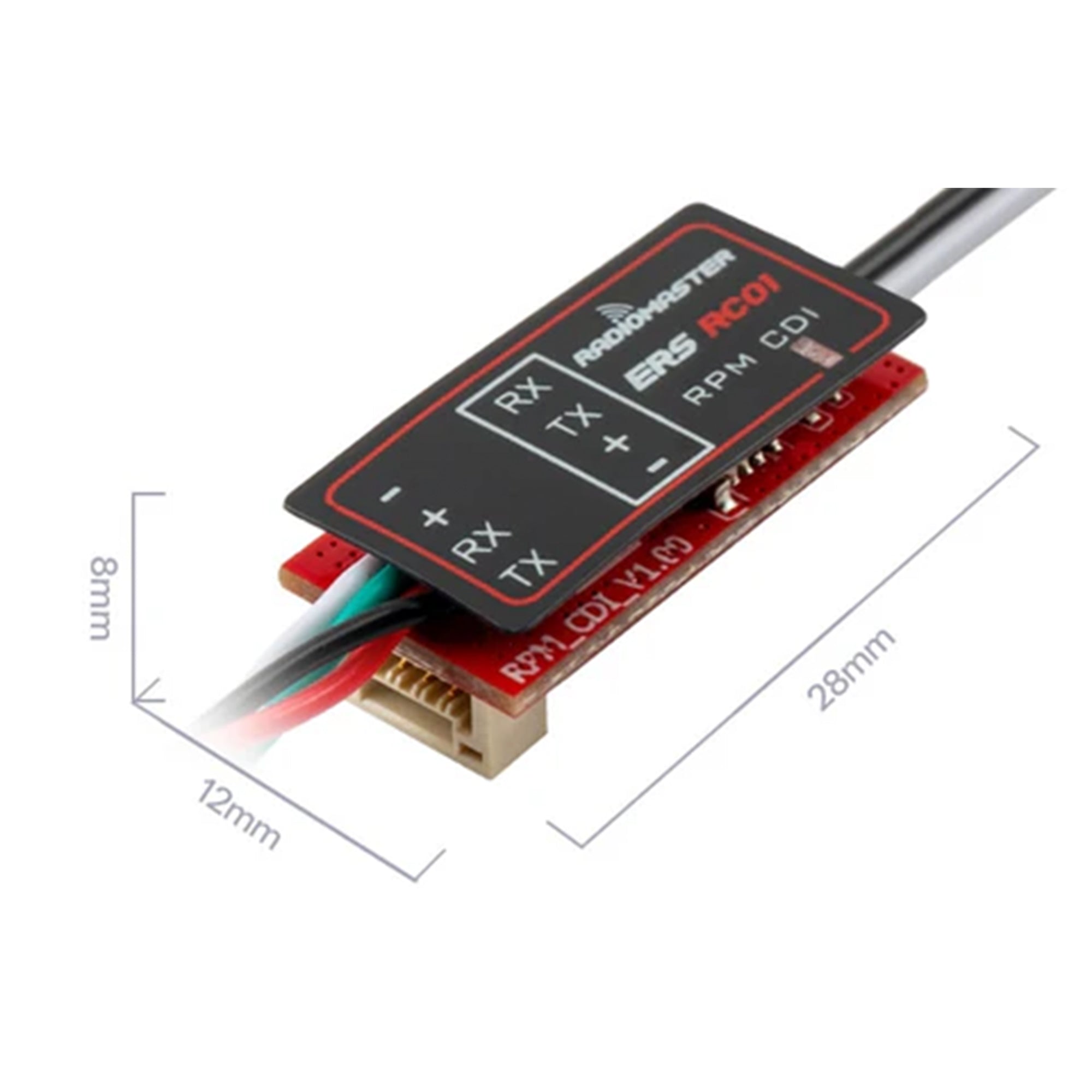

Size: 28 × 12 × 8mm

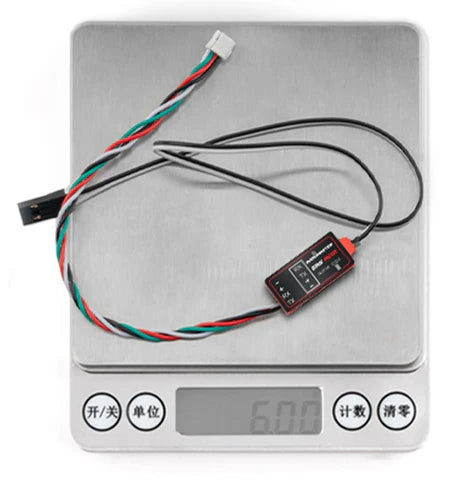

Weight: 6.0g

Using Sensors with Non-Plug-and-Play PWM ExpressLRS Receivers

Most PWM ExpressLRS receivers are fully compatible; those without a dedicated UART port require reconfiguration to support external sensors (e.g., for telemetry). To enable this, reassign two PWM output pins as a serial UART—one for TX and one for RX—via the receiver's Web UI (accessed by putting the receiver into WiFi mode) or via the ExpressLRS LUA script. This enables sensor connectivity while preserving the remaining PWM channels for servos or ESCs.
