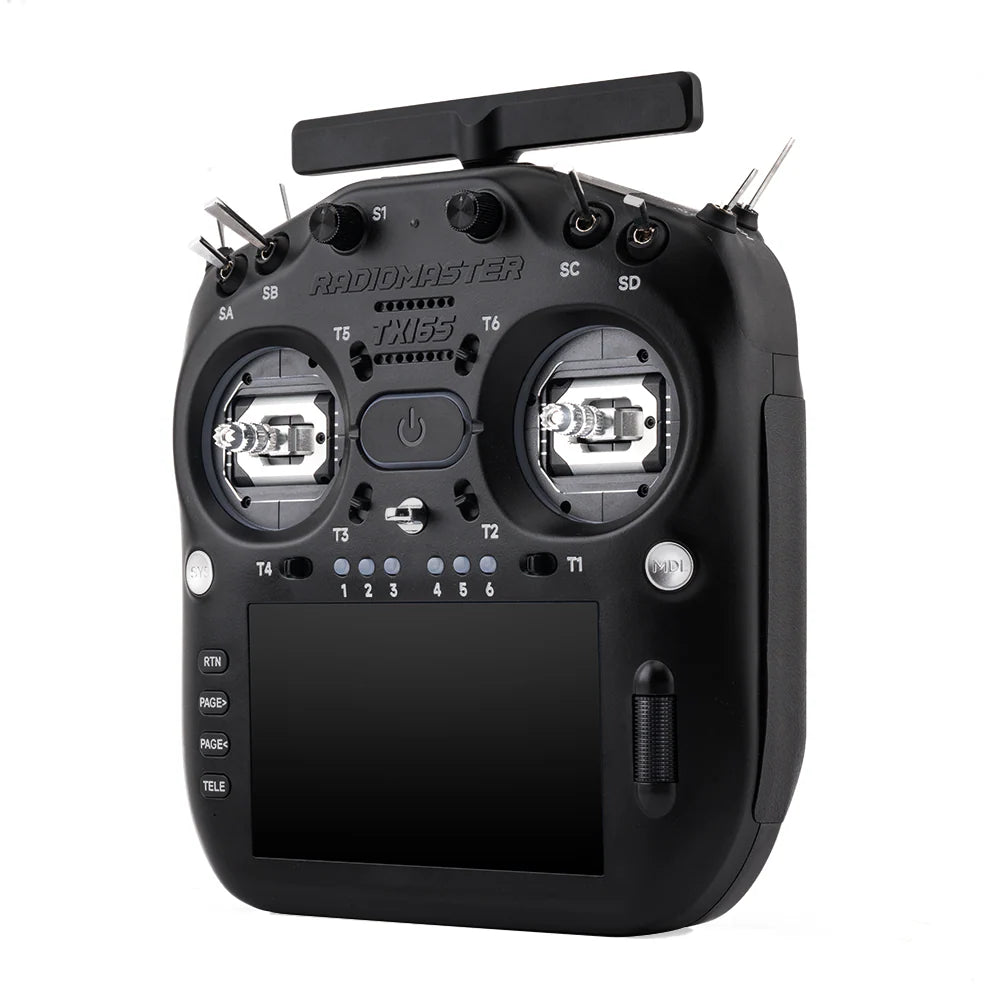

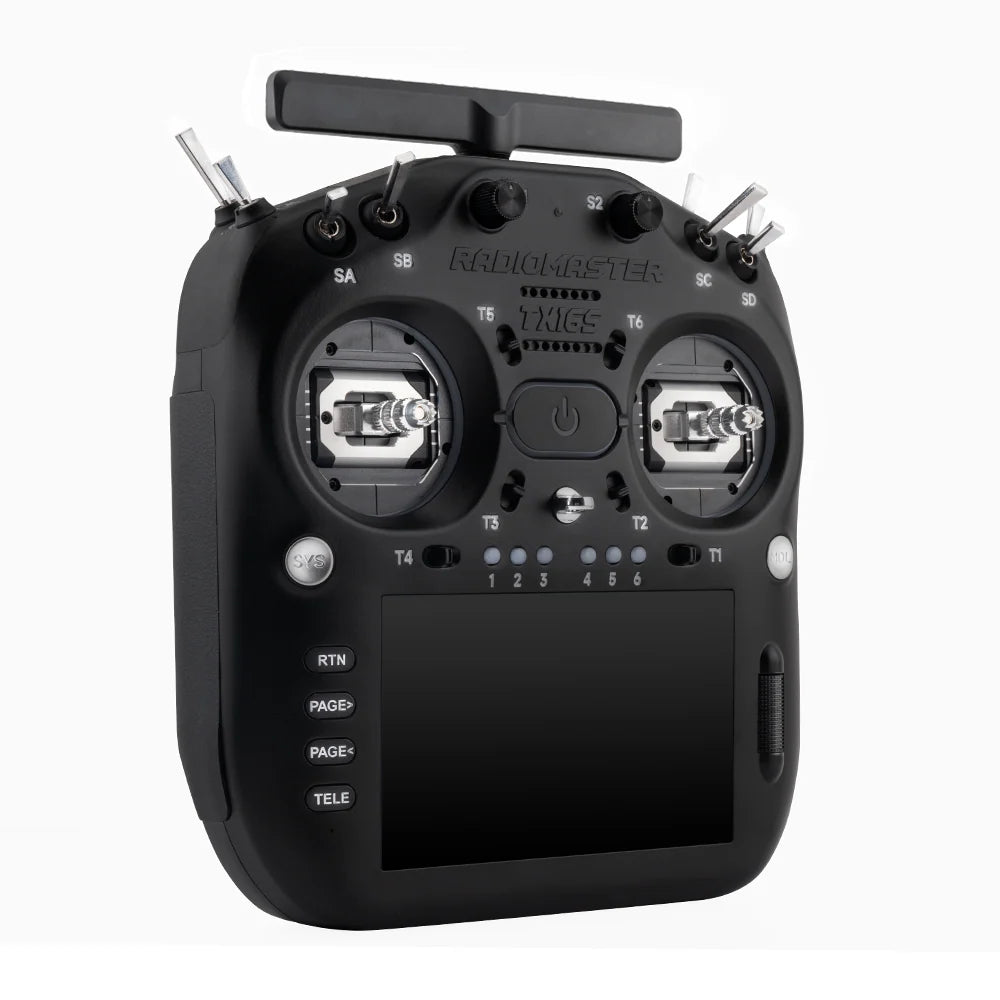

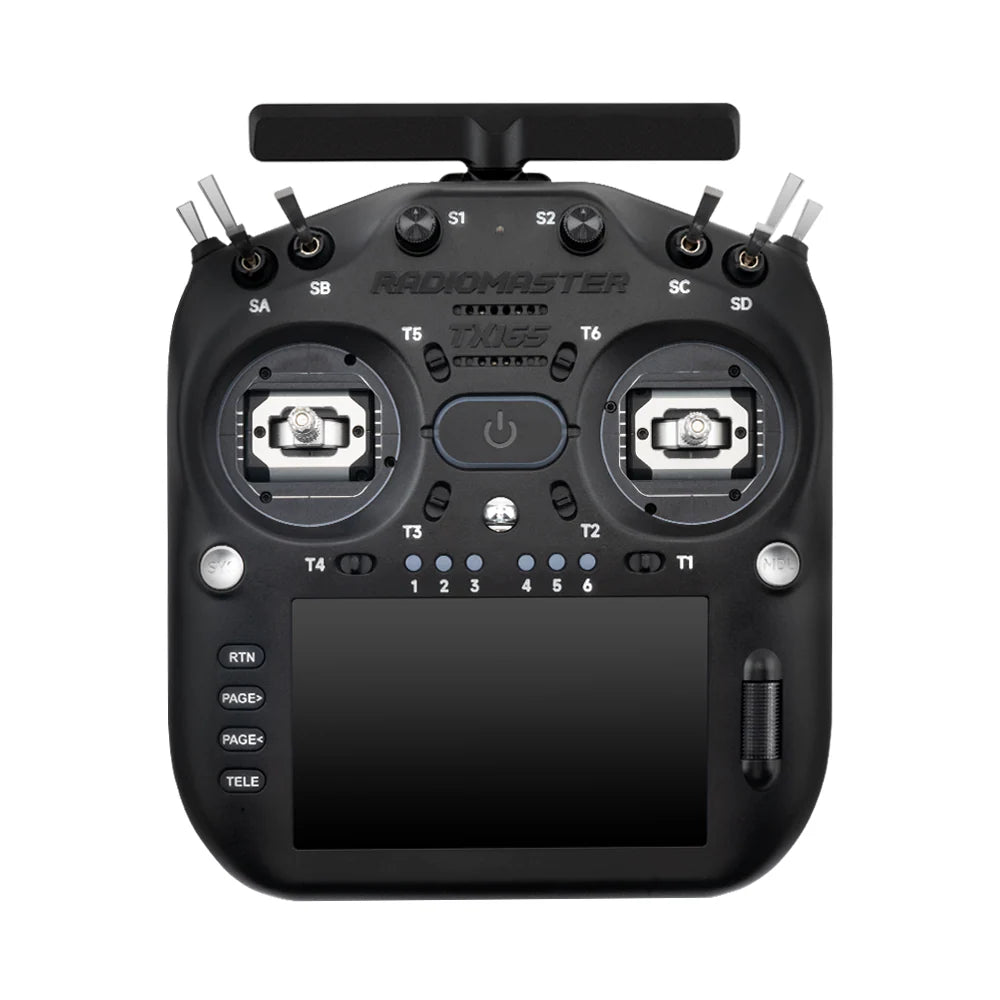

RadioMaster TX16S MK3 Radio Transmitter (Batteries Not Included)

Name: RadioMaster TX16S MK3 Radio Transmitter (Batteries Not Included)
Rating: 5.00 (1 reviews)

$349.99 AUD $399.00 AUD

Save 12% GST included Shipping calculated at checkout.

Price match

Out of stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup not available

1/80 Somersby Falls Road, Somersby NSW

Get directions

No stock currently available

Product details

SKU: 34409

Shipping Weight: 1100g

W/H: V-04-A

Categories: Drone Radio Transmitters, ELRS Express LRS Receivers & Modules, FPV Coming Soon, FPV Recent Stock Arrivals, New FPV Products, Radio Gear, RadioMaster

Tags: 2.4ghz, ELRS, Full-size Radio, Multi Protocol, Radio Transmitter

Why buy from Phaser FPV?

Dependable Phaser started in 2014. Long reputable history and 5 star reviews.
Fast dispatch All stock is on the shelf in our Somersby warehouse. In-stock orders placed before 1pm Sydney time on a business day ship the same day. Shipping details.
Transparent stock If it says in stock, we ship today. If it's sold out but more is on the way and we know the ETA, it's on the product page, so you know what to expect before you order.
Showroom and pickup Walk into our Somersby showroom, an hour north of Sydney, talk to the team and see it before you buy, or order online and collect from the front counter.
Support after you buy Something won't bind, connect or work? We troubleshoot it with you first. Repair, soldering and 3D printer servicing are available when needed, quoted before any work starts. Returns and warranty.
Price match Found it cheaper at an Australian store? Use the Price match button on the product and we'll take a look.
One warehouse, three stores The same crew runs Phaser FPV, Central Coast Coffee and Tradiemods from one fast, efficient warehouse, with over a decade of online retail behind it.
3D printing and design Need a custom part? Our sister site Phaser3D prints from your file and can design to print.
Experience Our staff fly, build and use this gear, and will help you pick parts that work together so you don't buy twice. Not sure what to buy? Message us on live chat, or call us and leave a voicemail; we'll call you back as soon as we can.
Community Large Facebook community for like-minded pilots, or view our Facebook page.
GST registered If your business is registered, you claim the GST back and save 10%. Some small online stores are not registered, so there's nothing to claim.

#1

RadioMaster 5000mah 2S Li-ion Battery (Fits TX16S/Boxer/TX12 MKII) [DG] - transparent product view 1

RadioMaster 5000mAh 7.4V 2S XT30 Li-ion Battery (Fits TX16S/Boxer/TX12 MKII) [DG] $49.80 In stock #2

Radiomaster 6200mAh 2S LiPo Battery (Fits Boxer/TX16S) [DG] dark mode product view 1

RadioMaster 6200mAh 7.4V 2S XT30 LiPo Battery (Fits Boxer/TX16S) [DG] $59.80 In stock #3

GNB 6500mAh 7.4V 2S 5C XT30 LiPo Battery (Fits Boxer/TX16S) [DG] $59.00 Out of stock #4

Voscel 18650 3200mAh 10C 3.7V 11.84Wh Battery (2 pack) [DG] — dark-mode product image 1

Voscel 18650 3200mAh 3.7V 10C Li-ion Battery (2 Pack) [DG] $30.95 In stock #5

Vapcell INR18650 N40 4000mah 10A (2 Pack) [DG] $41.95 In stock #6

Vapcell INR18650 F38 3800mah 10A (2 Pack) [DG] $38.95 In stock

Product description

Are you looking to buy RadioMaster TX16S MK3 Radio Transmitter (Batteries Not Included) in Australia?

RadioMaster continues to lead open-source RC innovation, building on the trusted global legacy of the TX16S series. The TX16S MK3 elevates performance, precision, and ergonomics to new levels.

BATTERY OPTIONS

2x 18650 batteries (use these with the included battery tray)
RadioMaster 5000mah 2S Li-ion Battery
Radiomaster 6200mAh 2S LiPo Battery
GNB 6500mAh 2S LiPo Battery

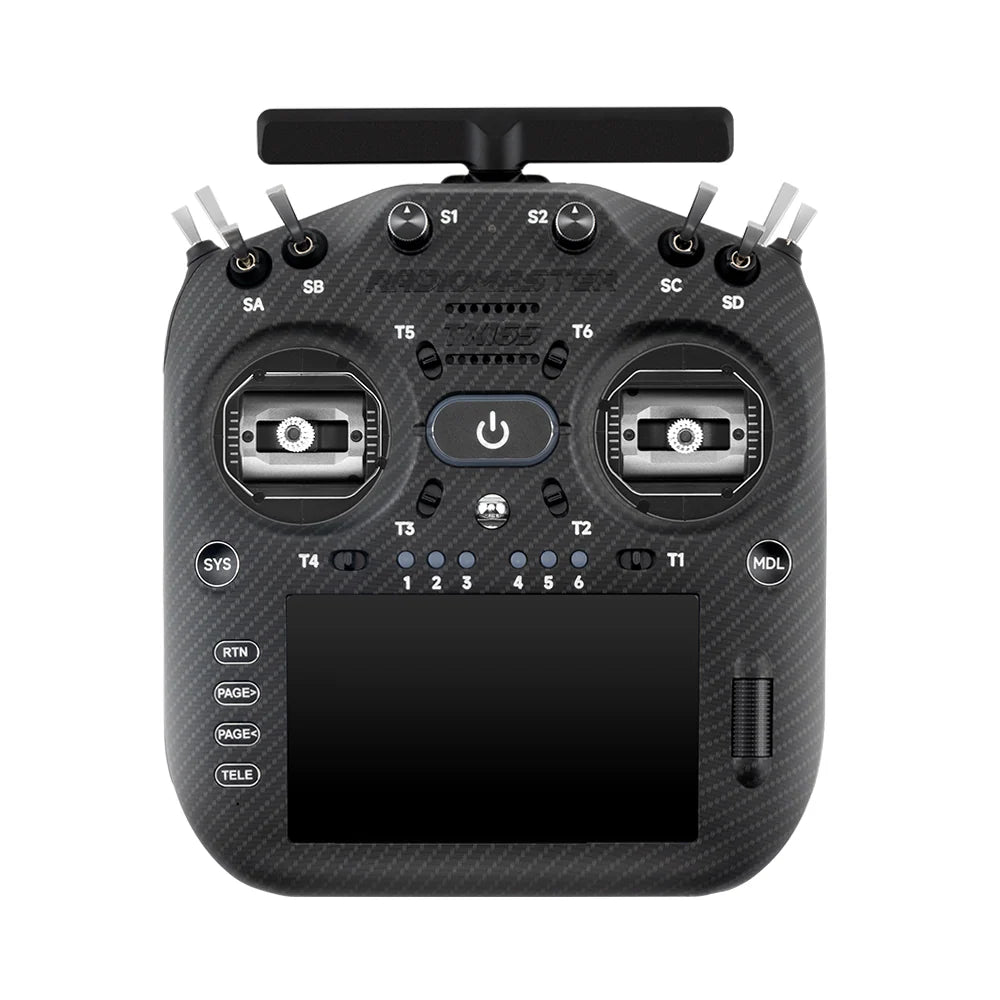

Looking for something even more refined? Check out the TX16S MK3 MAX, which features industry-leading AG02 CNC full aluminium Hall-Effect gimbals, aluminium CNC buttons and knobs, and a carbon-look case for a truly premium experience.

Features

High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power.
Touchscreen Display: 5-inch, 800 x 480 IPS touchscreen with vivid colours and sharp detail.
Precision Gimbals: V6 quad-bearing Hall sensor gimbals (AG02 compatible)
RGB Programmable Gimbal Light Rings: LUA-controlled, customisable LED gimbal lighting.
Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz
Smart Balance Battery Circuit: Maximises battery efficiency and longevity for better battery life.
Powerful Cooling System: Low-noise, high-output fans and an aluminium heat sink keep your radio cool, even on the hottest days.
Digital audio: Greater sound quality and reduced interference.
Dual Foldable Antennas: Compact and easy to store without compromising signal strength.
Built-in Microphone: For future feature expansion.
Automatic back light adjustment: Makes the screen easier to read indoors and out.
Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
Removable shoulder switch panels: Customise your setup with modular switch panels.

Specifications

Item: TX16S MK3 Radio Controller

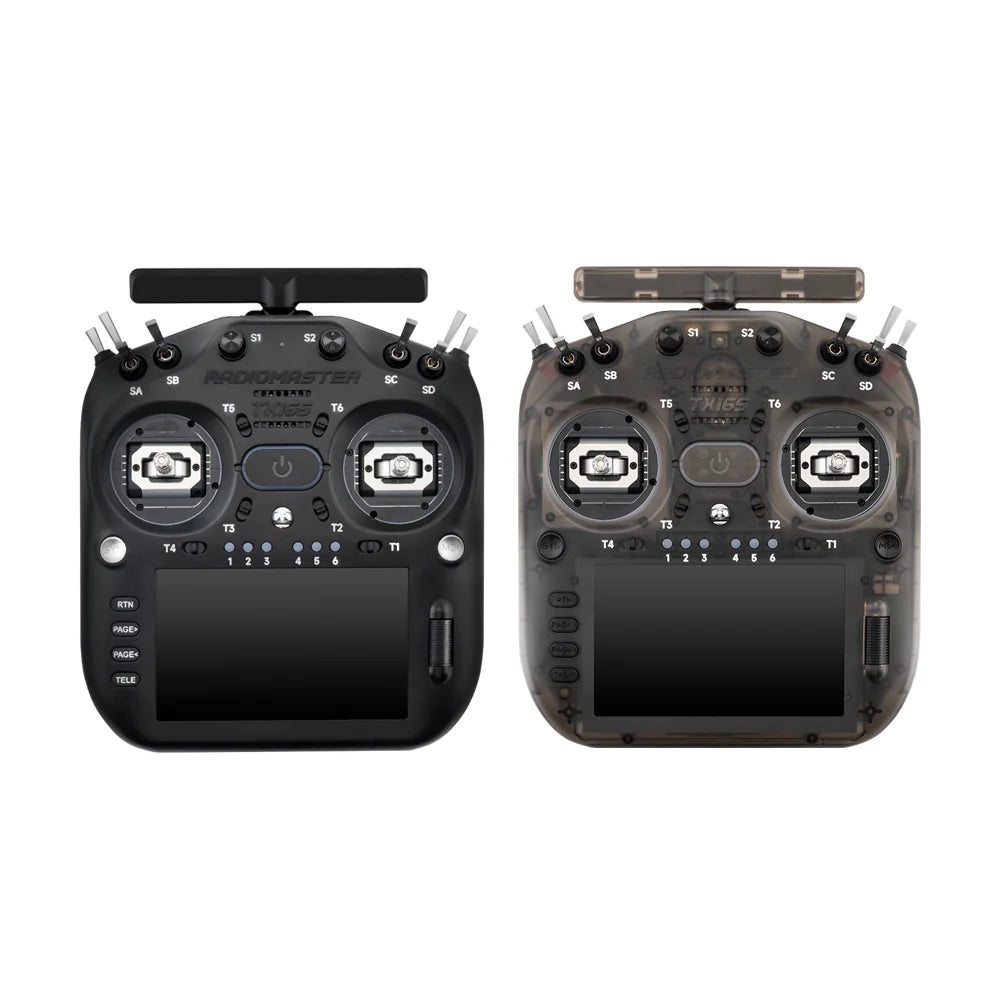

Colour: Black / Transparent Charcoal
Voltage Range: 6.6 - 8.4V DC
Working Current: 1.10A (at max RF output power)
Radio Firmware: EdgeTX (require 3.0.0 or higher)
Built-in RF Module: ExpressLRS 2 x LR1121
Frequency: ISM 2.4GHz and Sub-G 900MHz
Number of Channels: Up to 16ch
Gimbal: V6 Hall sensor gimbals (standard)

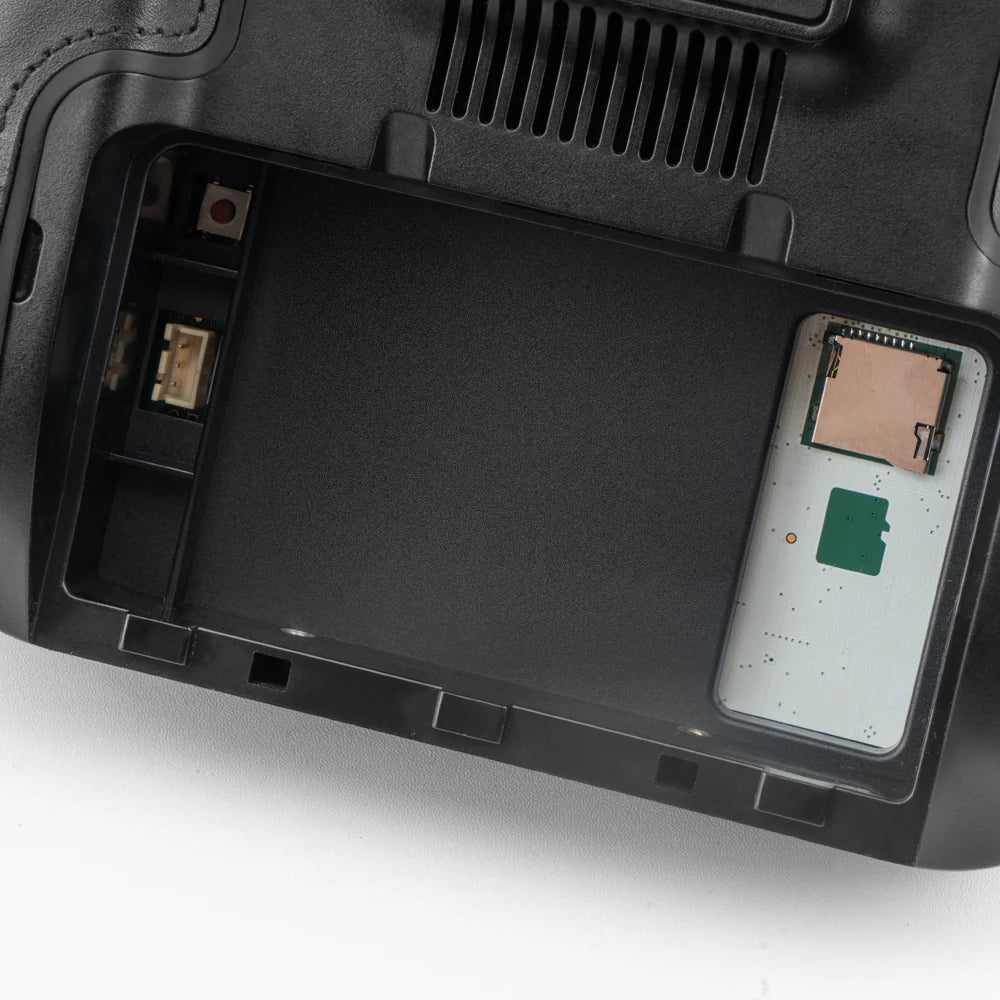

MicroSD Card Slot: Yes (card not included)
Internal Storage: Integrated 4GB of onboard flash memory
Display: 5-inch IPS touchscreen (800 X 480 resolution)
Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)
Upgrade Method: USB / EdgeTX Companion PC software
Module Bay: JR-compatible module bay for additional modules
Dimensions: 200*178*88mm
Weight: 813g (without battery)

Powered by the advanced STM32H7 processor, it offers lightning-fast performance, smooth operation, and instant responsiveness. The bright 5-inch 480×800 IPS touchscreen provides a sharp, sunlight-readable interface for easy navigation and programming.

Featuring the Gemini-X dual-band ExpressLRS system with dual LR1121 transceivers, the TX16S MK3 ensures ultra-reliable, low-latency control across both 2.4GHz and 900MHz bands, providing exceptional signal stability and link quality.

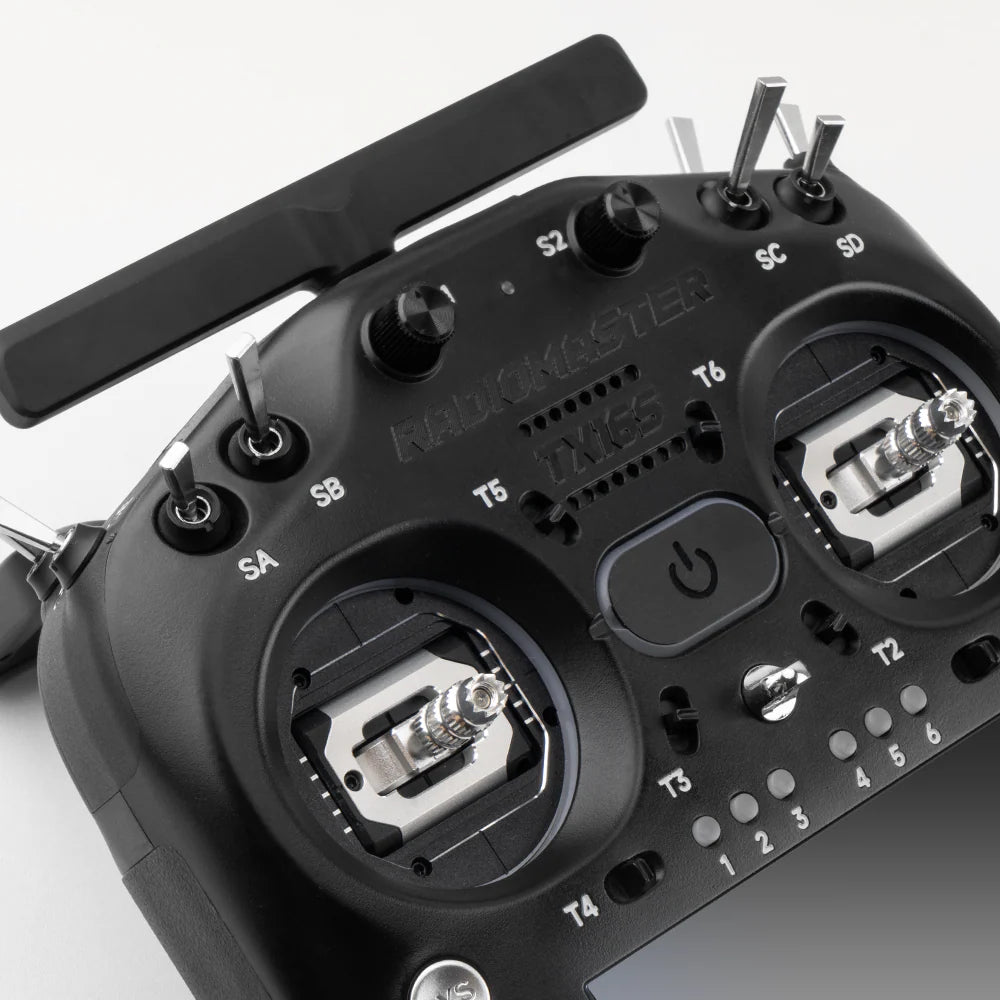

The TX16S MK3 Standard features new V6 quad-bearing Hall-Effect gimbals, using the same high-performance chipset found in the AG02 for improved precision and stability. External adjustments for travel, centering, and tension let you fine-tune the feel exactly to your preference. Programmable LED gimbal light rings add a new layer of customisation and function, allowing pilots to assign visual indicators for modes, warnings, or status cues while giving the radio a distinctive, personalised look.

A full-size powerhouse built around the classic, proven TX16S layout—trusted by pilots worldwide. Every switch, slider, and potentiometer is exactly where it belongs, delivering complete control without compromise. Modular switch panels allow personalised configurations to match any flying style.
