RadioMaster XR1 Multi-Frequency ExpressLRS Reciever

$23.49 AUD $23.70 AUD

Save 1% GST included Shipping calculated at checkout.

Price match

Dispatches once stock arrives

10+ due

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup not available

1/80 Somersby Falls Road, Somersby NSW

Get directions

Ready for pickup once stock arrives.

Product details

SKU: 31965

Shipping Weight: 20g

W/H: V-04-D-07

Categories: Drone RC RX Receivers, ELRS 2.4GHz Receivers, ELRS 915MHz Receivers, ELRS Express LRS Receivers & Modules, FPV Coming Soon, FPV Recent Stock Arrivals, Radio Gear, RadioMaster

Tags: 2.4ghz, 915mhz, ELRS, Receiver

Why buy from Phaser FPV?

Dependable Phaser started in 2014. Long reputable history and 5 star reviews.
Fast dispatch All stock is on the shelf in our Somersby warehouse. In-stock orders placed before 1pm Sydney time on a business day ship the same day. Shipping details.
Transparent stock If it says in stock, we ship today. If it's sold out but more is on the way and we know the ETA, it's on the product page, so you know what to expect before you order.
Showroom and pickup Walk into our Somersby showroom, an hour north of Sydney, talk to the team and see it before you buy, or order online and collect from the front counter.
Support after you buy Something won't bind, connect or work? We troubleshoot it with you first. Repair, soldering and 3D printer servicing are available when needed, quoted before any work starts. Returns and warranty.
Price match Found it cheaper at an Australian store? Use the Price match button on the product and we'll take a look.
One warehouse, three stores The same crew runs Phaser FPV, Central Coast Coffee and Tradiemods from one fast, efficient warehouse, with over a decade of online retail behind it.
3D printing and design Need a custom part? Our sister site Phaser3D prints from your file and can design to print.
Experience Our staff fly, build and use this gear, and will help you pick parts that work together so you don't buy twice. Not sure what to buy? Message us on live chat, or call us and leave a voicemail; we'll call you back as soon as we can.
Community Large Facebook community for like-minded pilots, or view our Facebook page.
GST registered If your business is registered, you claim the GST back and save 10%. Some small online stores are not registered, so there's nothing to claim.

Product description

Are you looking to buy RadioMaster XR1 Multi-Frequency ExpressLRS Reciever in Australia?

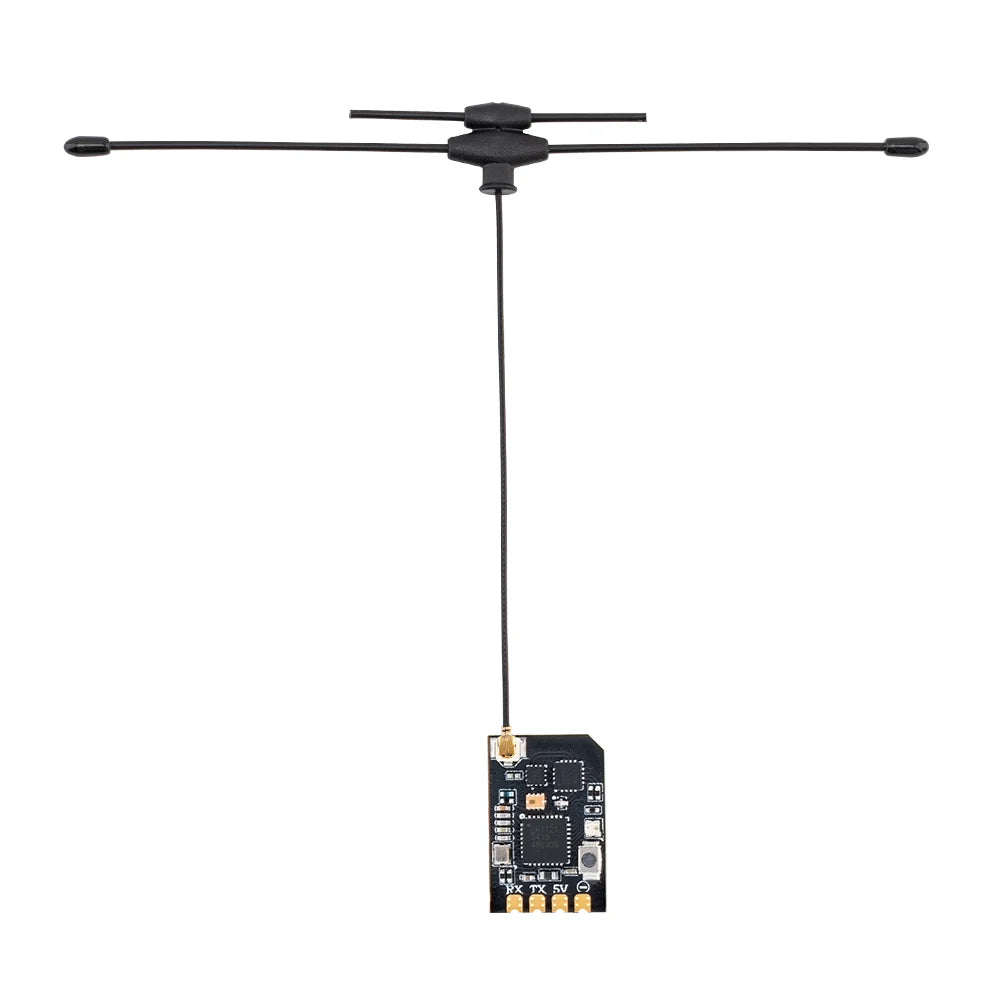

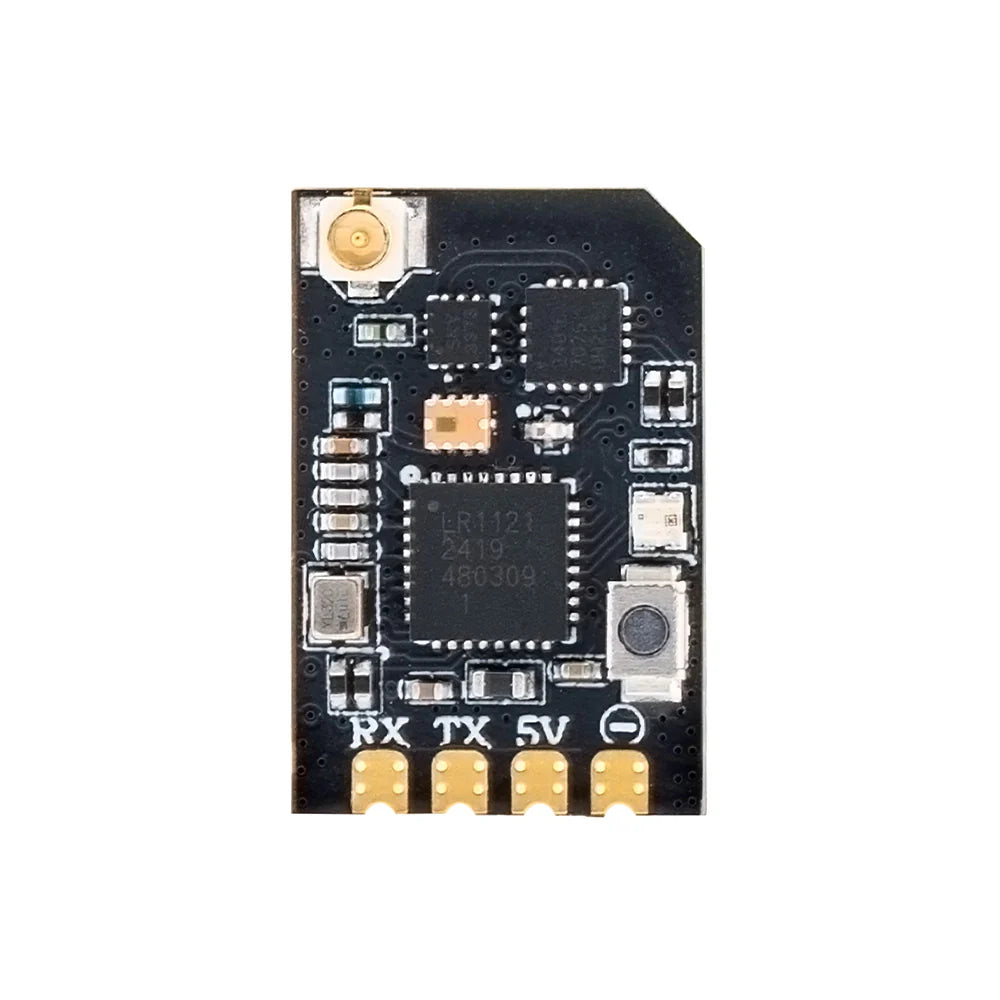

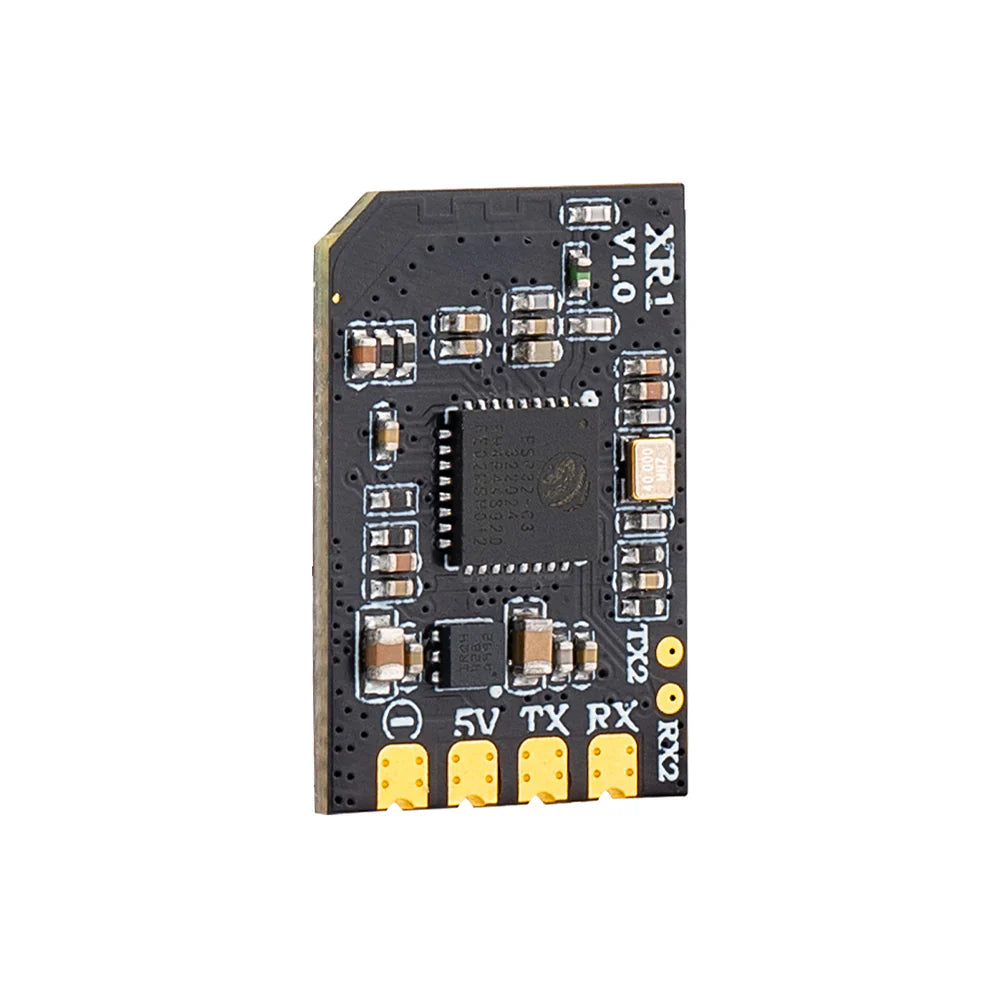

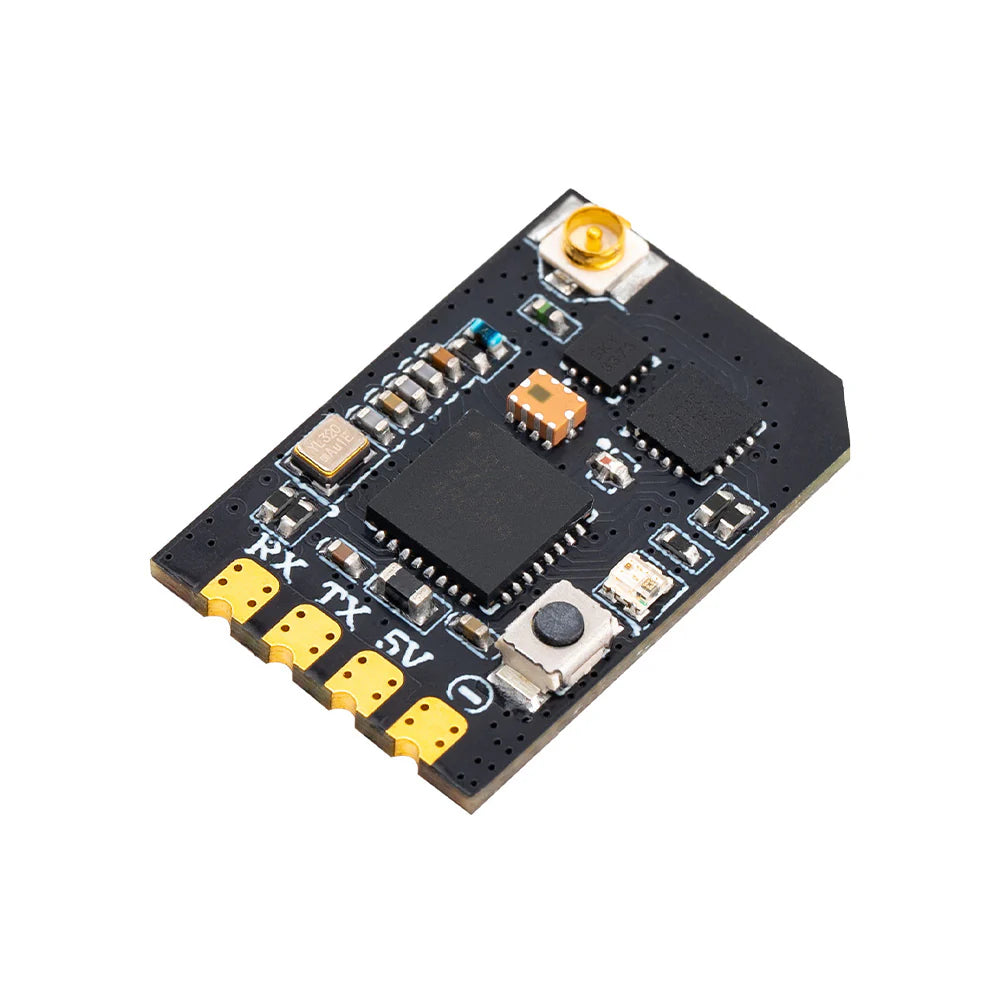

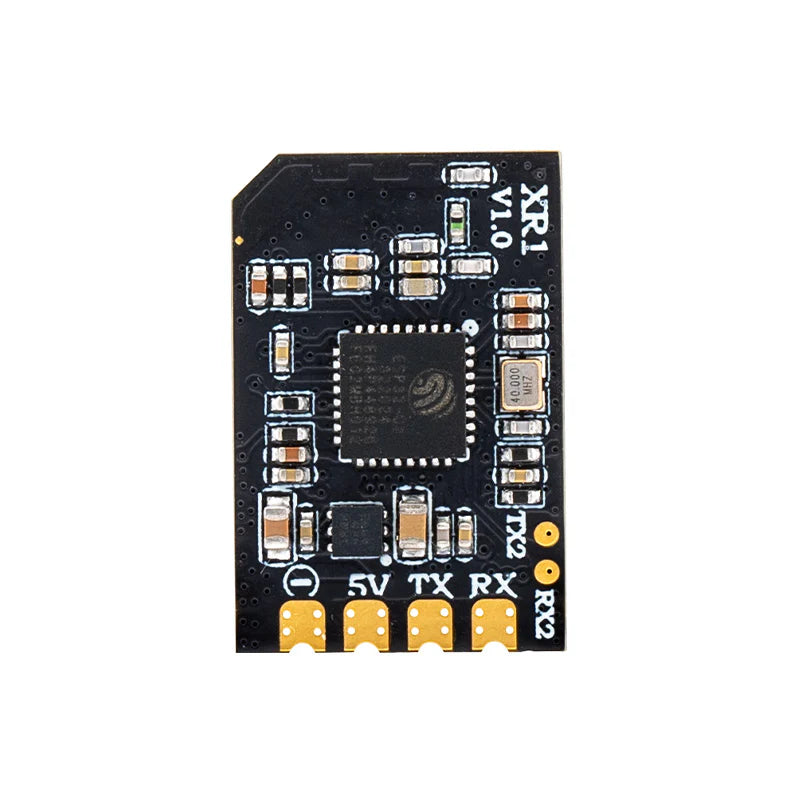

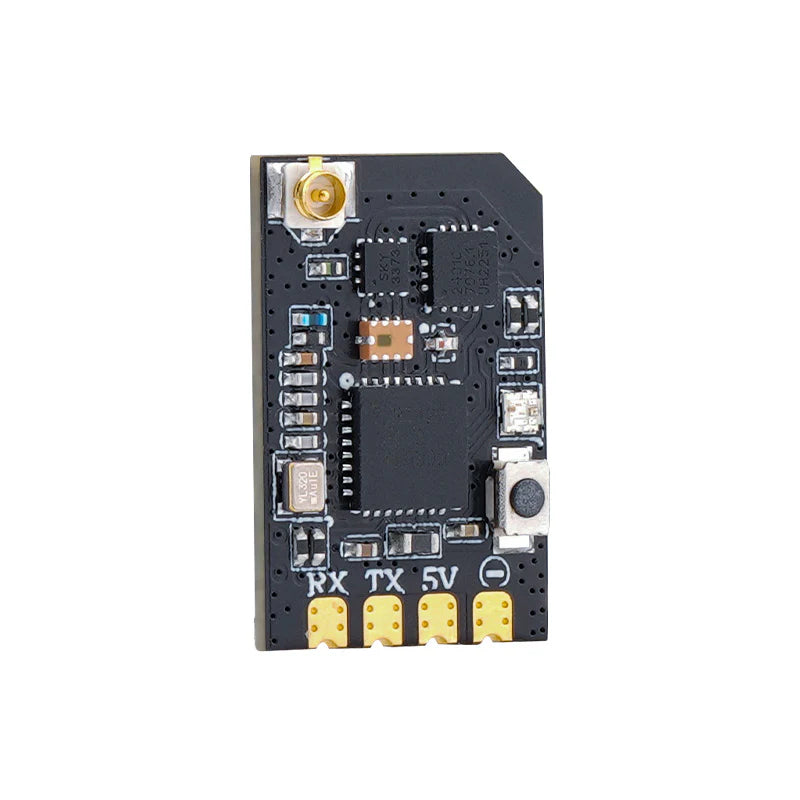

The XR1 Receiver is a versatile, ultra-compact ExpressLRS receiver, measuring just 20 x 13mm. Powered by the advanced third-generation Semtech LR1121 transceiver, the XR1 operates seamlessly on 2.4GHz OR Sub-G 900MHz bands. Whether you’re flying on 2.4GHz or 900MHz, the XR1 delivers exceptional range and sensitivity in a small, lightweight package — perfect for any build. With the reliability of ExpressLRS, you can focus on flying without worrying about link quality.

Designed for convenience, the XR1 features built-in Wi-Fi for effortless configuration and firmware updates. Access and manage settings through an intuitive WebUI on your PC or mobile device with ease.

Features

Telemetry RF power: 100mW
ExpressLRS 2.4GHz or Sub-G 900MHz
ESP32C3 high-performance MCU
Semtech LR1121 2.4GHz & Sub-G 900MHz Transceiver
Secondary UART port
Castled pads for easy soldering

Specifications

Item: XR1 Nano Multi-Frequency ExpressLRS Receiver
Type: ISM2.4 or FCC915
MCU: ESP32C3
RF chip: Semtech LR1121
RF connector: IPEX-1
Antenna: 1x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
Frequency Range: 2.4GHz or Sub-G 900MHz
Telemetry Power: 100mW
Maximum Packet rate: DK500Hz / K1000Hz
Minimum Packet refresh rate: 50Hz
Working voltage: 5V
Weight: 1.0g (without antenna)
Dimension: 20mm * 13mm * 3mm
Firmware Version: ExpressLRS v3.5.1 pre-installed
FW Target: RadioMaster XR1 2.4/900 RX
Bus interface 1: CRSF
Bus interface 2: UART

Tailored to Your Needs

The XR1 Receiver is available in three configurations, ensuring you have the flexibility to meet your exact requirements: Choose between 2.4GHz, Sub-G 900MHz, or a Dual-Band antenna that allows switching between 2.4Ghz and 900Mhz without an antenna change! All antenna types are available as optional accessories so you can change frequency at a later stage without needing to purchase a new receiver!
