TBS Lucid DroneCAN Airspeed Sensor

Are you looking to buy TBS Lucid DroneCAN Airspeed Sensor in Australia?

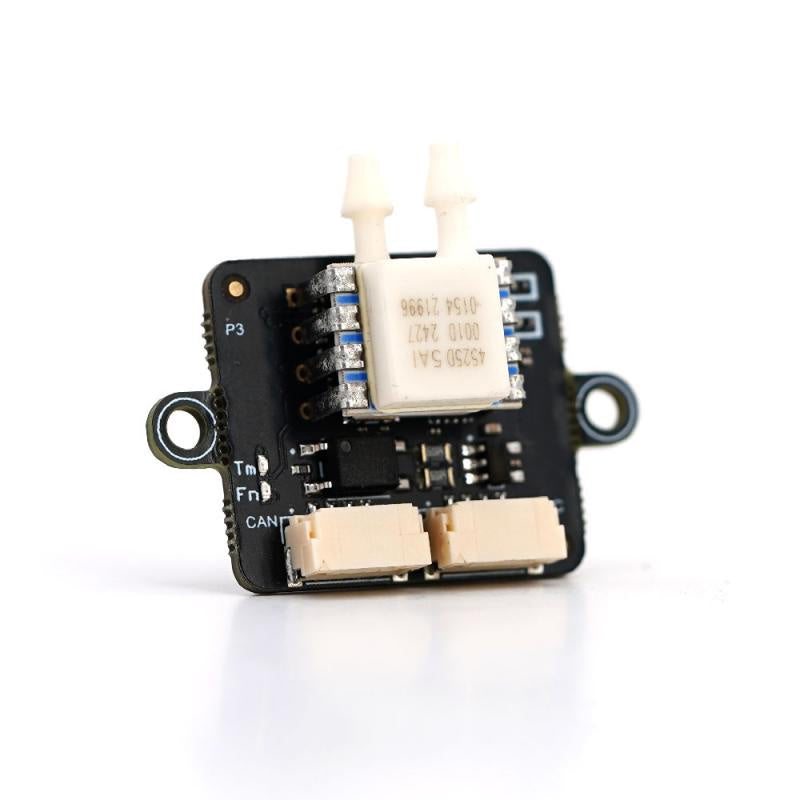

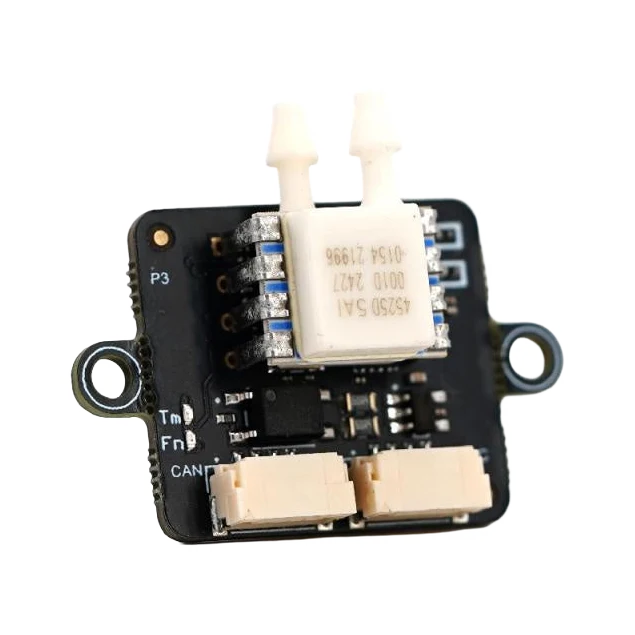

The TBS Lucid DroneCAN Airspeed Sensor features CAN JST-GH connector, DroneCAN Protocol and direct I2C support. It comes with a stainless steel pitot tube and silicone tubing, ready to be installed in your project.

Specifications

• CAN & I2C Interface
• CAN JST-GH connector, DroneCAN Protocol
• I2C JST-GH connector, MS4525DO I2C mode (I2C address 0x28)
• CAN status LED, Orange
• Fast blinking, No communication between CAN node and Flight Controllers
• Slow blinking, Communicating between CAN node and Flight Controllers
• 3.3V Power LED, Orange
• Input voltage range: 4~6V
• Power consumption: 60mA
• Operating Temperatures: -20°C to 85°C
• Pressure range：6890kPa
• Airspeed range： 100 m/s or 360 km/h or 223 mp/h
• Accuracy: ±2.0%
• Dimensions：35mm*22mm*12mm
• Weight：4g

Setup

DroneCAN Mode

• Verify the following parameters are set on your autopilot via your ground station.
• CAN_P1_DRIVER = 1 (assuming its on the first CAN bus of the autopilot)
• ARSPD_TYPE = 8 (DroneCAN)

I2C Mode

• ARSPD_TYPE = 9 (DLVR-10)
• ARSPD_USE = 1 to enable using the sensor on autopilots external I2C bus

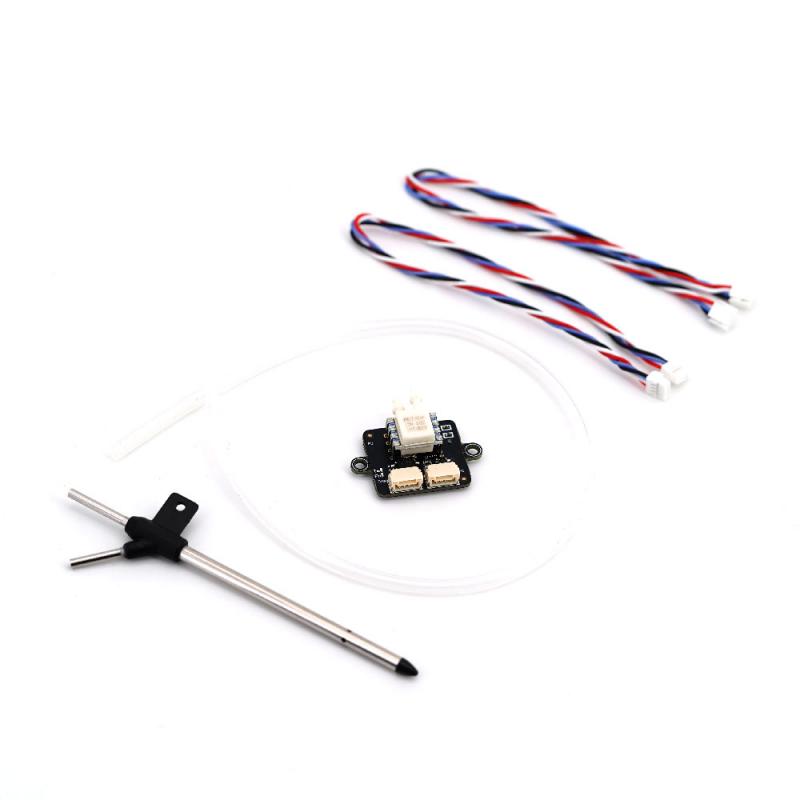

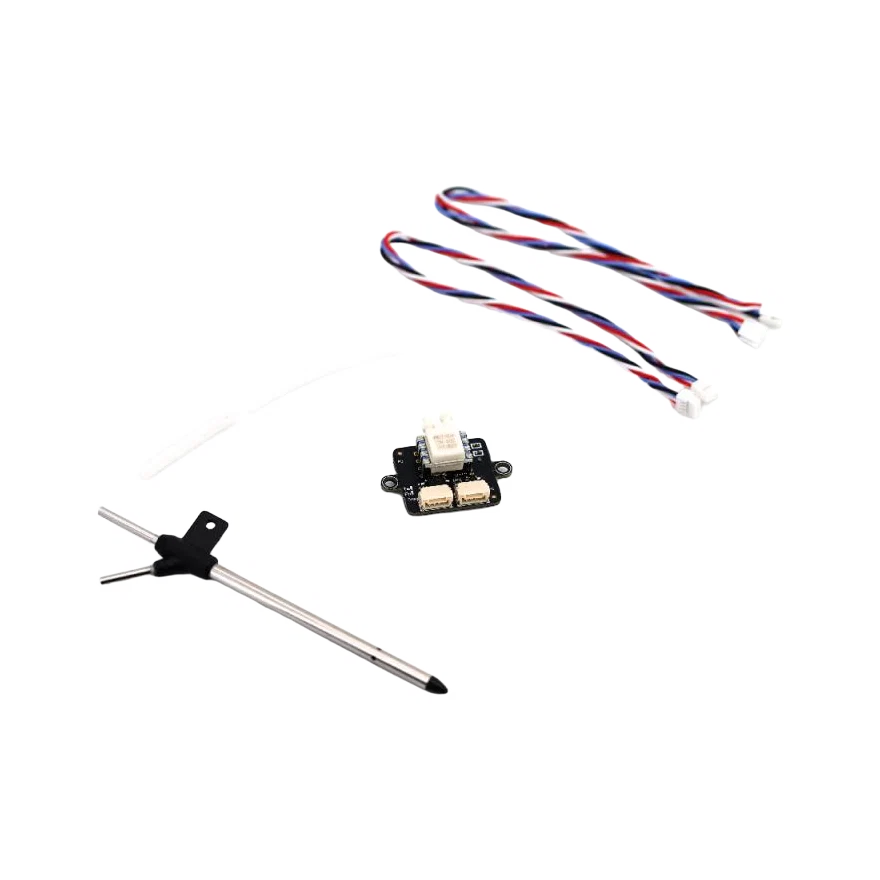

Package includes:

• 1x TBS Lucid DroneCAN Airspeed Sensor
• 1x Airspeed Sensor Pitot Tube w/ silicone tube
• 2x CANBUS cable (4pins 20cm)

User Manual

- [Download]
