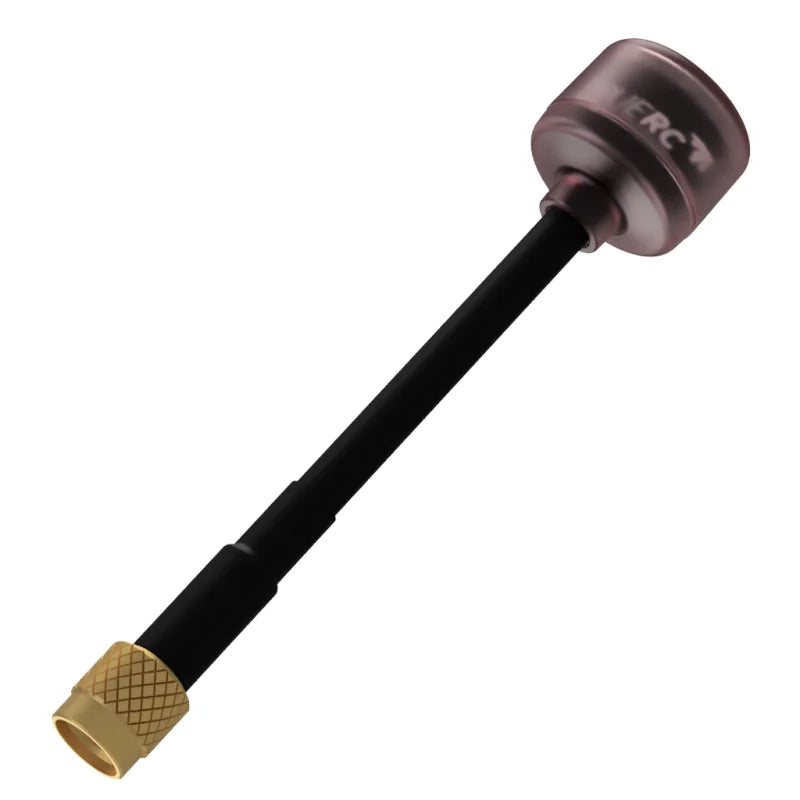

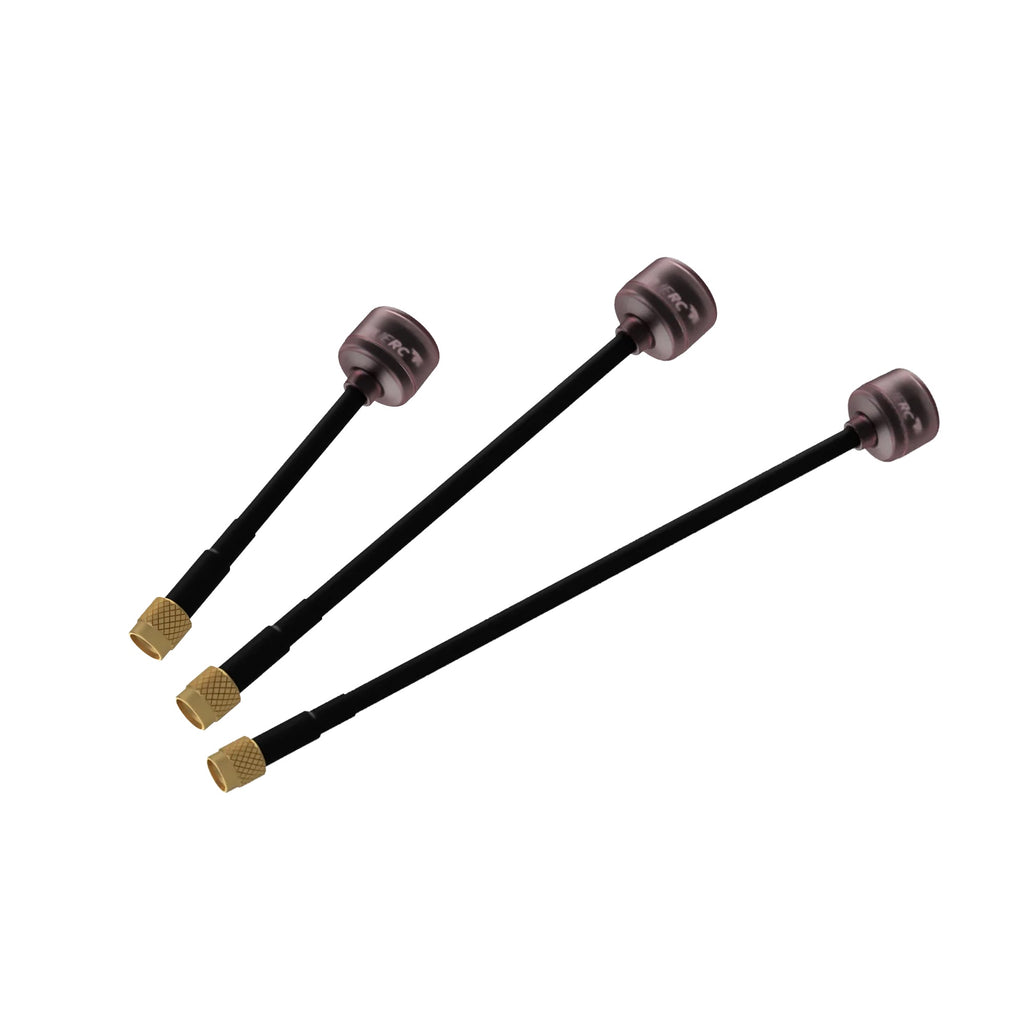

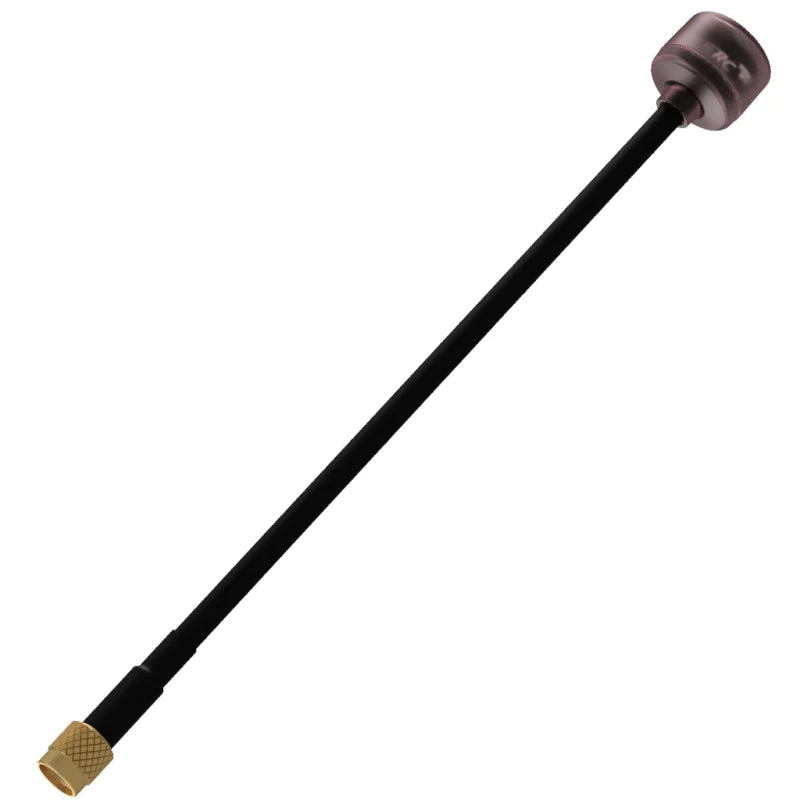

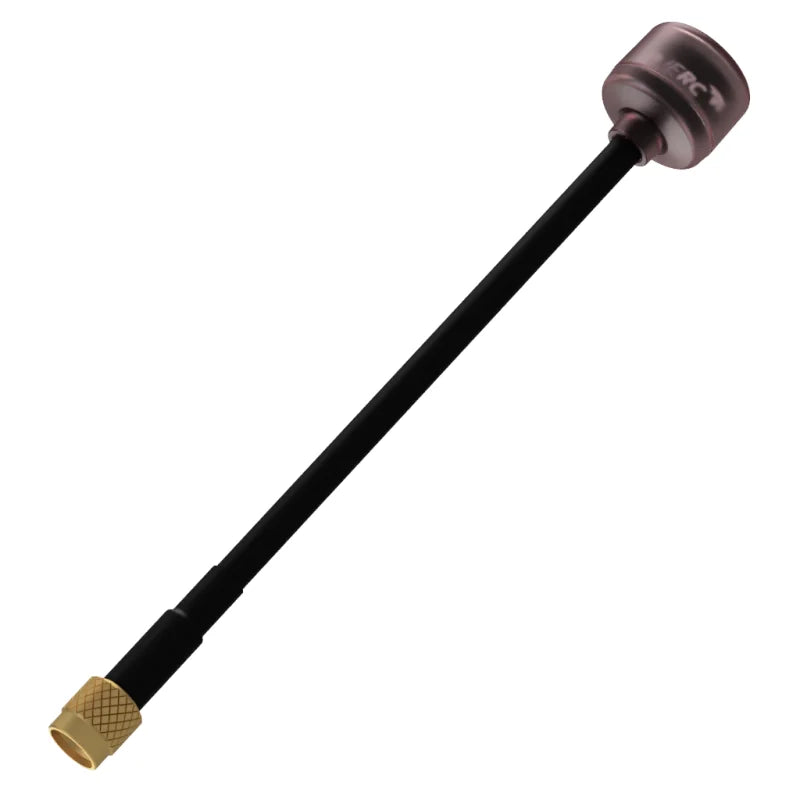

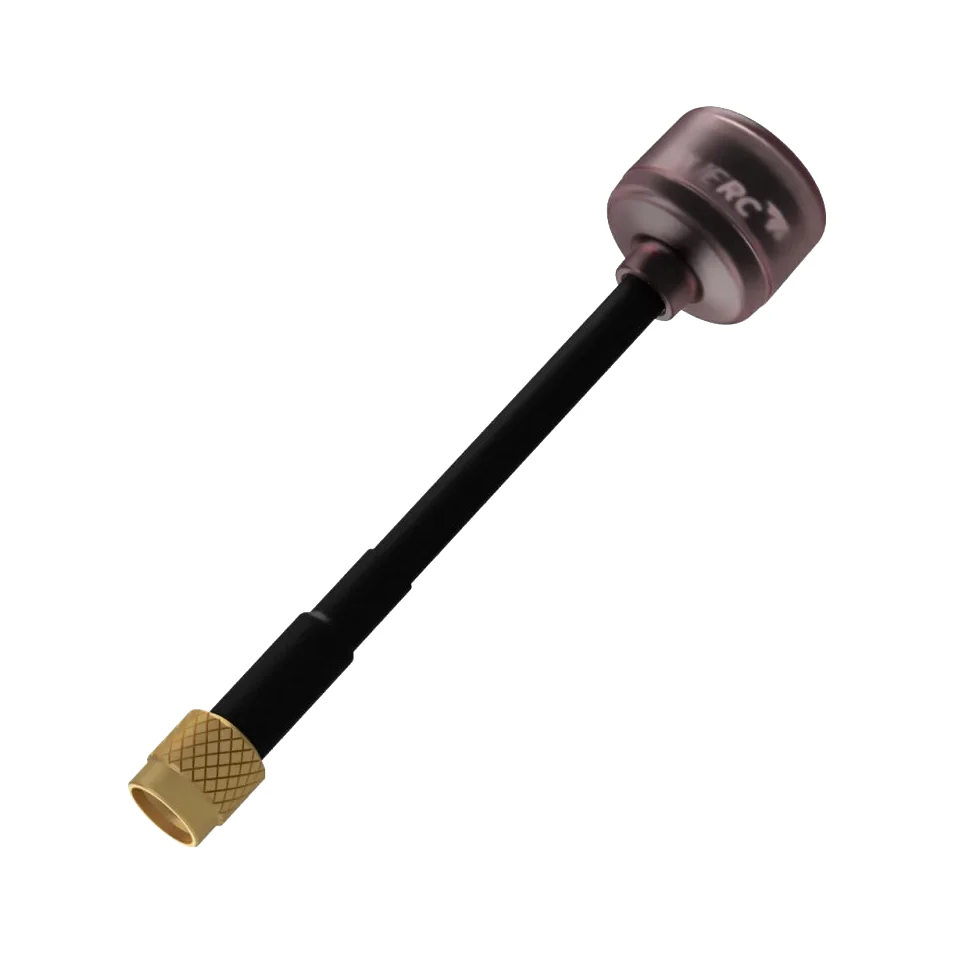

TrueRC CORE 5.8 RP-SMA

RHCP / Red / RP SMA 80mm
$25.95 AUD
Skip to product information
TrueRC CORE 5.8 RP-SMA dark-mode image 1

TrueRC CORE 5.8 RP-SMA

$25.95 AUD
GST included Shipping calculated at checkout.

Delivery options

TrueRC CORE 5.8 RP-SMA

Local pickup is free. Collect from Somersby NSW; choose Pick up at checkout instead of a courier. We open 7:30am Monday - weekend orders are usually ready to collect by 10am.

2 In stock
Price match

Request a price match

TrueRC CORE 5.8 RP-SMA Our price: $25.95

We reply approved or declined by email, usually within 15–60 minutes during business hours. Matching is at our discretion — we can't promise every price, but if it's fair we usually will.

Polarisation
ColourRed
Connector Cable
Check stock by polarisation Hide stock breakdown
Stock status for RHCP
Colour RP SMA 80mm RP SMA 125mm RP SMA 160mm
Red
Grey
Teal
Stock status for LHCP
Colour RP SMA 80mm RP SMA 125mm RP SMA 160mm
Red
Grey
Teal
Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.
Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support
We open 7:30am Monday - weekend orders are usually ready to collect by 10am
Product details
SKU: 35117
Shipping Weight: 20g
W/H: W-03-D-04


Are you looking to buy TrueRC CORE 5.8 RP-SMA in Australia?

The CORE 5.8 is TrueRC's refined omnidirectional CP antenna built on years of experience with drone enthusiasts and professionals. A refined RF design provides excellent consistency across units and cable configurations. The durable polycarbonate shell survives inevitable crashes. Available in three colours. Reinforced RP-SMA connector with RG402 semi-flex cable and exclusive knurled True-SMA for easy tightening.

Features

  • Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
  • Clear indication of polarisation direction
  • Smooth radiation pattern with even gain in all directions
  • Excellent axial ratio and efficiency
  • Flexible coax cable option that deflect impacts

Specifications

  • Gain: 1.9 dBic
  • Polarisation: RHCP or LHCP
  • Cross-Polar Rejection: −10 to −20 dB
  • Bandwidth: 5.5GHz–6.7GHz
  • Radiation Efficiency: 98%
  • SWR: ≤1.2:1
  • Weight: Varies with cable option
  • Dimensions (head): 16.9mm dia. × 13.1mm height
  • Length: Varies with cable option
  • Cable: TrueRC RG402 Semi-Flex
  • Connector: Reinforced RP-SMA
