TrueRC X²-AIR 1.3GHz Patch Antenna
LHCP
$349.95 AUD
Skip to product information
1 In stock
TrueRC X²-AIR 1.3GHz Patch Antenna
$349.95 AUD
GST includedShipping calculated at checkout.
Sale ends in
--d
--h
--m
--s
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup available
1/80 Somersby falls RD, Somersby NSW
Usually ready in 2 hours
SKU:
19838
Shipping Weight:
40g
W/H:
W-03-D-01
Categories:
1.3Ghz Antennas, FPV Antennas, FPV Gear, FPV Gear & Equipment, Radio Gear, True RC
Are you looking to buy a TrueRC X²-Air 1.3GHz Patch Antenna in Australia?

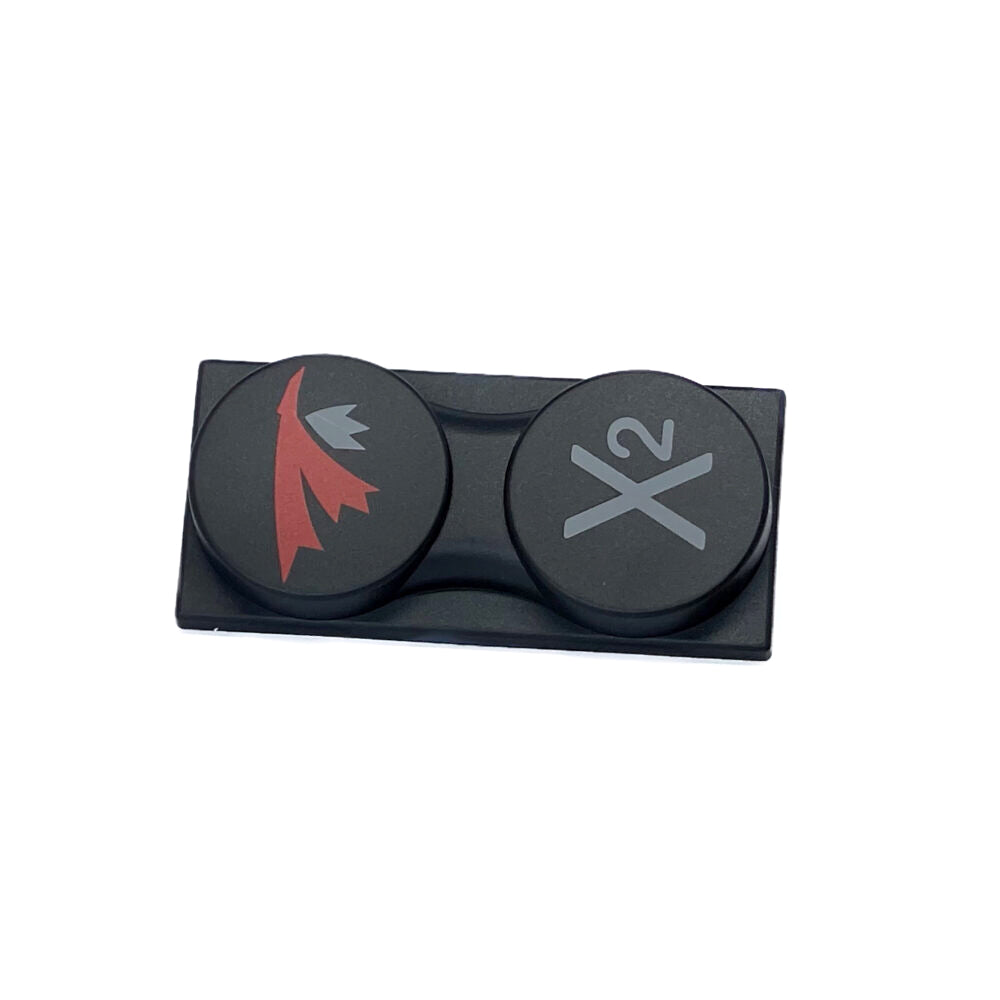

The new X²-AIR 1.3 is a match of two X-AIR antennas. High gain and wide horizontal beam width make it a “do-it-all” long range tool. A 1/4-20 mounting point in the back, make it super easy to attach to your ground station.
SPECS
- Frequency: 1.200-1.360GHz
- Gain: 13 dBic
- Polarization: RHCP or LHCP

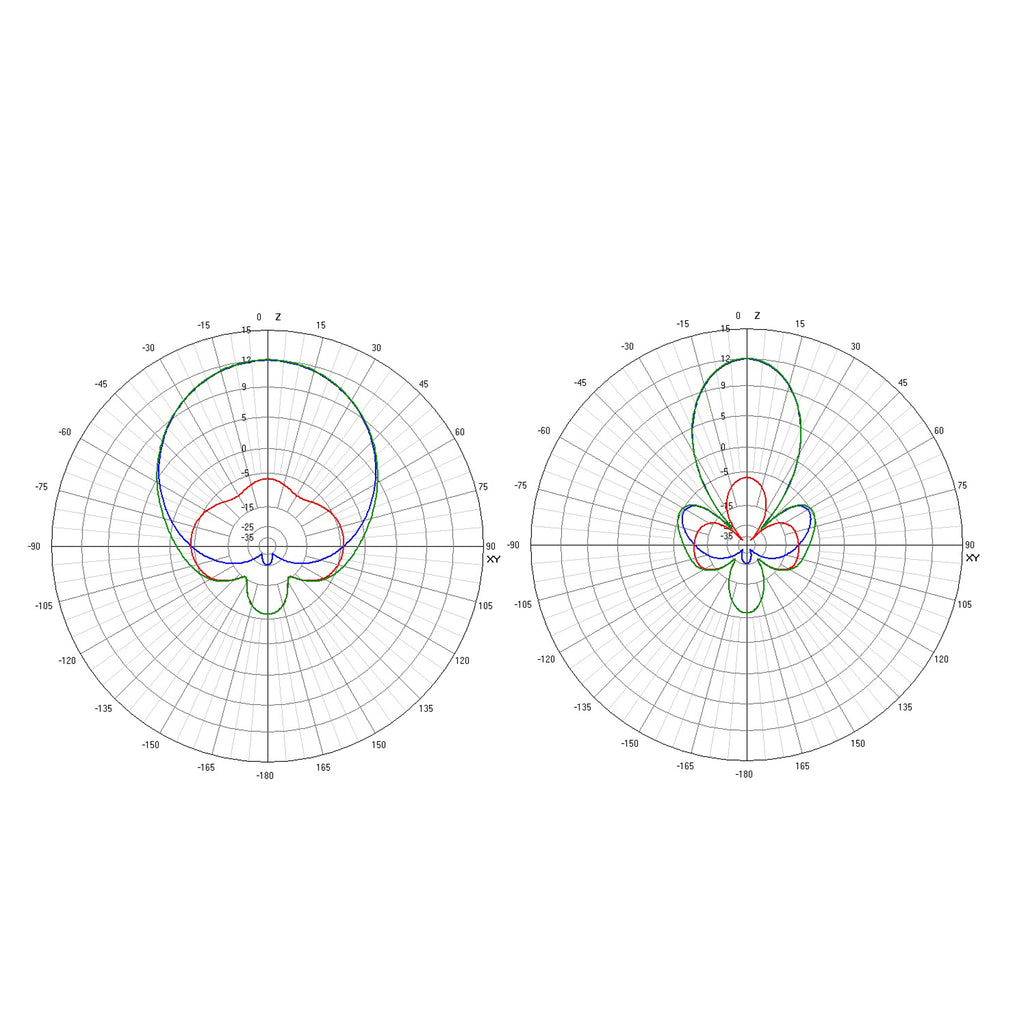

- Beam-width Horizontal*: 150deg
- Beam-width Vertical*: 62deg
- Hor. beam @-3dB**: 74deg.
- Vert. beam @-3dB**: 34deg
- Connector: SMA male
- Dimension: 330mm x 158mm x 40mm
- Mounting: Standard 1/4-20 thread
- Weight: 298g
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
