TrueRC X-Air 5.8 MKII Antenna SMA (45deg)

TrueRC X-Air 5.8 MKII Antenna SMA (45deg)

LHCP
$44.95 AUD
Skip to product information
TrueRC X-Air 5.8 MKII Antenna SMA (45deg)

TrueRC X-Air 5.8 MKII Antenna SMA (45deg)

$44.95 AUD
GST included Shipping calculated at checkout.

Delivery options

TrueRC X-Air 5.8 MKII Antenna SMA (45deg)

Local pickup is free. Collect from Somersby NSW; choose Pick up at checkout instead of a courier. Usually ready in 2 hours.

Out of stock
Price match

Request a price match

TrueRC X-Air 5.8 MKII Antenna SMA (45deg) Our price: $44.95

We reply approved or declined by email, usually within 15–60 minutes during business hours. Matching is at our discretion — we can't promise every price, but if it's fair we usually will.

Style
Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.
Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support
Unavailable for pickup
Product details


Are you looking to buy TrueRC X-Air 5.8 MKII Antenna SMA (45deg) in Australia?

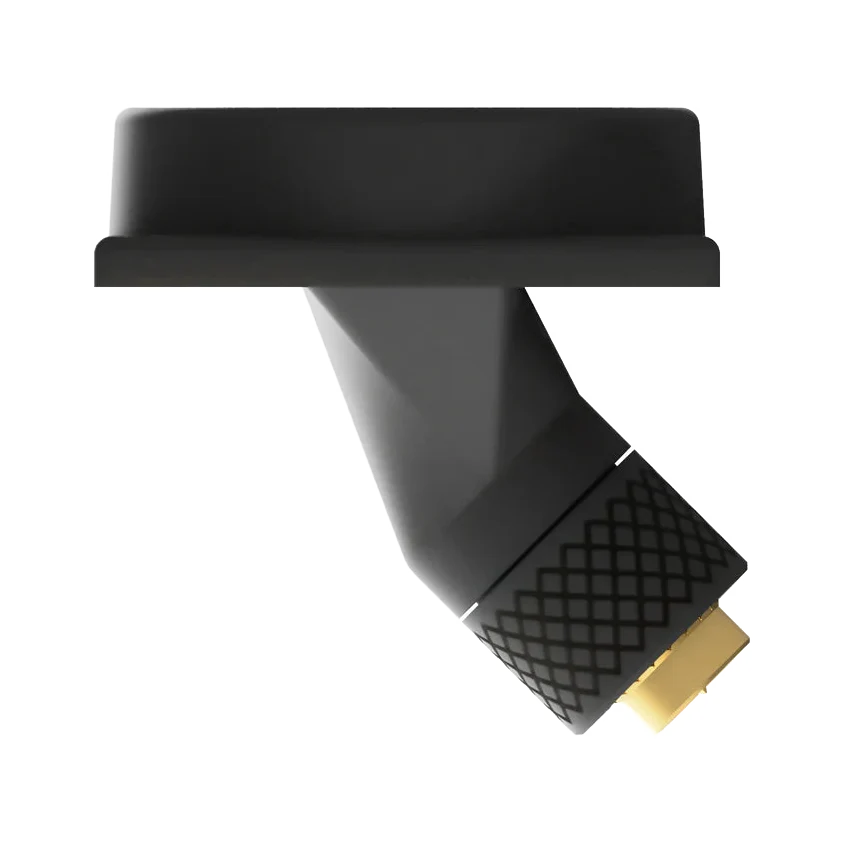

Now with built-in 45deg angled SMA connection! No more adapter needed to fit them on diversity analog modules, no more collision with nearby SMA.

The X-AIR 5.8 Mk. II is our latest redesign of the X-AIR 5.8 antenna. Featuring aerospace grade PCB material and latest computer aided engineering, there’s no compromise in beam width or gain and now size! Almost 1/4 of the footprint of the original, same wide coverage and high axial ratio make it perfect for far off venture without antenna aiming adjustment.

Specifications

  • Bandwidth: 5.1GHz-6.7GHz
  • Gain: 9.5-10.5 dBic
  • Polarisation: RHCP or LHCP
  • Beam-width (H and V)*: 120deg
  • Beam-width @-3dB(H and V)**: 68deg.
  • Connector: SMA or RP-SMA male
  • Dimension: 32 x 32 x 39mm

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
