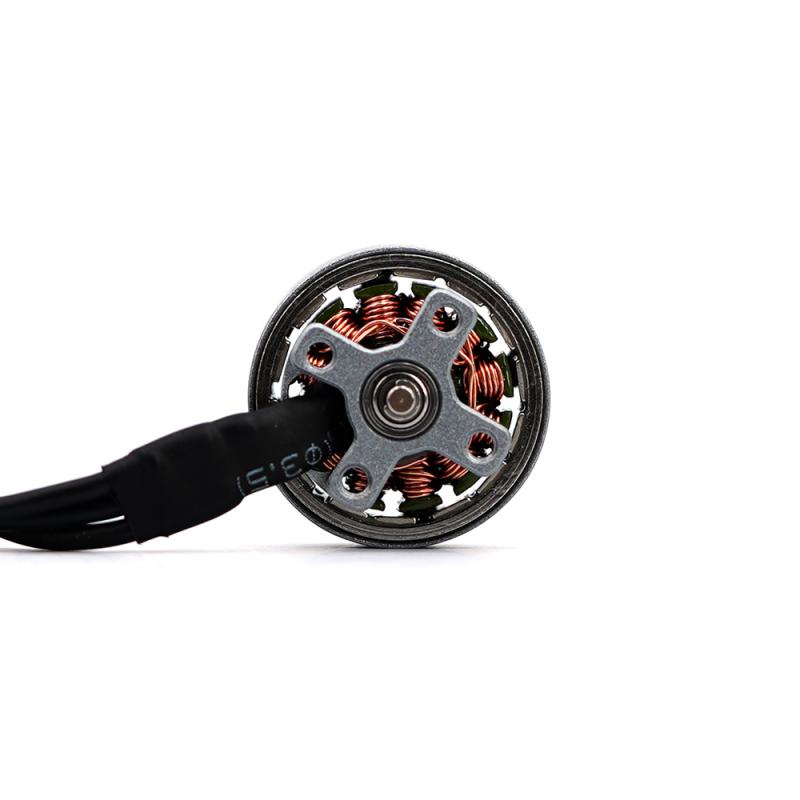

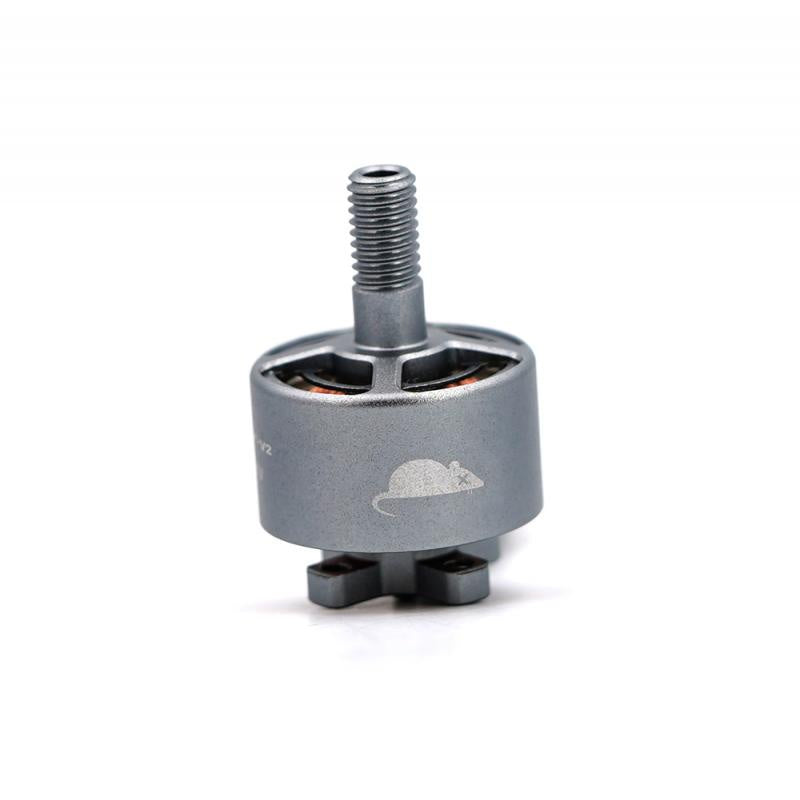

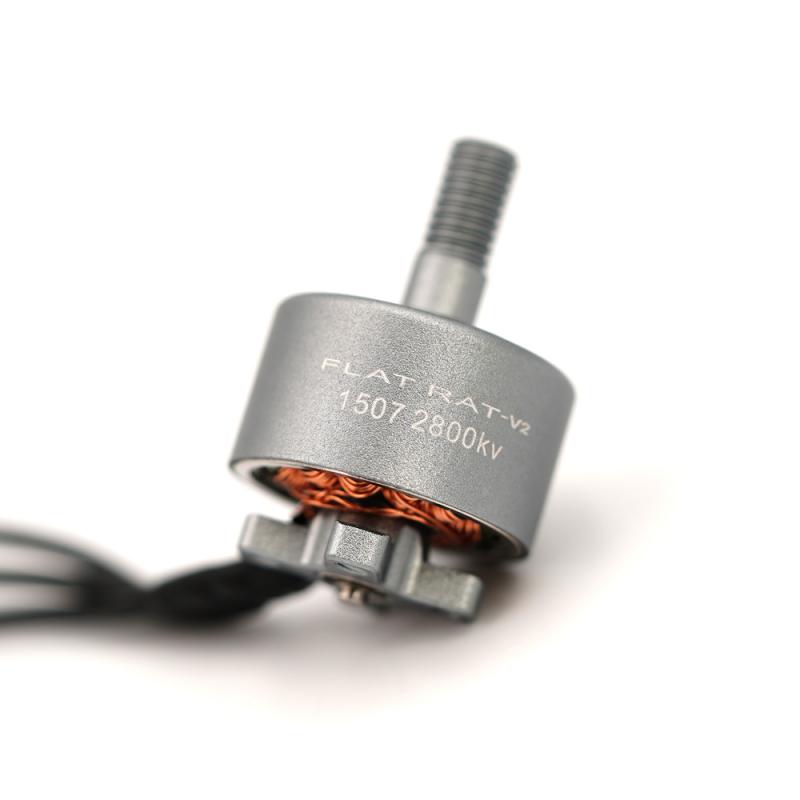

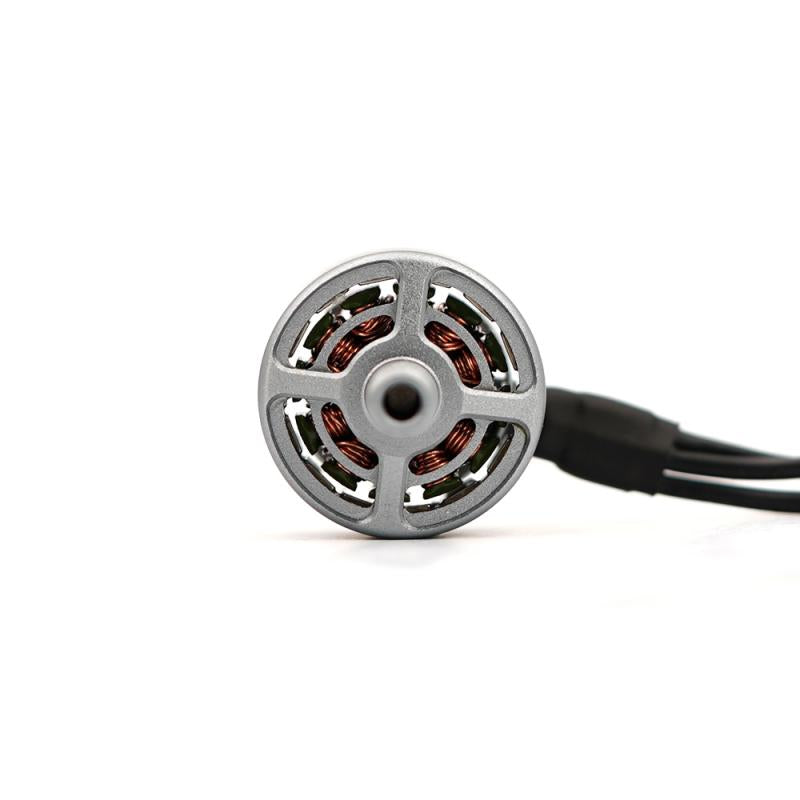

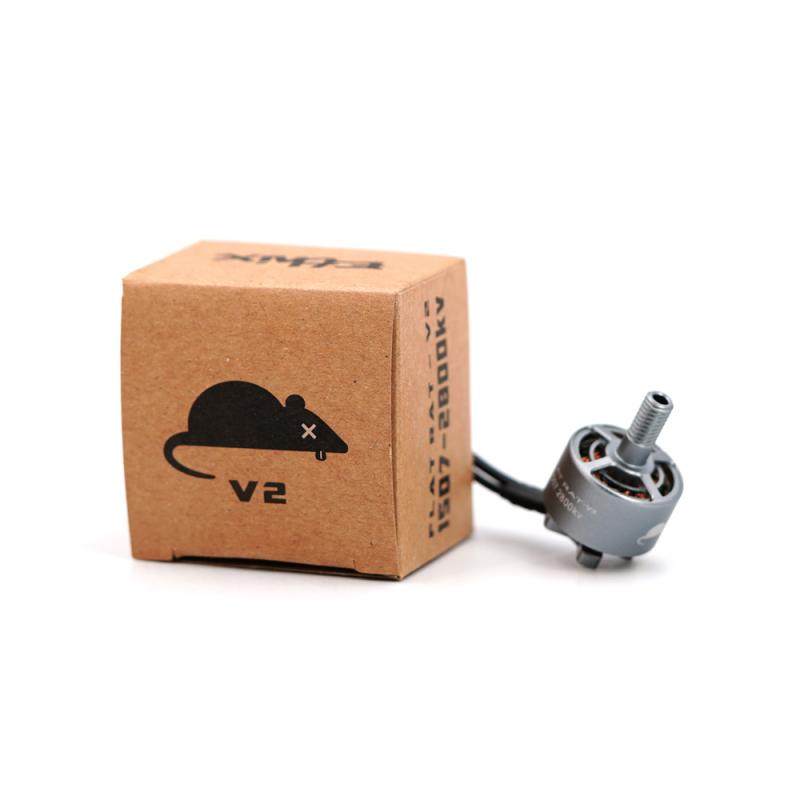

Ethix Flat Rats V2 1507 2800KV Motor

Name: Ethix Flat Rats V2 1507 2800KV Motor
Brand: Ethix
SKU: 21475
Price: 28.95 AUD
Availability: OutOfStock

$28.95 AUD

GST included

Out of stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Pickup availability

1/80 Somersby falls RD, Somersby NSW

Unavailable for pickup

SKU: 21475

Shipping Weight: 30g

W/H: W-02-E-09

Categories: Cinewhoop Frames, Cinewhoop Motors, Drone Motors, Ethix, Ethix Motors, Mini Quadcopter Motor, Quadcopter Motors

Tags: 15XX, 28XXKV, Drone Motor

Add to Wishlist

Why buy from Phaser FPV?

Dependable — Phaser started in 2012. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy Ethix Flat Rats V2 Drone Motors in Australia?

Flat Rat V2 motors take a twist off the previous model but add a little more power to your existing package and new unibell design. Realizing that flight times needed to be increased with the weight of newer HD camera options getting bigger we decided to go with a higher kv winding to increase the thrust but still keep the motor as smooth as possible to achieve more time to get that buttery cinematic footage on your 3” cine frames. Having more power gives you better control and stability in small frames. 6s capable and available in both t-mount and 5mm shaft options.

SPECIFICATIONS

Stator Size (Diameter): φ15mmx7φ15mmx7
Kv: 2800
Magnets N52SH: Curved
Windings: 13.5 turn DLRK
Shaft Length (mm): 12.5mm 12.5mm
Shaft Diameter (mm): 2mm
Shaft material: steel
Bearing: 4*2*2.5
Weight (With Wires) (g): 15.8g
Cells (Lipo): 6S
Max Current (A): 15A
Max Burst Current (A): 20A
Internal Resistance (Rm): 0.23mΩ
Wire Spec (AWG): AWG 24#
Base Mounting Pattern: 12x12mm
Base Mounting Thread: M2 Thread
Motor Overall Dimensions: φ19.8mmx17.5mm

Browse more

Browse all 15xx Motors
Browse all Motors
Browse all Ethix

5 stars: 0 (0%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 1 (100%)
1 star: 0 (0%)

Ethix Flat Rat Motor - Poor Quality

I have lost two of these motors already. Their durability is poor. Both motors have had the motor lead wires disconnect from the windings, one in a very minor crash into grass and the next when doing a turtle roll over.
