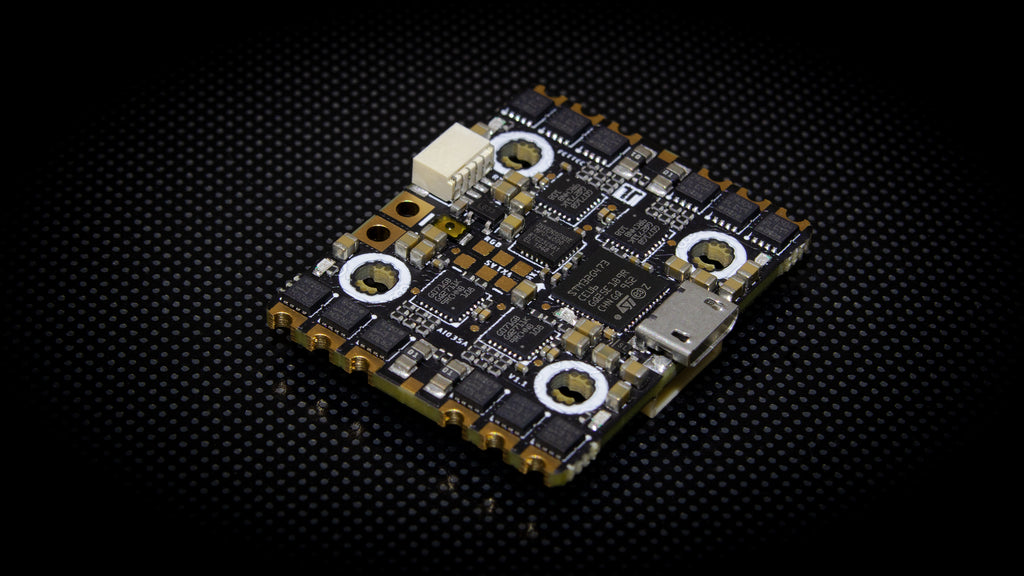

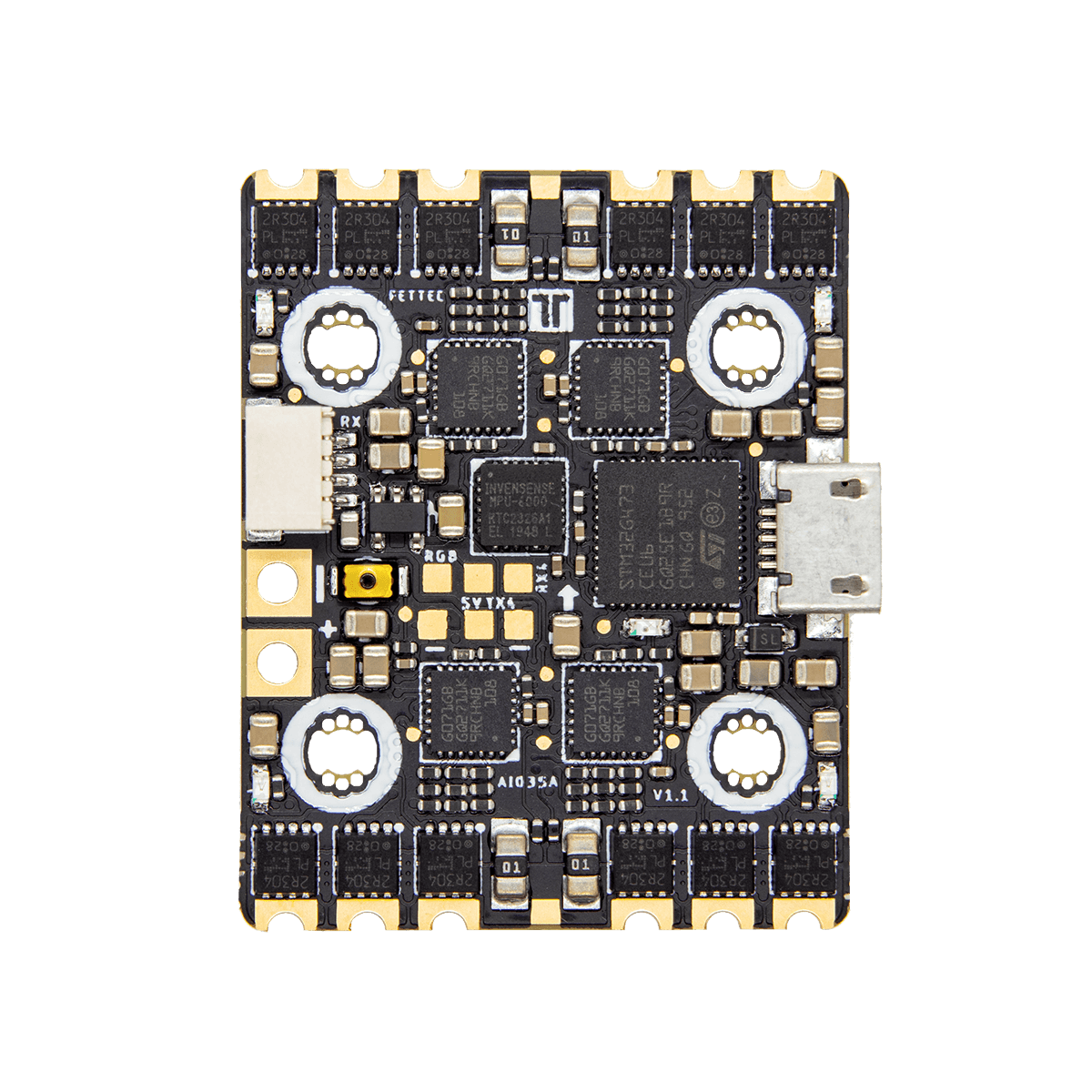

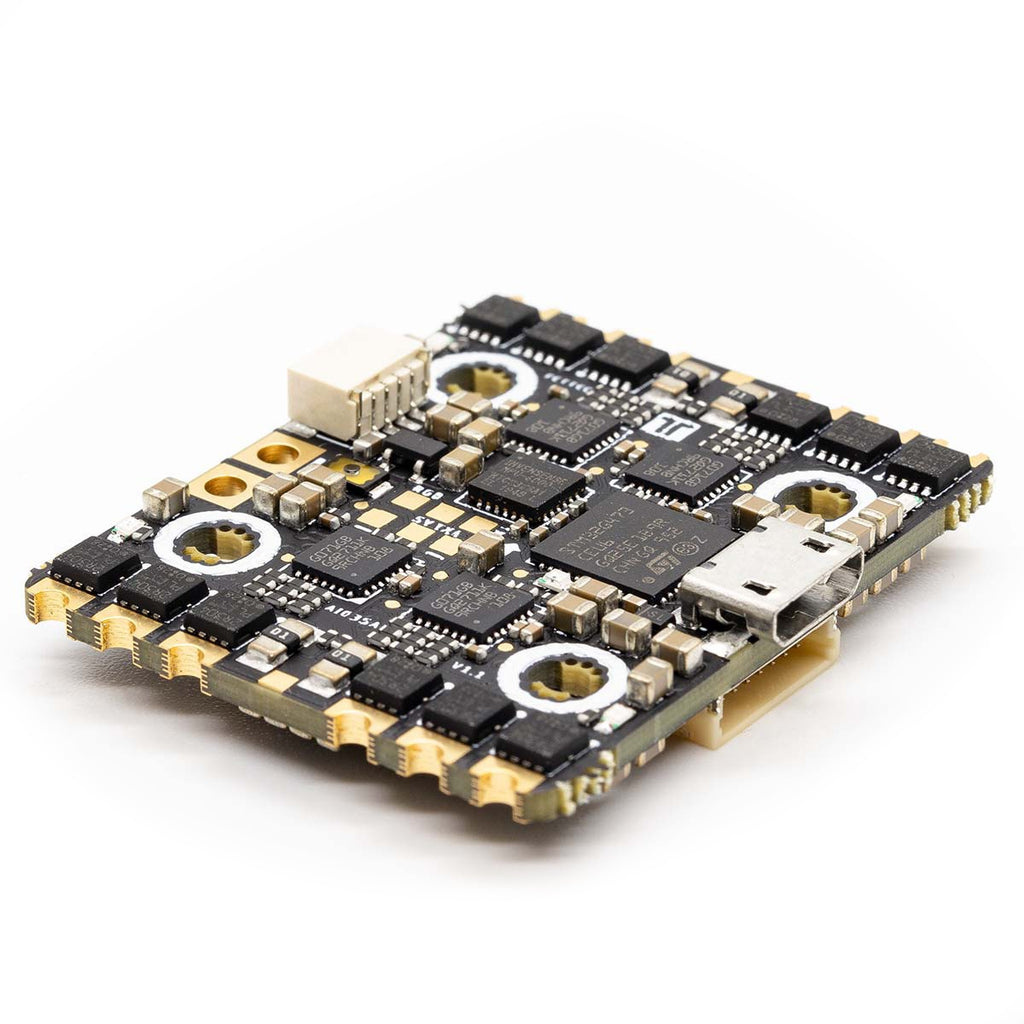

FETtec AIO 35A - N 4 IN 1 ESC

What does "N" version mean?

This product has  no onboard analog OSD.

Digital OSDs can be used as usual.

Here in comparison:

Characteristics:

FC:

• Latest STM32G4 processor

  • 170Mhz + Math accelerator

  • MPU6000

• Designed for 12-25V supply voltage (3S-6S Lipo)

• 2x onboard BEC (max. 600mA each)

  • 5V BEC for RX

  • 5V/16V BEC for VTX (configurable and real Pit*)

• 1x 8 pin connector for solderless connection to VTX, camera and OSD of the digital systems

  • VCC, GND, video in, video out, BEC 5V/16V, VCS/TX3, RX3

• 2x 4 pin connector for receiver and VTX

  • signal, telemetry, 5V, gnd

  • Gnd, 5V, TX1, RX1

• 5 UART serials

  • UART 1 free

  • UART 2 occupied by receiver

  • UART 3 free

  • UART 4 ​​free

  • UART 5 occupied by ESCs / TLM / Onewire

• Solder pads for RGB LEDs

• Supported ESC protocols

  • PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire

• KISS FC firmware

*real pit mode: supply pad switchable

ESC:

• Active current limiting @ 35A

• Input voltage: 3s-6s

• High quality 40V MOSFETs

• STM32G071 @ 64MHz

• up to 128kHz Motor PWM

• Full sine wave control

• Automatic input signal detection

  • PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire

• FETtec ESC firmware

Connector type: JST-SH-1mm

Dimensions:

• External dimensions: 30 x 37.5 mm

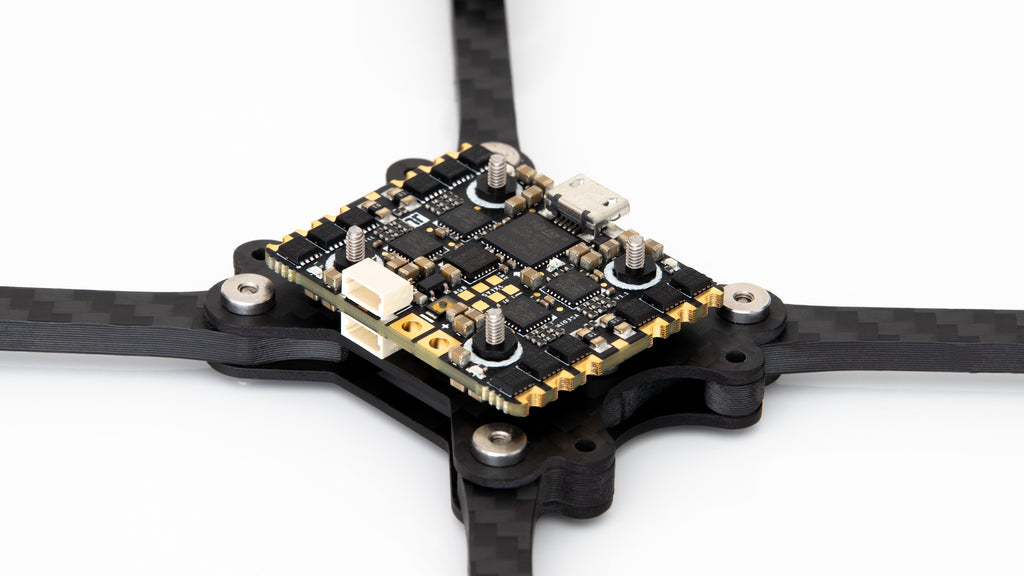

  • Mounting hole pattern: 20 x 20mm with M2 mounting holes (can be increased to M3)

• Height: 7.9mm

• Weight: 8.9g

Software:

KISS firmware - software update via FETtec Configurator

FETtec ESCs firmware - software update via FETtec Configurator

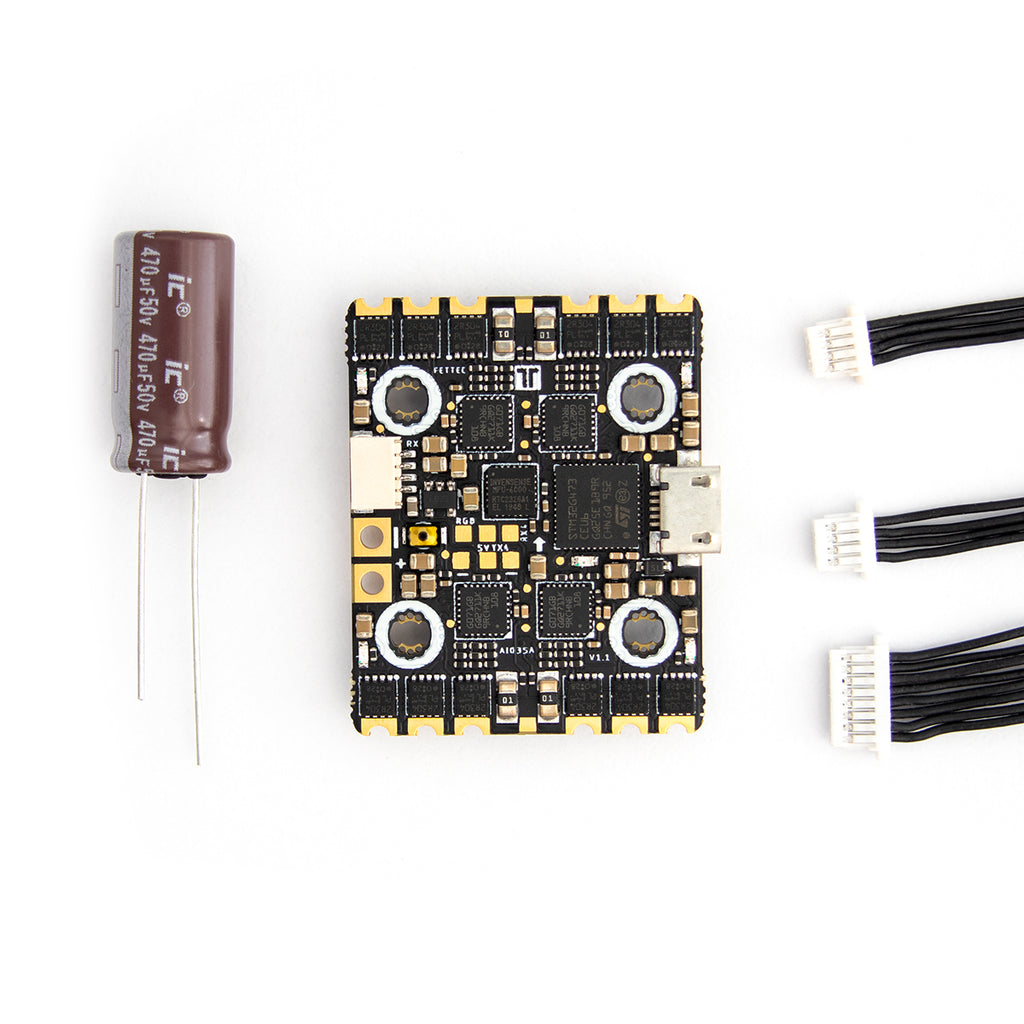

Includes:

• 1x FETtec AIO 35A - N
• 1x capacitor 50V 470µF
• 2x open 4pin cables (JST connector on one side)
• 1x open 8pin cable (JST connector on one side)
• standoffs
