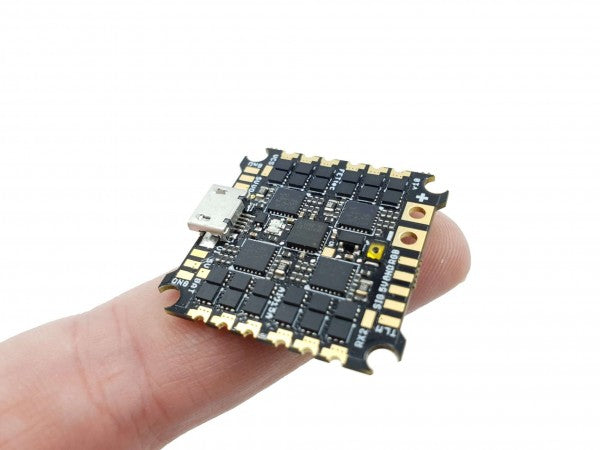

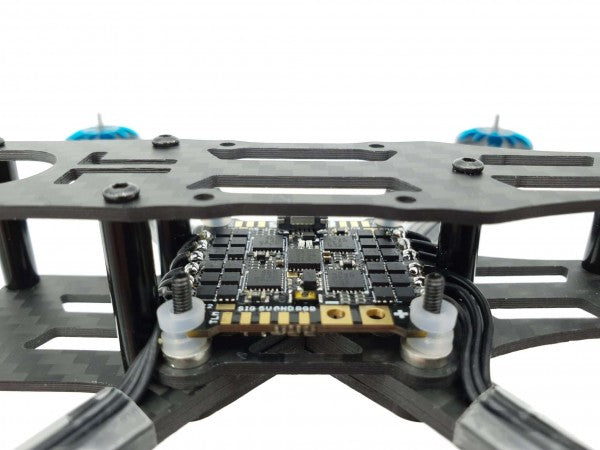

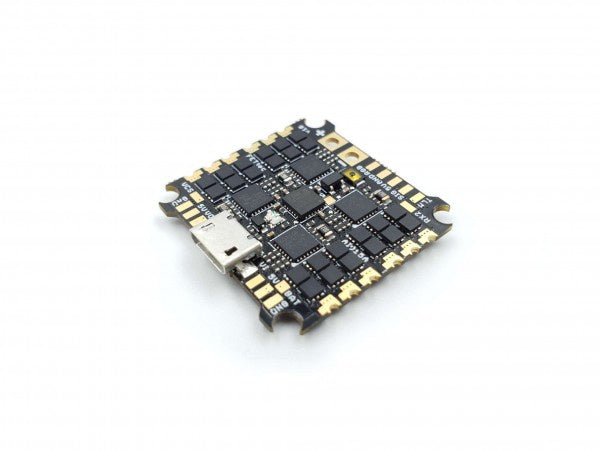

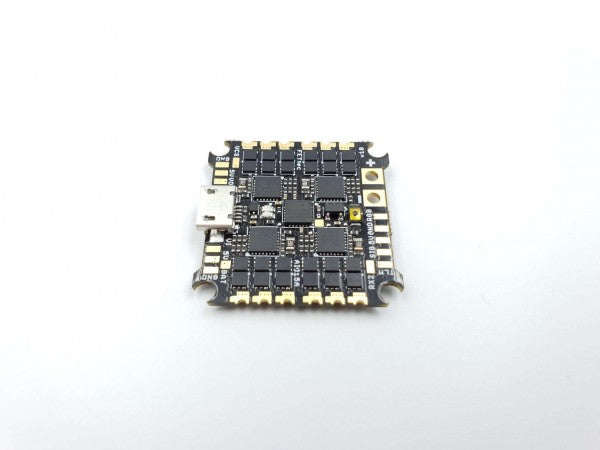

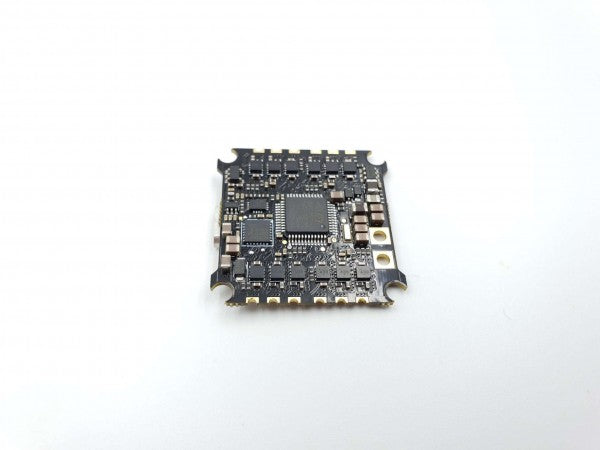

FETtec Mini AIO 15A ESC FC
$124.95 AUD
Skip to product information
Out of stock
FETtec Mini AIO 15A ESC FC
$124.95 AUD
GST included
Sale ends in
--d
--h
--m
--s
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup availability
1/80 Somersby falls RD, Somersby NSW
Unavailable for pickup
SKU:
18496
Categories:
30x30 ESC, 4 in 1 ESC, Drone ESCs, Fettec, Fettec ESC
Are you looking to buy a FETtec Mini AIO ESC FC 15A in Australia?
Features
- Full FETtec AIO with KISS FC firmware
- 4 ESCs 15A
- 2-4s
- Graphic OSD with full KISS tuning
FC :
- STM32F303CCT6 @ 72MHz
- MPU6000
- Supply voltage 6-18V (2-4s LiPo)
- 1x 5V BEC (max 1A)
- Dshot 600
ESC :
- Active current limiting @ 15A
- Input voltage: 2s-4s
- High quality 30V MOSFETs
- STM32G071 @ 64MHz
- 128 kHz motor PWM
-
Automatic input signal detection
- Dshot
- PWM
- OneShot42 / 125
Dimensions:
Dimensions: 29 x 29 mm
Mounting: 25.5 x 25.5 mm
Weight: 3.41 g
Software:
KISS firmware - software update via FETtec Configurator
FETtec ESCs firmware - software update via FETtec Configurator
FETtec OSD - software update via FETtec Configurator
Includes:
1x FETtec Mini AIO 15A
1x capacitor 35V 330µF
