Foxeer Reaper F745 AIO V3 - F7 FC + 45A 2-6S 4-in-1
$149.99 AUD
Skip to product information
Out of stock
Foxeer Reaper F745 AIO V3 - F7 FC + 45A 2-6S 4-in-1
$149.99 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup availability
1/80 Somersby falls RD, Somersby NSW
Unavailable for pickup
Product details
SKU:
25568
Categories:
25.5 x25.5 AIO Flight Controllers / ESC Combos, 4 in 1 ESC, Drone ESCs, F7 Flight Controller, Flight Controllers, Foxeer, Foxeer Flight Controllers, FPV Stack Combos
Tags:
25.5xx25.5, 45 Amp, F7 Flight Controllers
Are You Looking For Foxeer Reaper F745 AIO V3 - F7 FC + 45A 4-in-1 ESC In Australia?

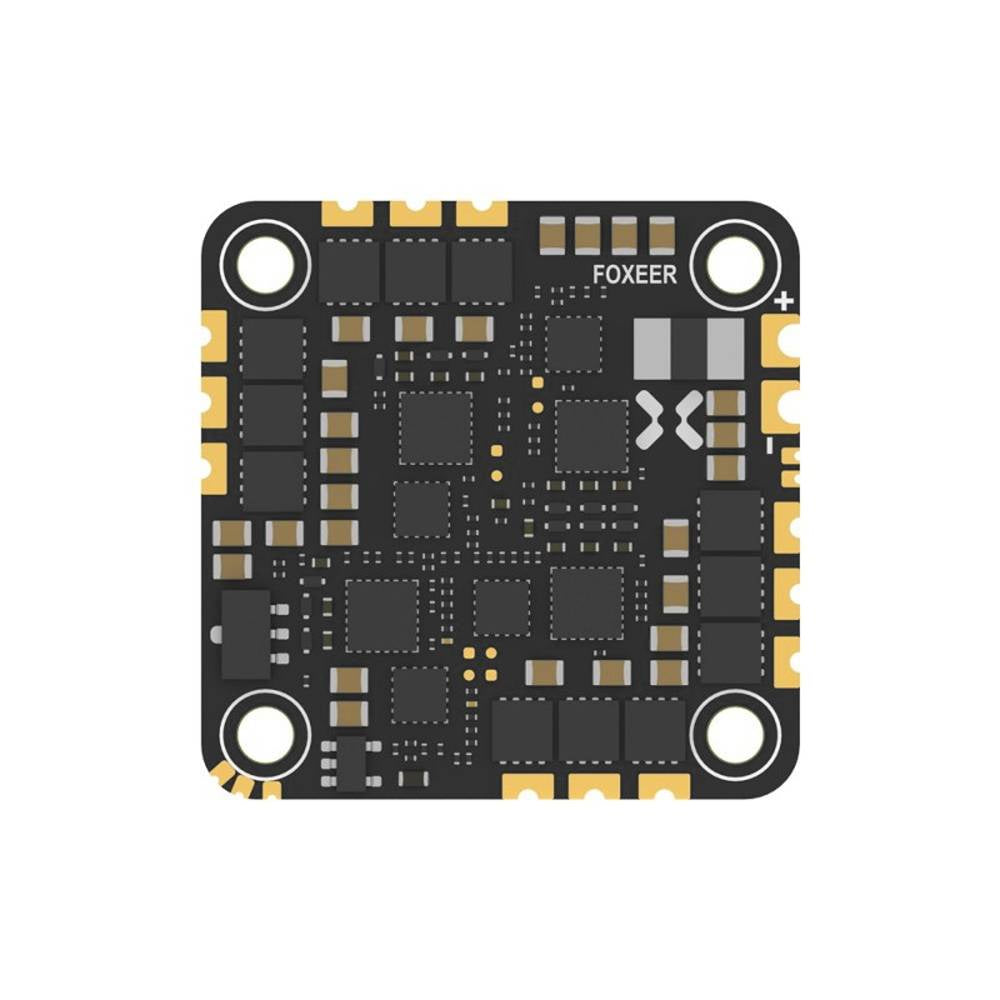

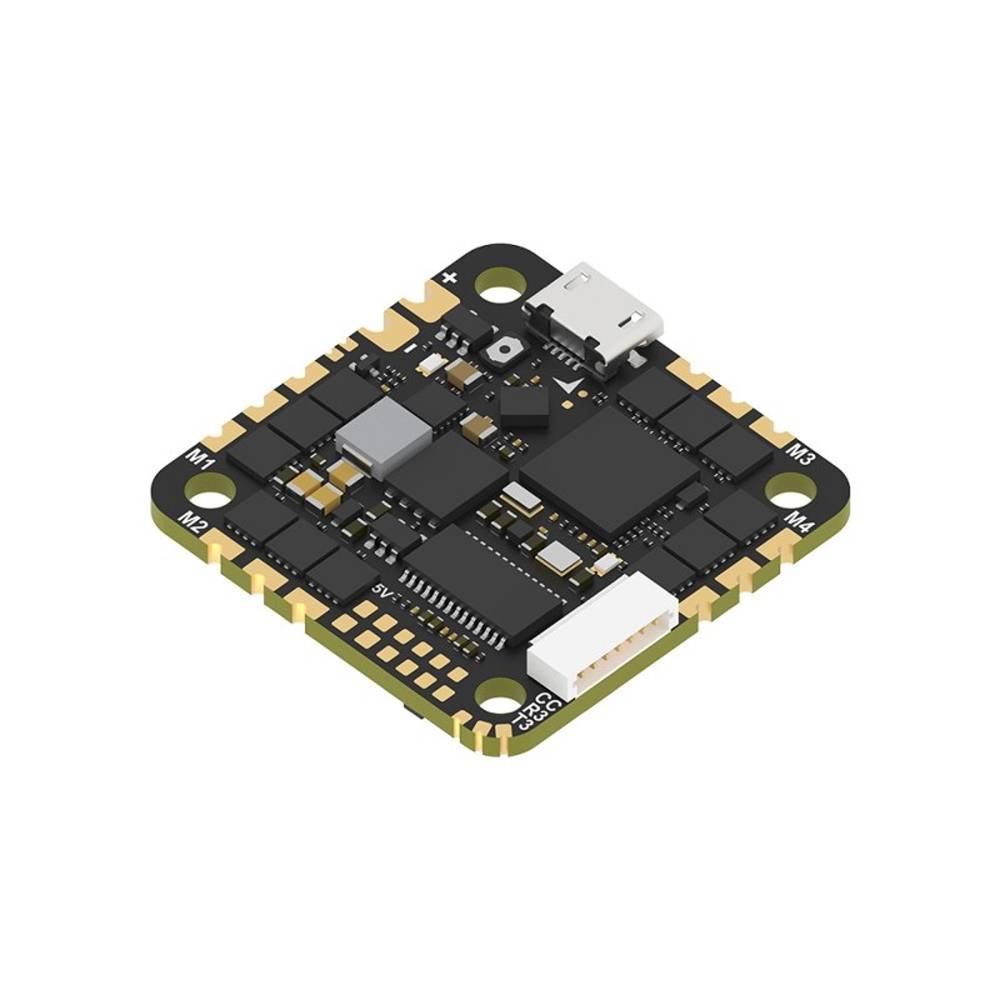

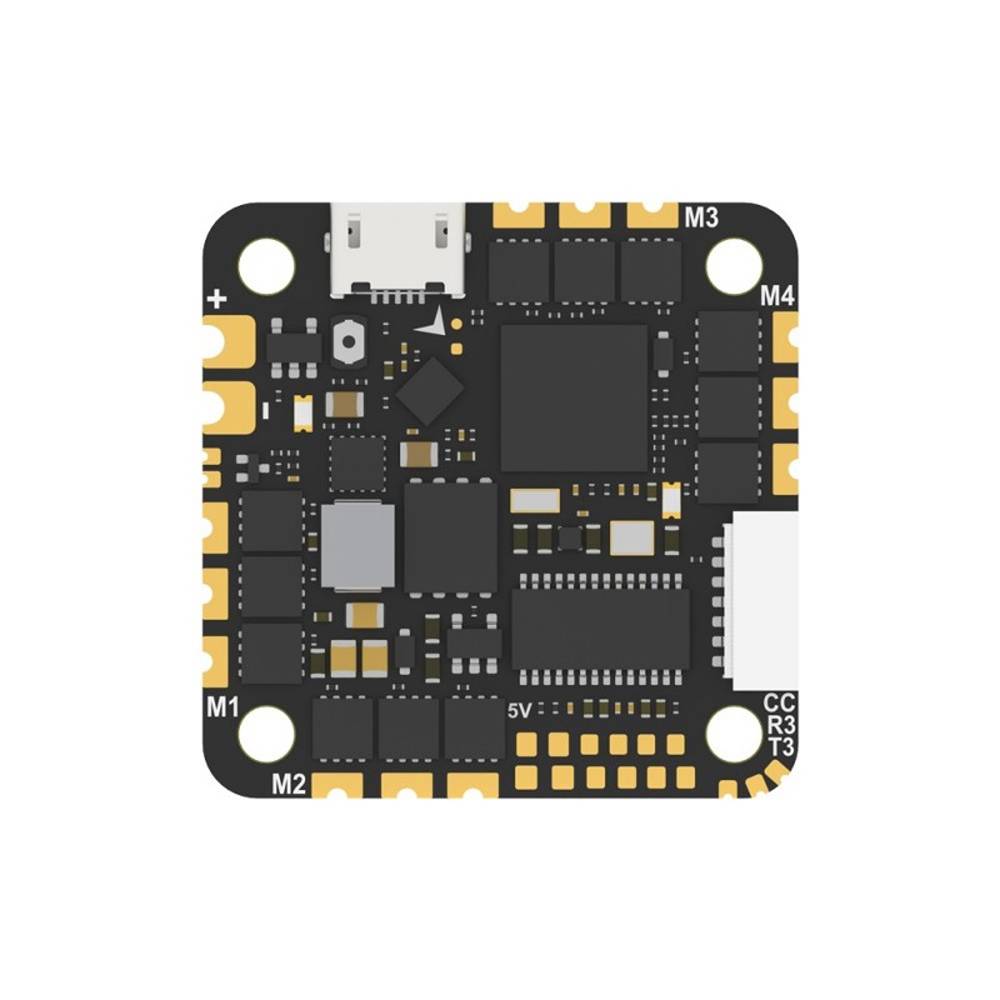

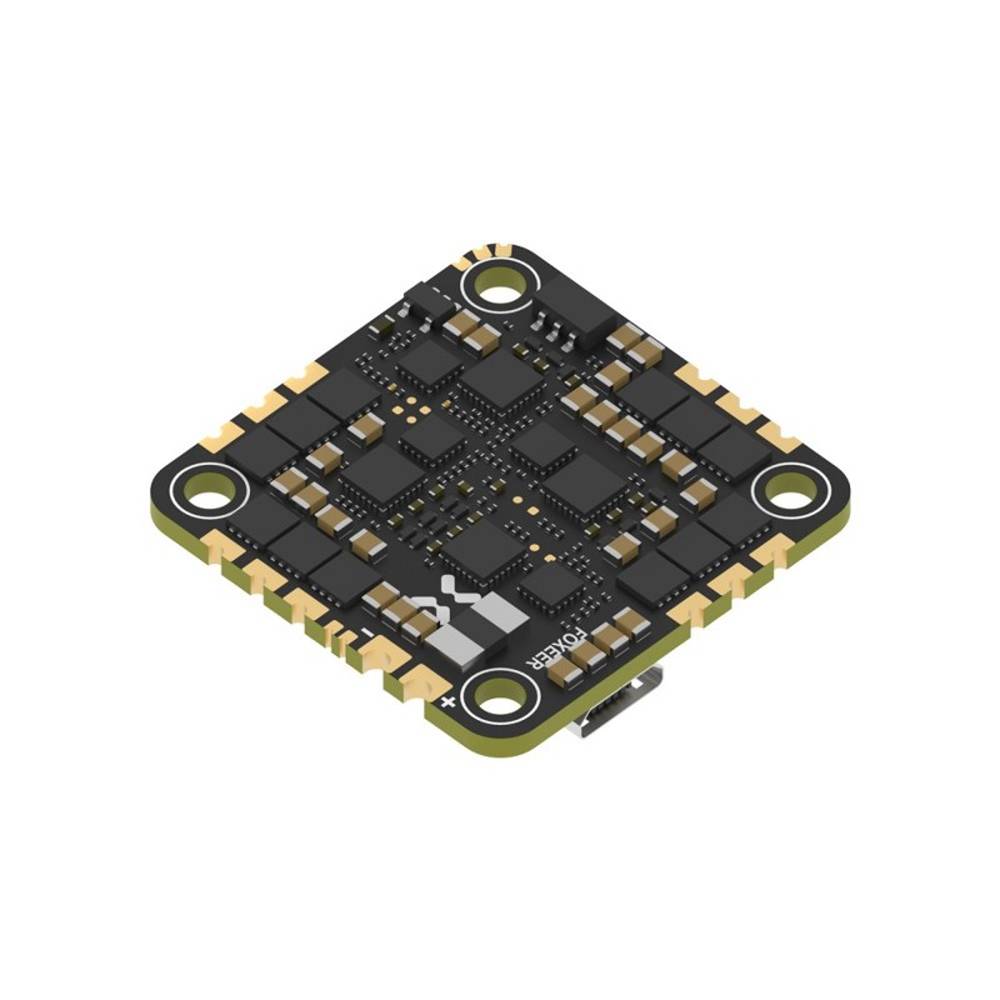

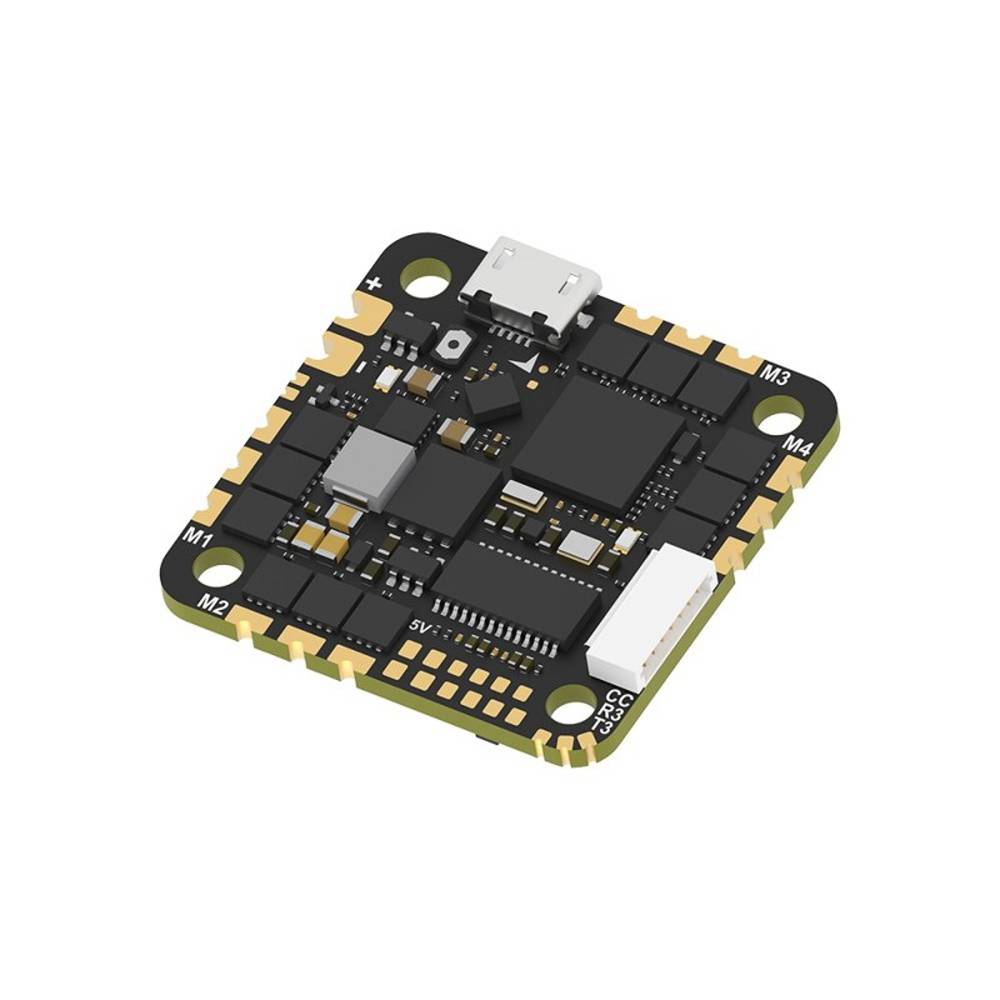

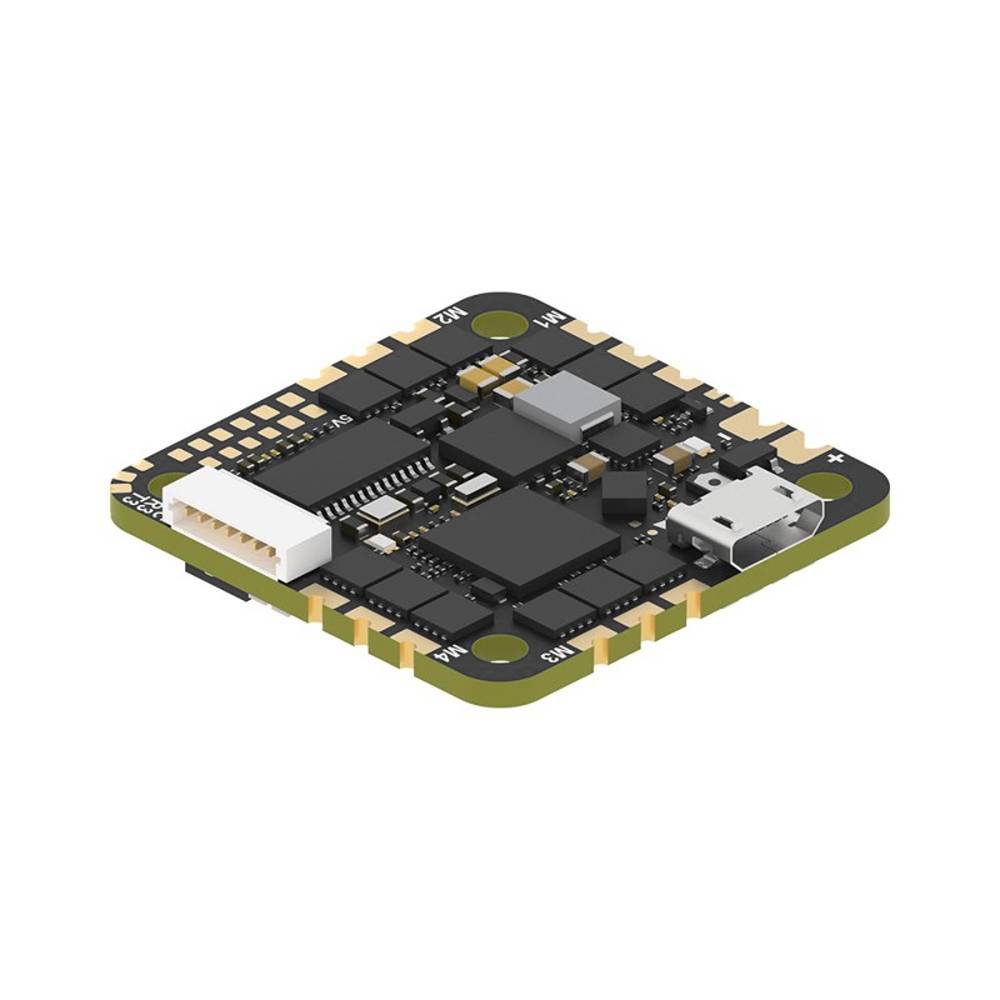

The Foxeer Reaper F745 AIO V3 features an F7 flight controller and a 45A 2-6S BLHeli_S 4-in-1 Bluejay ESC.
Features
- 45A BLHeli_S ESC with Bluejay Firmware
- F745 Flight Controller
- 16M Blackbox
- 5 UARTs
Specifications
- Firmware: Bluejay: G-H-30-96-v0.16/ BLS: G-H-30 16.7
- ESC Programming: Bluejay(default)/BLHeli-S optional
- Continuous /Burst Current: 45A x 4/ 50A x 4
- Mounting Hole: 25.5X25.5mm, Φ3mm/M2
- Fireware: BF: FOXE-FOXEERF745V3_AIO
- Input Voltage: 2~6S Lipo(8.4~25.2V)
- DJI/Vista Connector: Supported, 7pin
- Power Supply: 2~6S Lipo(8.4~25.2V)
- Working Temperature: -20℃ ~ +55℃
- Storage Temperature: -20℃ ~ +70℃
- Stick Programming: Supported
- Model: FOXEER Reaper AIO V3
- Black Box: 16M Flash Memory
- Working Humidity: 20～95%
- Input signal: Dshot300/600
- Current sensor: Supported
- BEC Output: DC5V/2.5A
- Size: 32.5X32.5mm
- Current scale: 100
- CPU: STM32F745
- USB: Micro USB
- Weight(g): 8.9g
- Telemetry: No
- OSD: BF OSD
- UART: 5 Set
Includes
- 1x Foxeer Reaper F745 AIO V3 - F7 FC + 45A 2-6S BLHeli_S 4-in-1 Bluejay ESC
- 1x Rubycon 35V 470uF Capacitor
- 1x AMASS XT60H-M Connector
- 1x 16AWG Black Wire
- 1x 14AWG Black Wire
- 1x 16AWG Red Wire
- 1x 14AWG Red Wire
- 1x 6-Pin FC Wire
- 1x Hardware Kit
