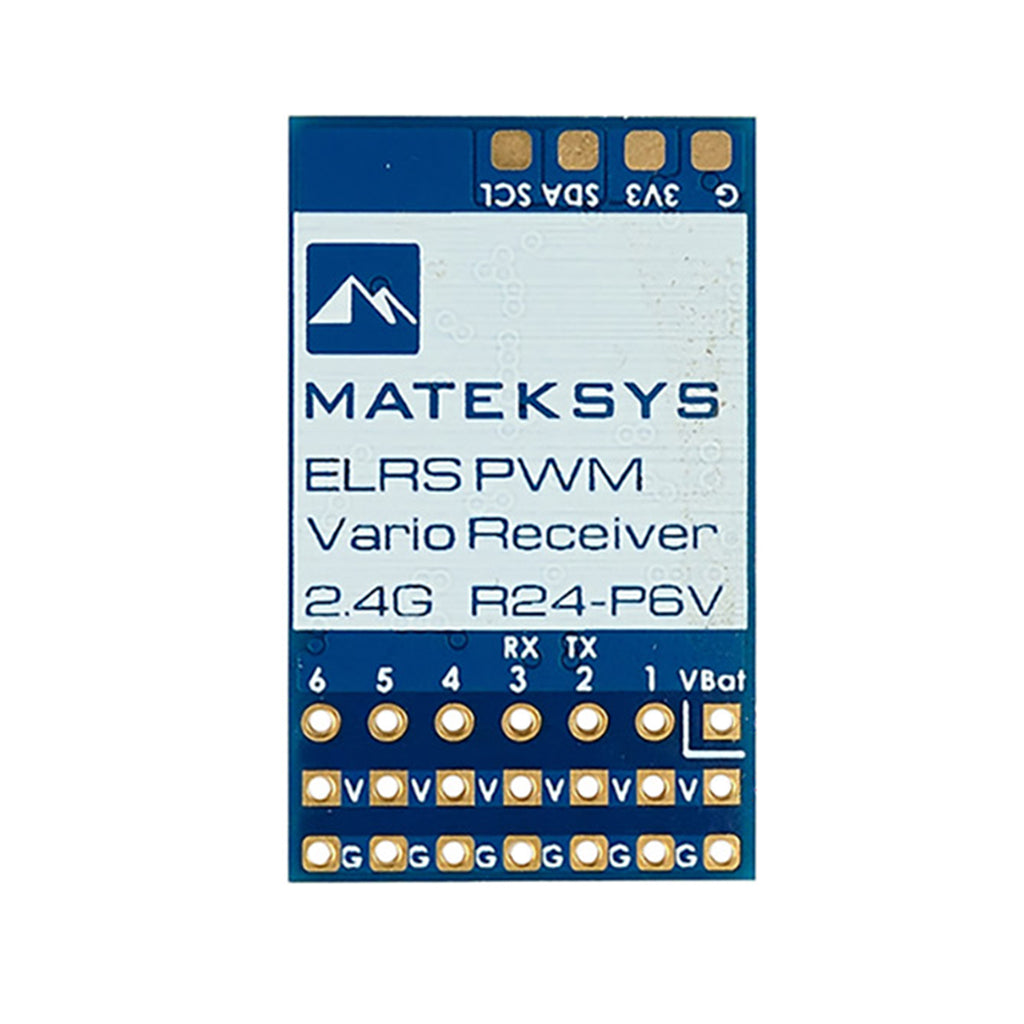

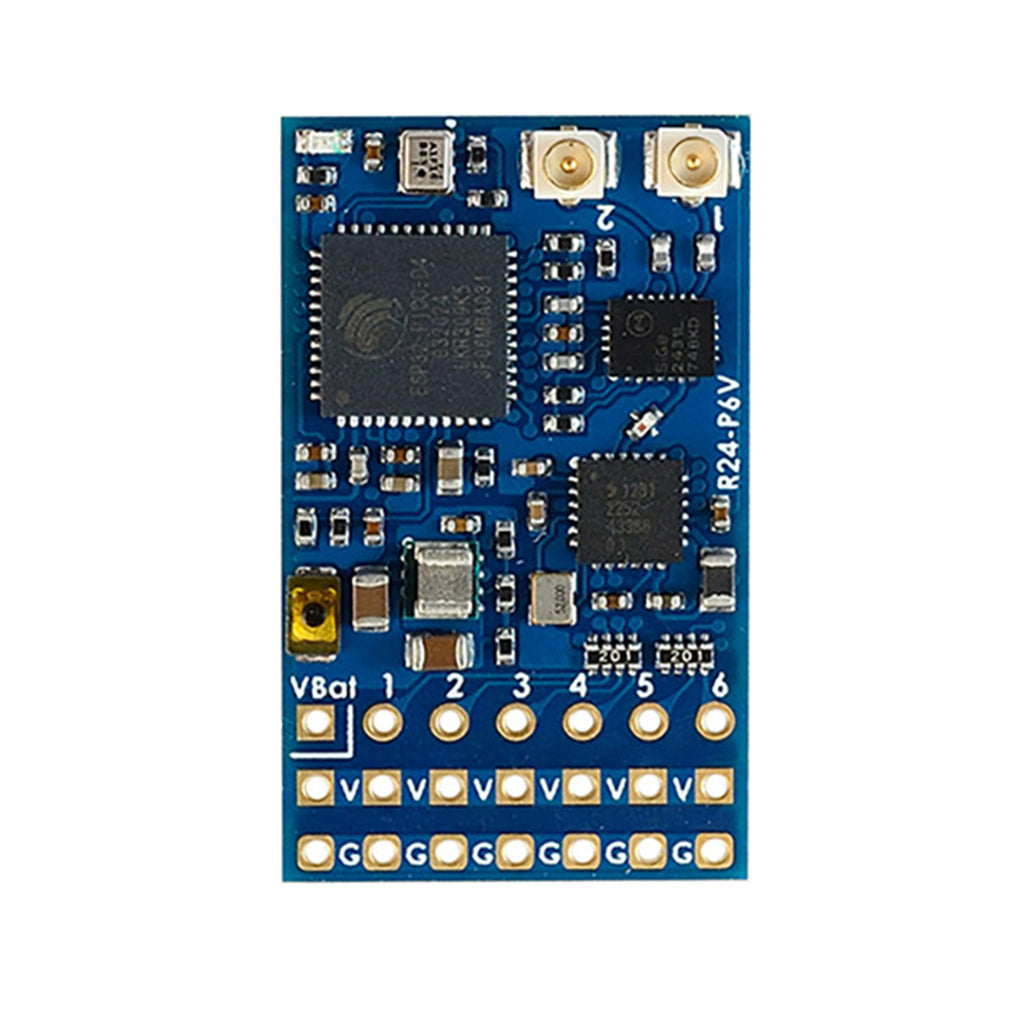

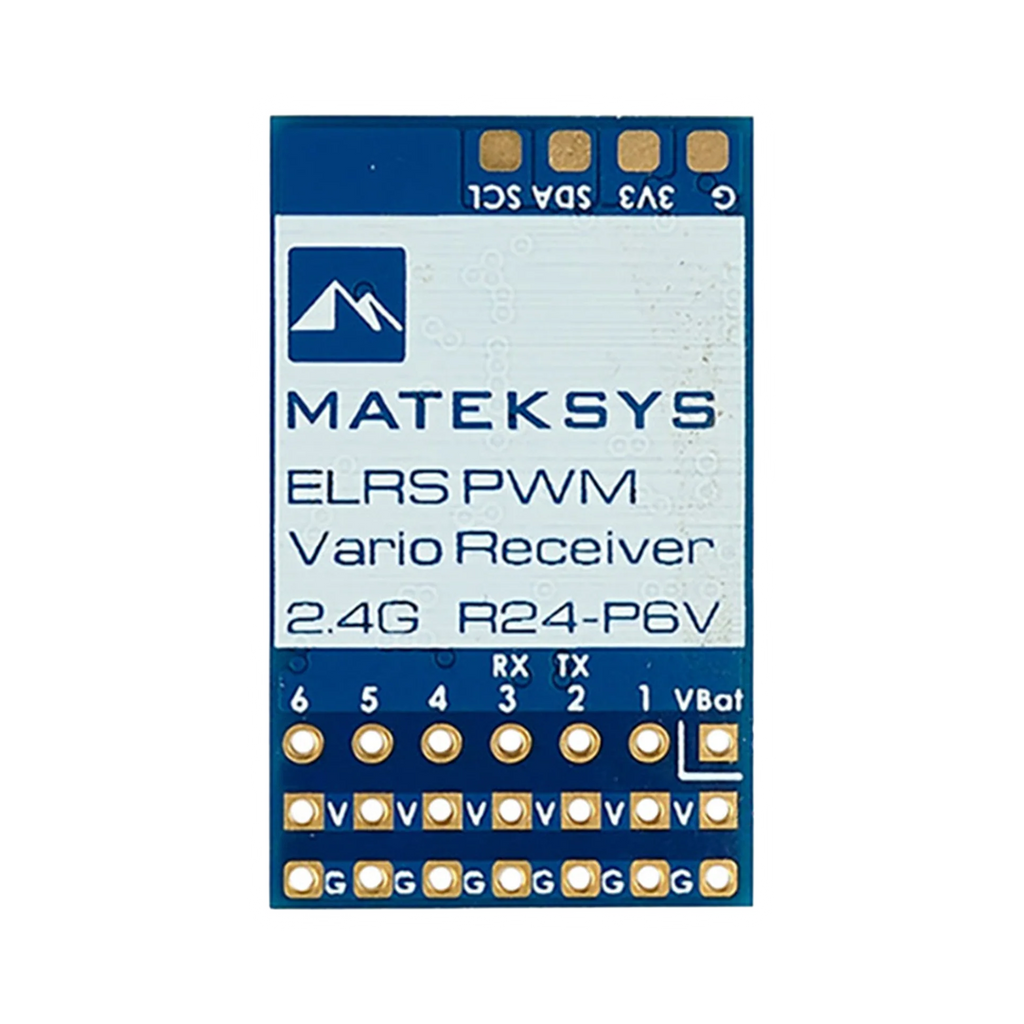

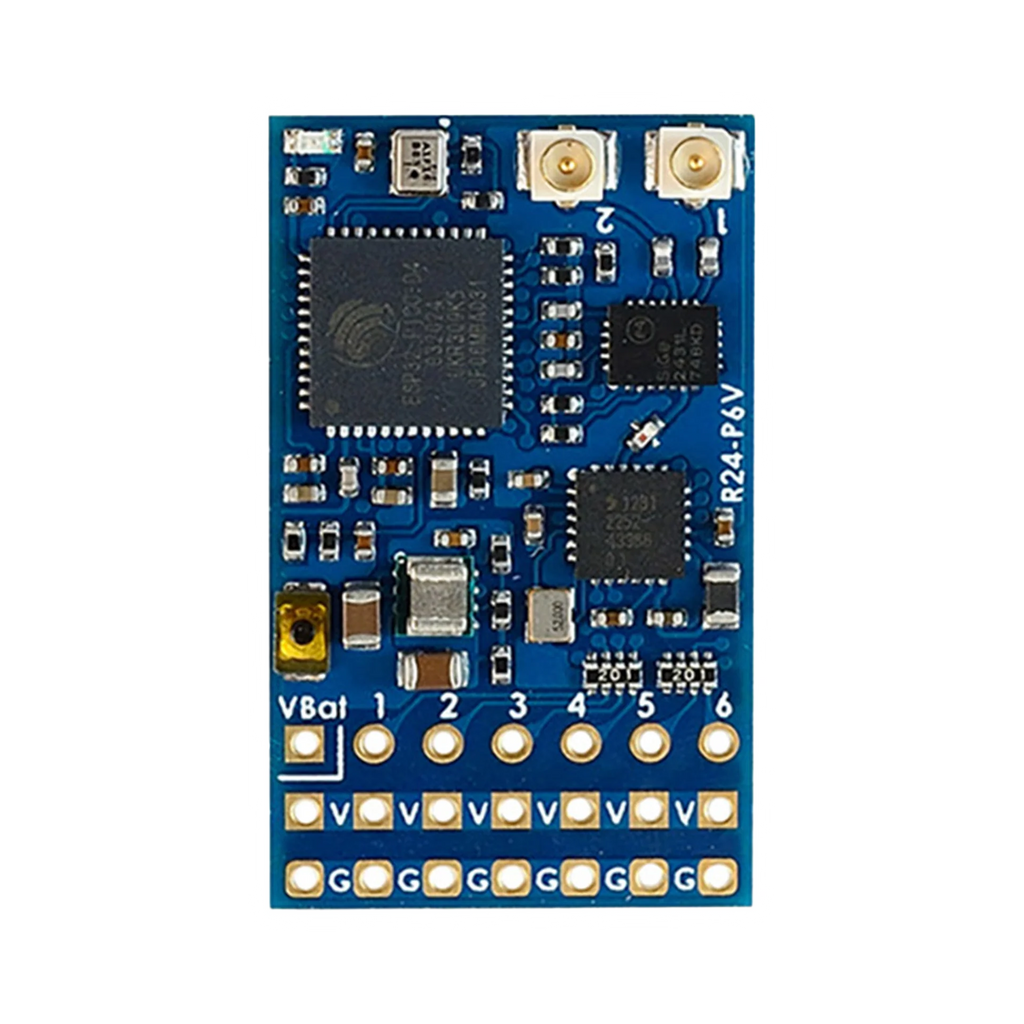

Matek ExpressLRS 2.4GHz PWM Vario Receiver ELRS-R24-P6V (2.4ghz)

Are you looking to buy Matek ExpressLRS 2.4GHz PWM Vario Receiver ELRS-R24-P6V (2.4ghz) in Australia?

The Matek ExpressLRS 2.4GHz PWM Vario Receiver, R24-P6V, designed for high-performance remote control aviation

Features

• High-Performance Signal Reception: Provides stable signal reception for precise control.
• Versatile Compatibility: Seamlessly integrates with ExpressLRS systems.
• Customisable PWM Vario Control: Allows for adjustable flight control parameters.
• Durable Build Quality: Built to withstand frequent flying.
• Compact and Lightweight Design: Weighs only 4 grams and measures 30mm x 18mm, fitting into most setups without adding bulk.

Specifications

• ESP32-PICO-D4, SX1281, ExpressLRS Firmware
• PA/LNA: SE2431L
• RF Frequency: 2.4GHz ISM
• Telemetry power: 22.5dbm (180mW)
• Diversity: Antenna-switching, default ANT1
• Barometer SPL06-001 (Vario)
• Receiver output:  6x PWM CH
• VBAT voltage sense: 0~25.5V
• Antenna connector: IPEX MHF-1
• Power supply: 4-13V DC @ “V” Pad
• Power dissipation:  60mA~80mA@5V IN
• PCB size: 30mm x 18mm
• Weight: 4g w/ antenna

Includes

• 1x ELRS-R24-P6V
• 2x IPEX MHF1 Antennas. 15cm
• Dupont 2.54 pins  (Board is shipped unsoldered)
