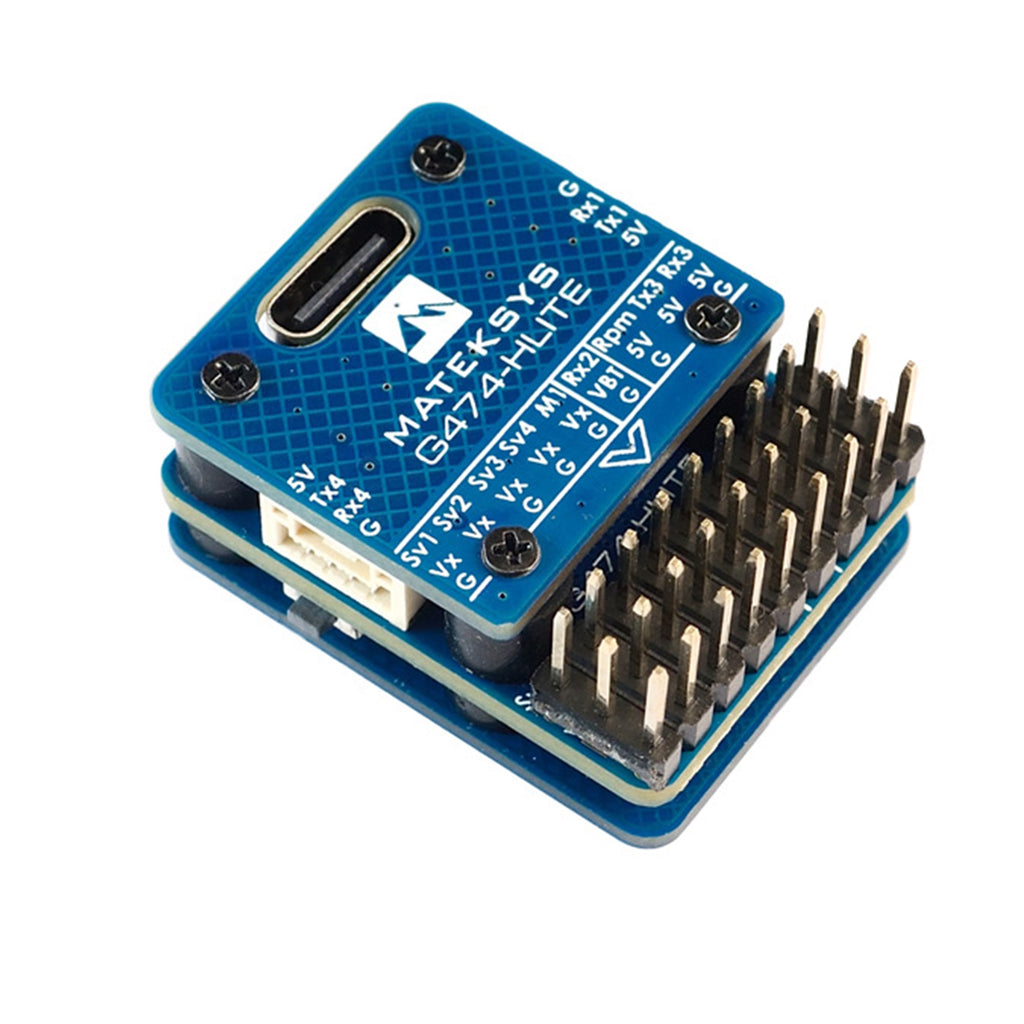

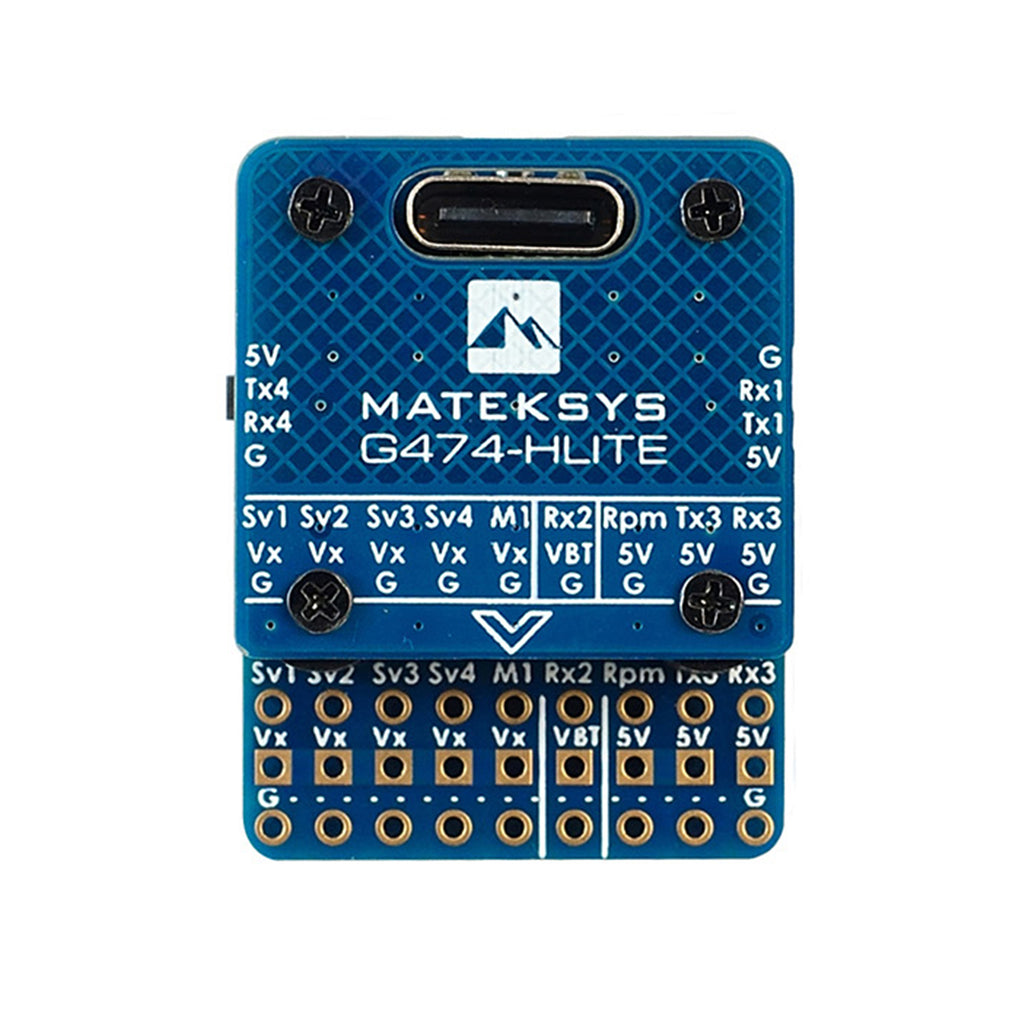

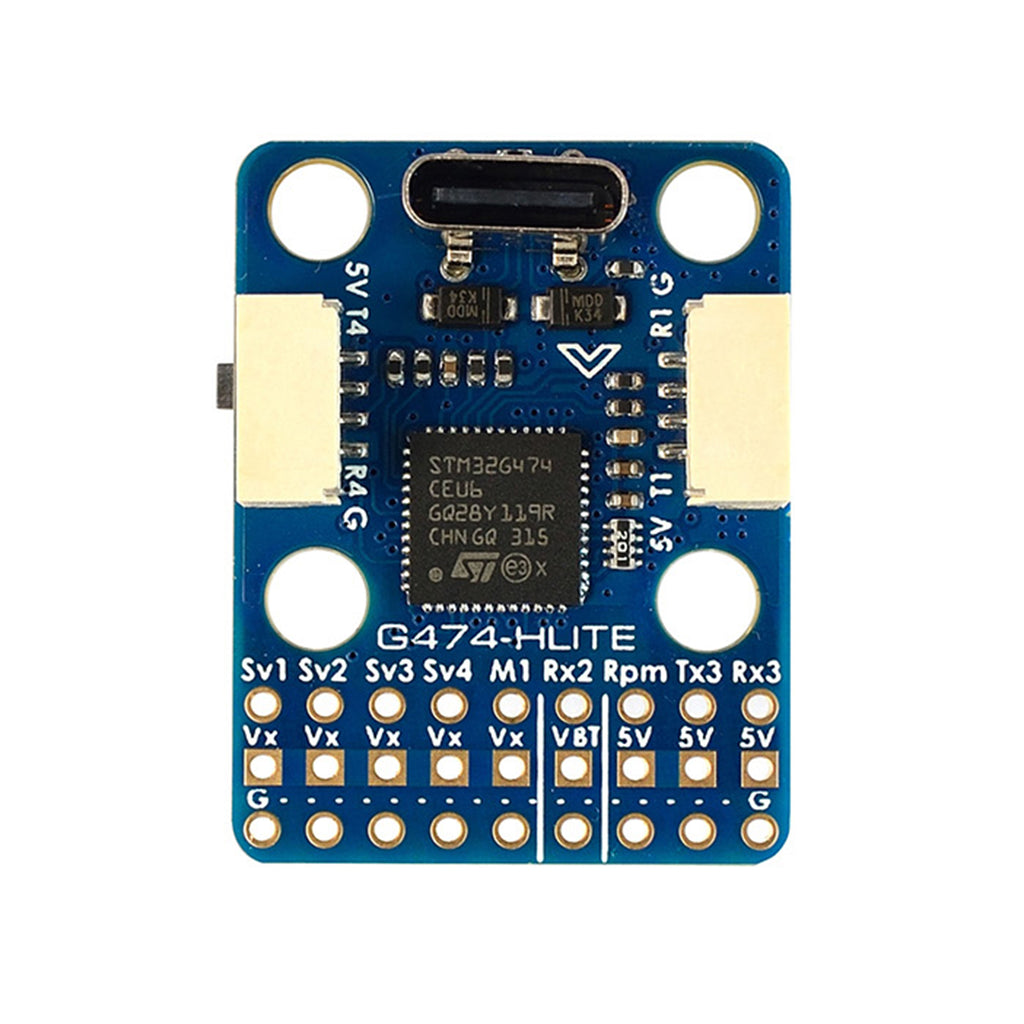

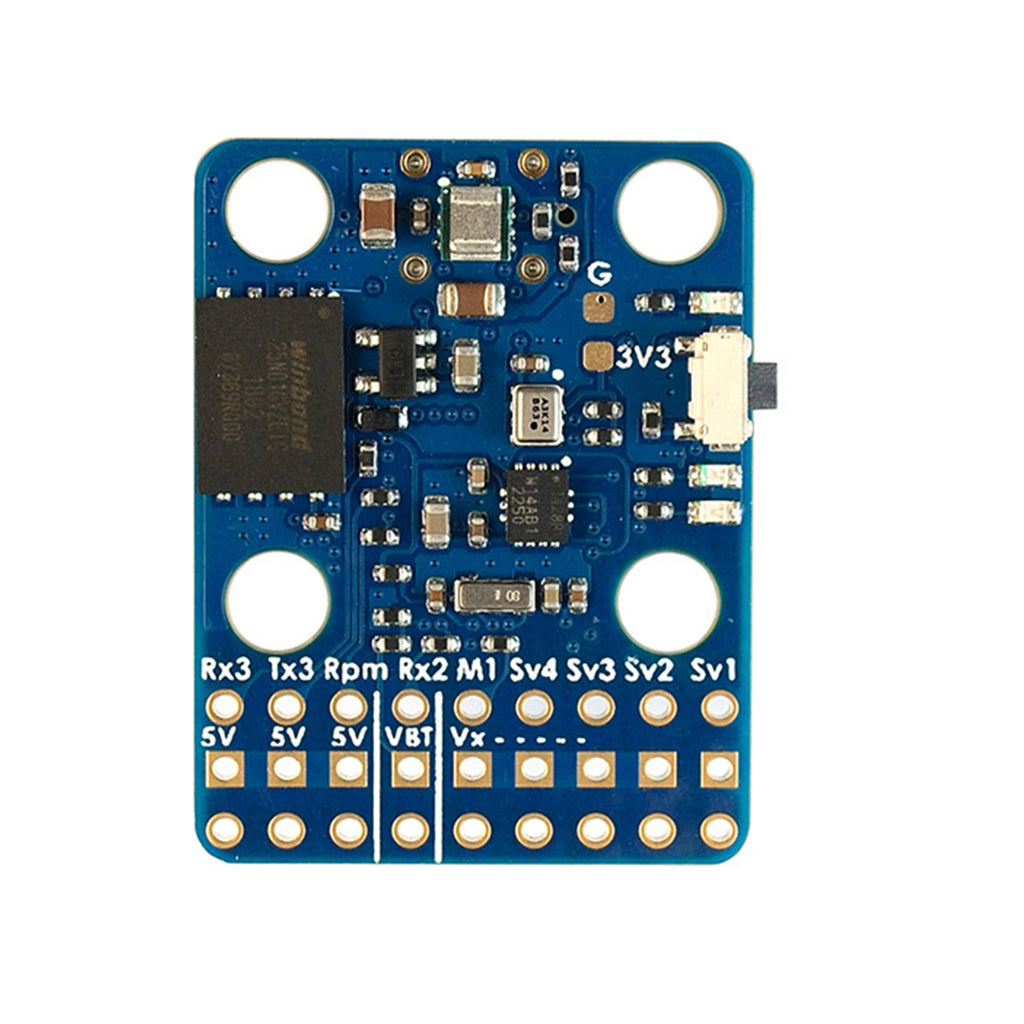

Matek RC Helicopter Flybarless Controller G474-HLITE EOL
$69.95 AUD
Skip to product information
2 In stock
Matek RC Helicopter Flybarless Controller G474-HLITE EOL
$69.95 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup available
1/80 Somersby falls RD, Somersby NSW
Usually ready in 2 hours
SKU:
31005
Shipping Weight:
25g
W/H:
U-04-C-02
Categories:
F4 Flight Controllers, Flight Controllers, ICM42688-P Gyro FPV Flight Controllers, Matek, Matek Flight Controller, Wing Flight Controllers
Tags:
F4, ICM42688-P, Wing FC
Are you looking to buy Matek RC Helicopter Flybarless Controller G474-HLITE EOL in Australia?
Specifications
- MCU: STM32G474CE, 170MHz Cortex-M4 , 512KB Flash
- IMU: ICM42688-P
- Baro: SPL06
- Blackbox: 128MB Flash (1G-bit NAND)
- 3.5x UARTs (full UART1/UART3/UART4, and UART2_Rx)
- 6x PWM (4x Servos, 1x Motors, RPM)
- 1x ADC (VBAT sense)
- No I2C pad breakout
- USB Type-C(USB2.0)
- Electrical characteristics
- Input voltage range: 4.5V~14V on “Vx” pad
- BEC 5V 1.5A output for FC components and peripherals
- Battery Voltage divider 1K:10K (Scale 110)
- Static power: 60mA@5V
- No current sensor integrated.
- Physical
- Dimensions: 30 x 23 x H13 mm
- Mounting: 16 x 16mm, Φ4mm with Grommets Φ3mm
- Weight: 9g (w/o pins)
- 3D step file
Includes
- 1x G474-HLITE
- 2x 20cm JST-GH-4P to JST-GH-4P cable
- Dupont 2.54 pins (Board is shipped unsoldered)
