Miniware Digital Oscilloscope DS213 (Quad Channel) [DG]

Are you looking to buy a Miniware Digital Oscilloscope DS213 in Australia?

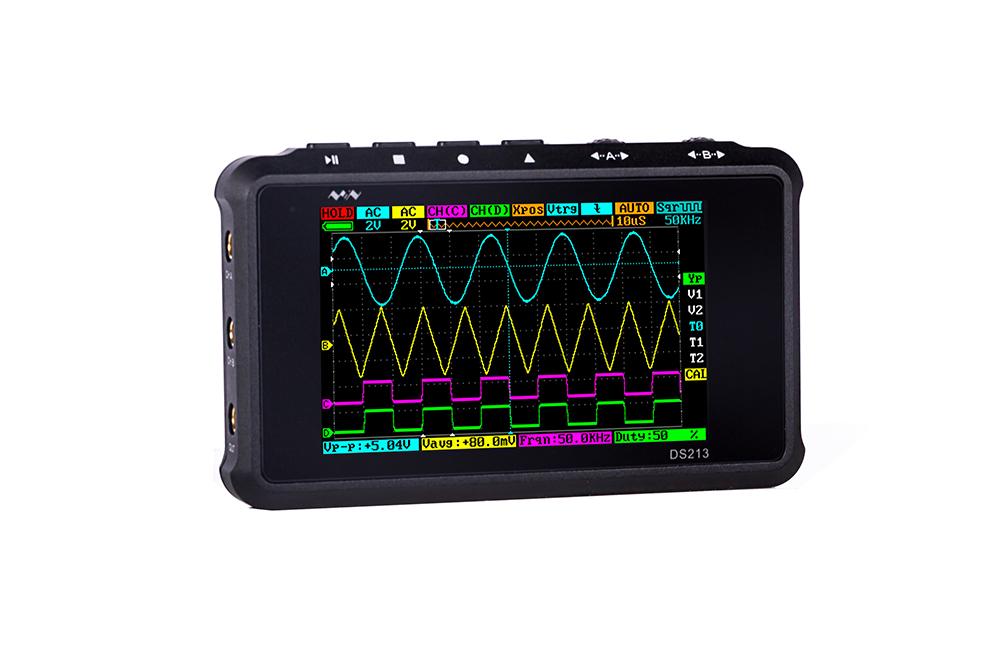

DS213 (Mini DSO/ DSO Quad) is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks.

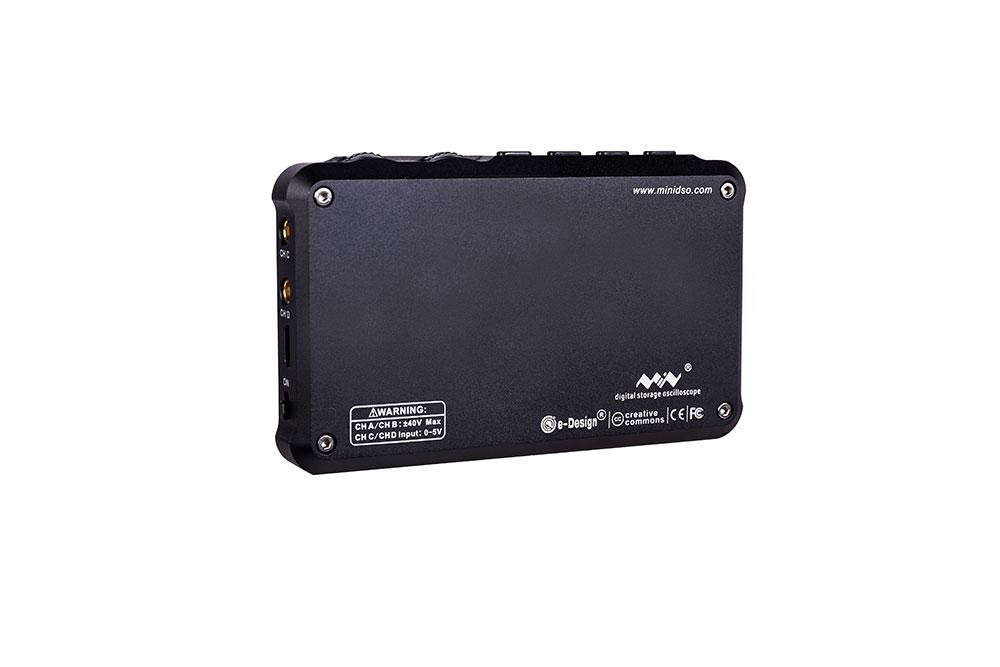

 Feature

• It is a pocket size digital storage oscilloscope is small enough to take it anywhere，and fulfills basic electronic engineering requirements;
• DS213 is a “5-track, 4-wave line” digital storage oscilloscope for general-purpose electronic engineering task and it is based on ARM Cortex M3 core;
• DS213 uses FPGA to manage external ADC’s control and data cache mode;
• It provides 4 application partitions for loading and upgrading up to 4 different application firmware;
• Inbuilt 8MB U-disk storage for waveform data and images;
• Can be powered by internal batteries, so in the field measurement, the ground wire is completely suspended, can be exactly like a multi-meter, point where to measure, without considering the problem of grounding isolation;
• The oscilloscope code application layer is open source;
• Users can develop firmware according to different needs;
• Can meet the demands in many fields, such as, school experiments, electronic repairing, and electric engineering.

Specification

• Operation: Button, Encoder
• Channels: 2 Analog channels+2 Digital channels
• H Sensitivity: 100nS/Div~1S/Div. (1-2-5 sequence step)
• V Sensitivity: 10mV-10V/div（1-2-5 STEP）（with X1 Probe Analyzer）
  100mV-100V/div（1-2-5 STEP）（with X10 Probe Analyzer）
• Trigger Mode: Ascend / Descend Edge Trigger Mode, Positive / Negative Pulse Trigger, Logic Trigger
• Math Waveforms: INV A, INV B, A+B, A-B, C&D, C|D, RecA, RecB, RecC, RecD
• Inbuilt Signal Generator: Sine / Square / Triangle / Sawtooth Wave
• Synchronous Mode: Auto, Normal, Single, Slow
• Auto Measurement: Signal Sequence / Cycle / Duty Ratio Peak Voltage / Virtual Value / Max Value / Min Value / Average
• Open Source: Application Layer Open-Source
• MCU: STM32F103VE
• ADC: HWD9288
• Analog Bandwidth: 15MHz
• Max Sample Rate: 100MSa/s
• Max Sample Memory Depth: 4K
• Analog Input Impedance: 1MΩ
• Coupling: DC / AC
•  AUTO_FIT: None
• Weight: 129g

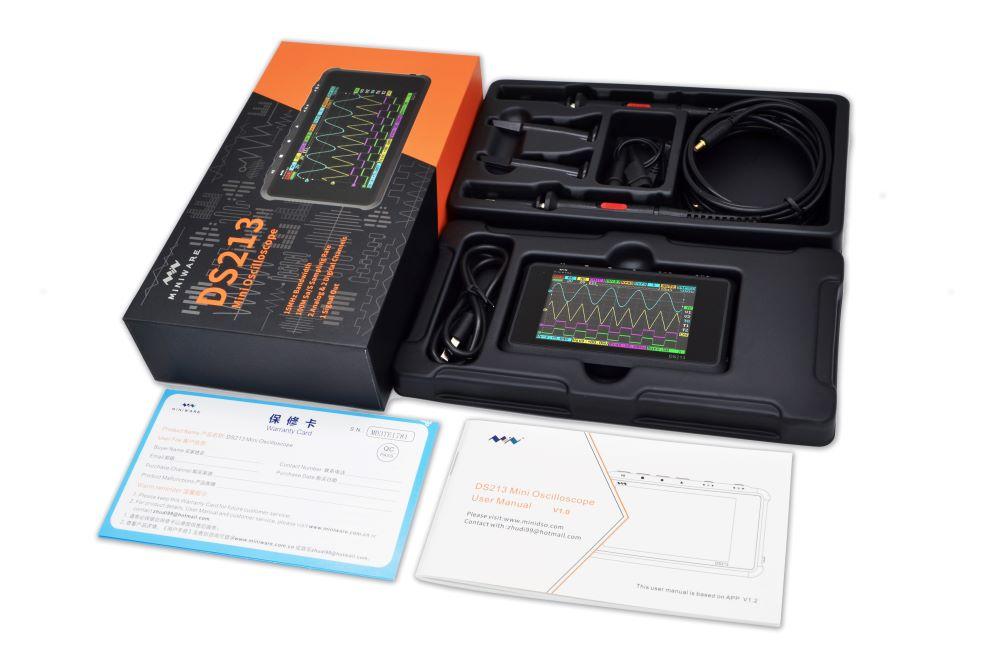

Package List

• DS213 (Black Color) ✖ 1
• X10 Probe Analyzer ✖ 1
• X1 Probe Analyzer ✖ 1
• Hex Key ✖ 1
• Safety Instructions ✖ 1
