Product details


Are you looking to buy NewbeeDrone Unicorn 6mm Brushed motors in Australia?

Introducing the newest brushed motor from Newbeedrone. With windings made from the tail hairs of the elusive unicorn bee, these are some of the fastest brushed motors out in the wild.

These work best with the cockroach frame if each of the nubs supporting the motors from the bottom are trimmed down 2mm (optional). These are even faster than our Gold Motors. While flight time is decreased, grins per minute are definitely up. If you have been itching for some more speed, give these unicorns a try.





    Specifications

      Unicorn Edition Motors

      • KV: 25,500
      • Speed: 93,000 RPM (@ 3.7V)
      • Current Load: 1.0A (@ 3.7V, direct drive)
      • Lifetime Rating: 4-5 hours
      • No Load Current: 200 mA
      • Start Torque: 22 g.cm
      • Stall Current: 4500 mA
      • Terminal Resistance: 0.7 Ohms
      • Operating Voltage: 0.5 - 4.35 V

        Dimensions

        • Can Diameter: 6mm
        • Can Length: 17mm
        • Shaft Diameter: 0.8mm
        • Shaft Length: 5mm
        • Weight: 2g
        • Wire Length: 30mm
        • Plug: Micro-JST-1.25

        Package Includes

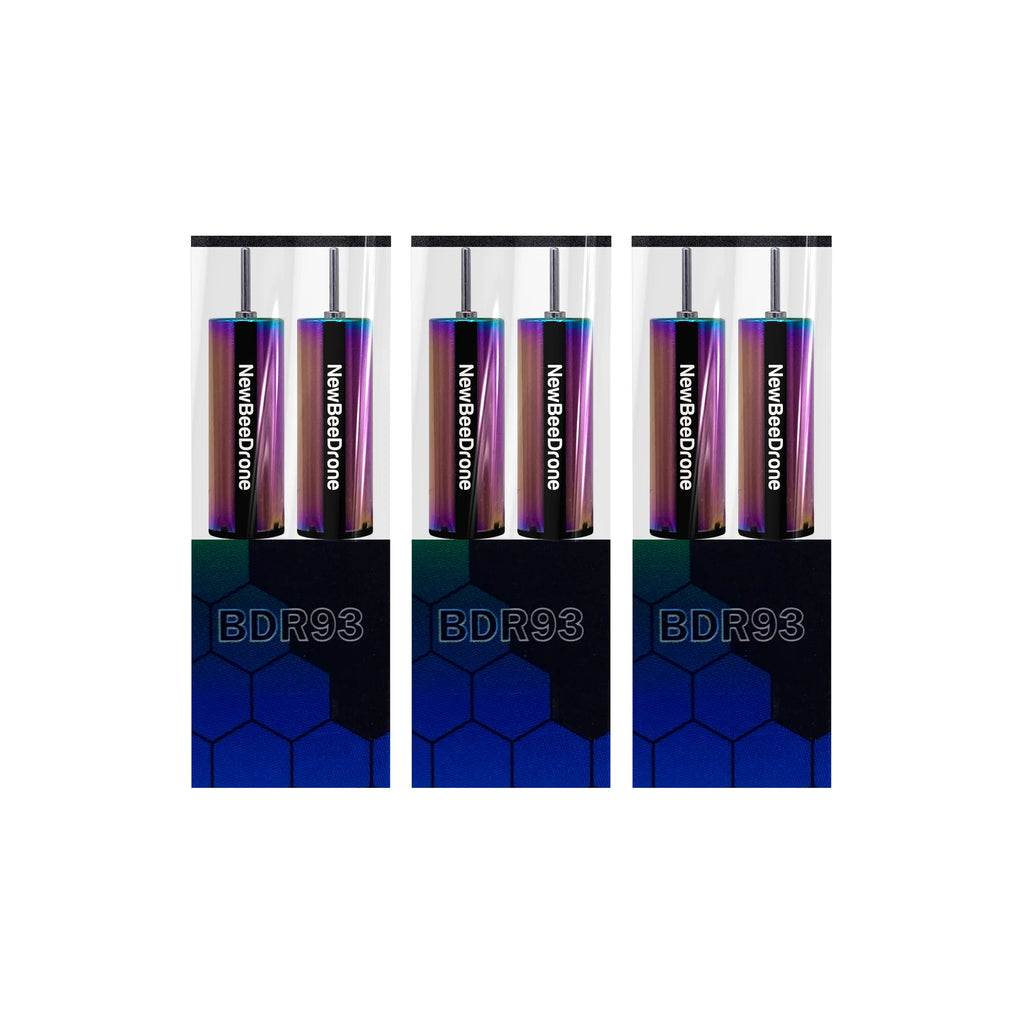

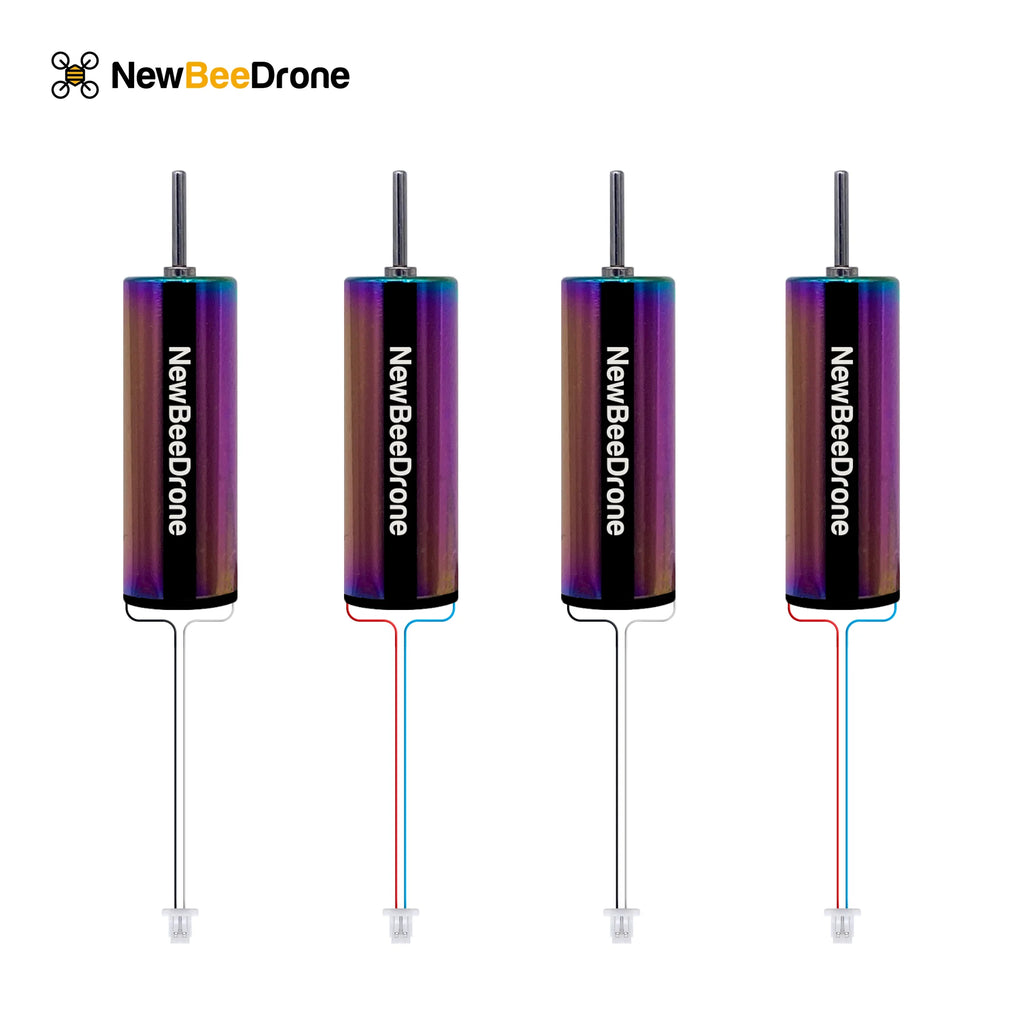

        • 4 NBD Unicorn motors (2 CW, 2 CCW)
