Are you looking to buy The Best Soldering JIG - The Jigs Up in Australia?

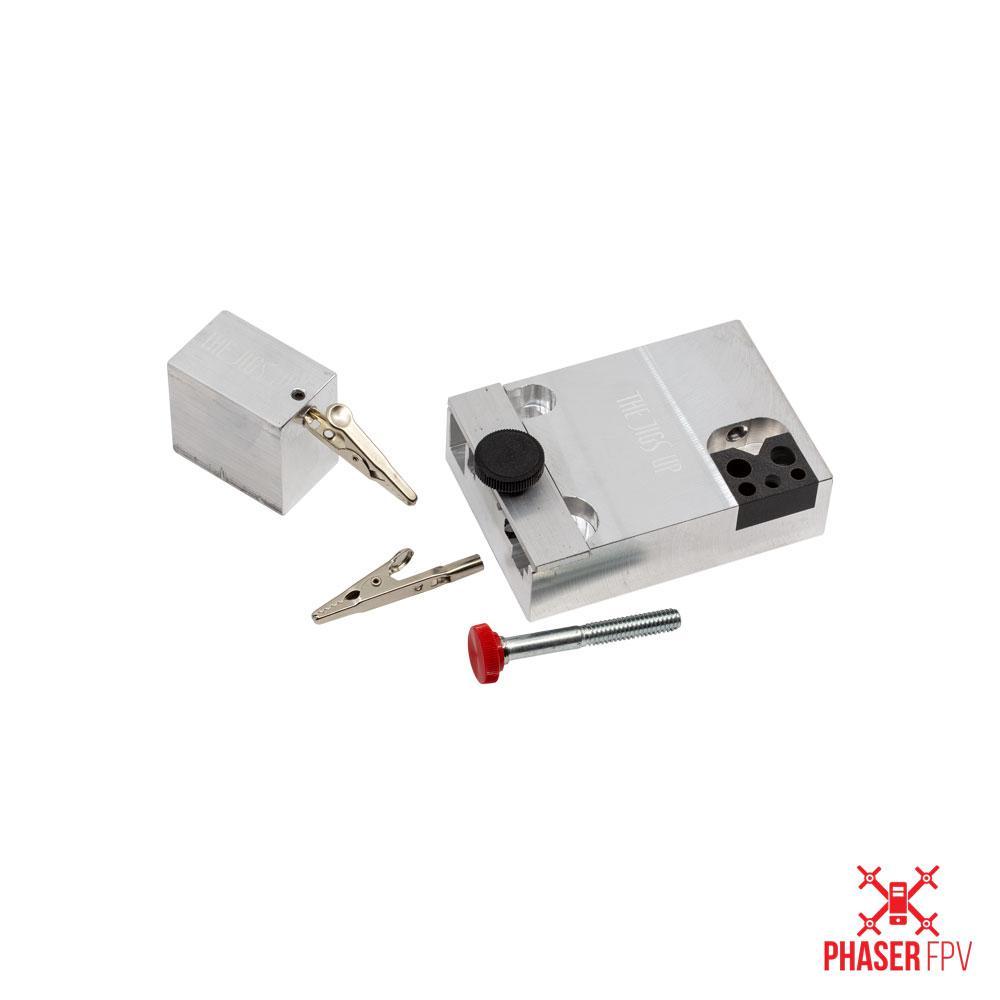

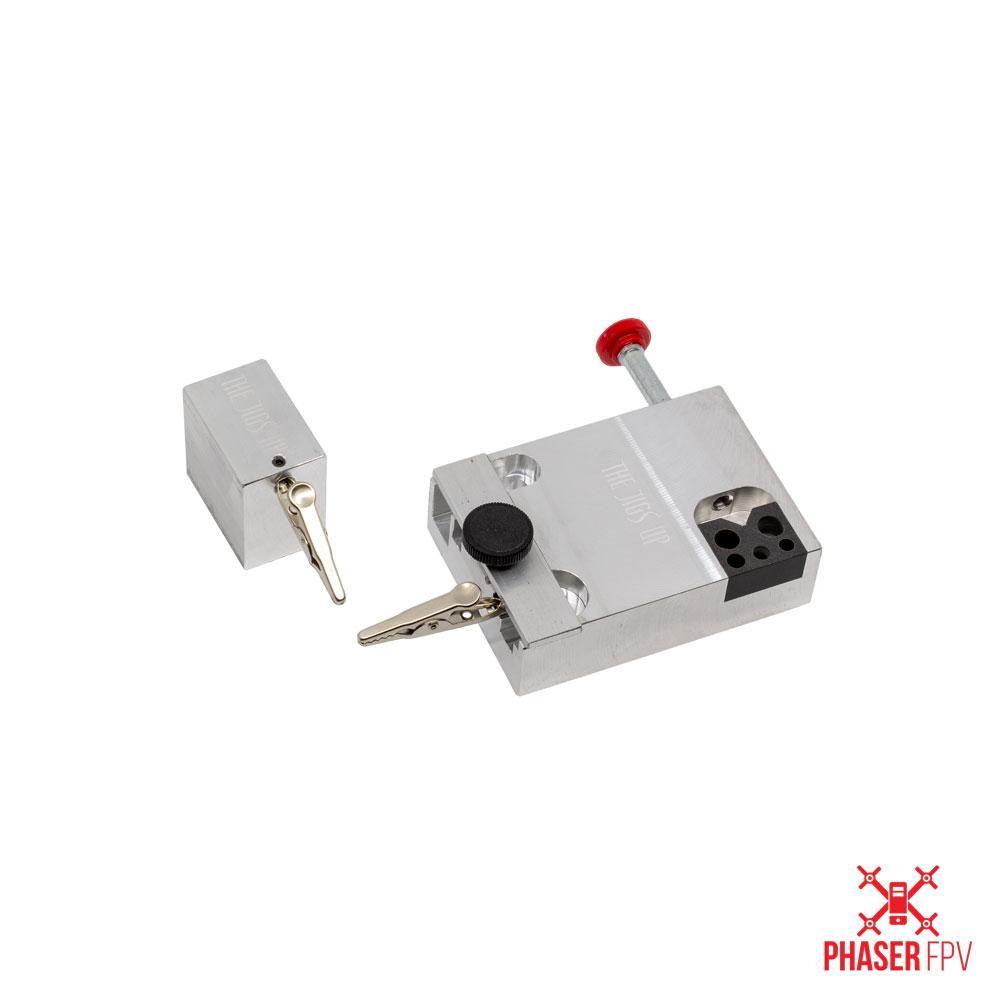

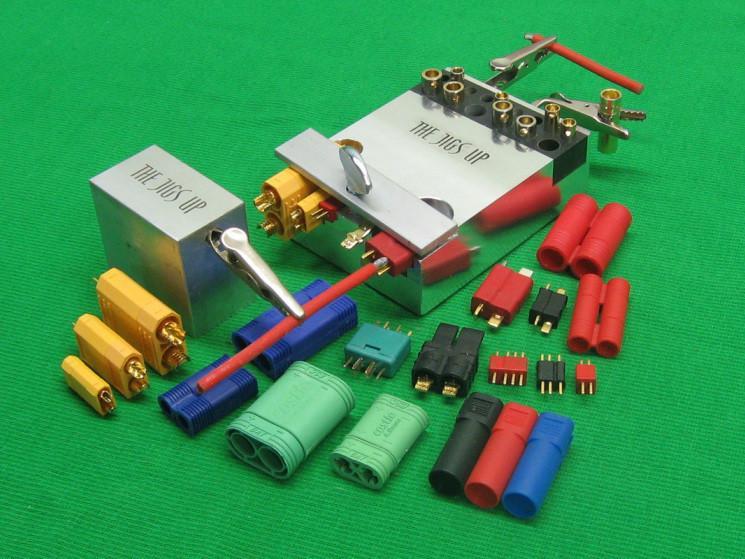

The Jigs Up quickly and securely holds and releases the following RC connectors: XT30, XT60, XT90, Deans T and mini T connectors, Traxxas, Multiplex 6 pin connector, Deans Micro 2 pin, 3 pin & 4 pin connectors and virtually any size bullet connector used for RC applications. Helping hand and alligator clips are included with your purchase. Alligator clips used in the back of the jig are a fairly tight hand pressed fit.

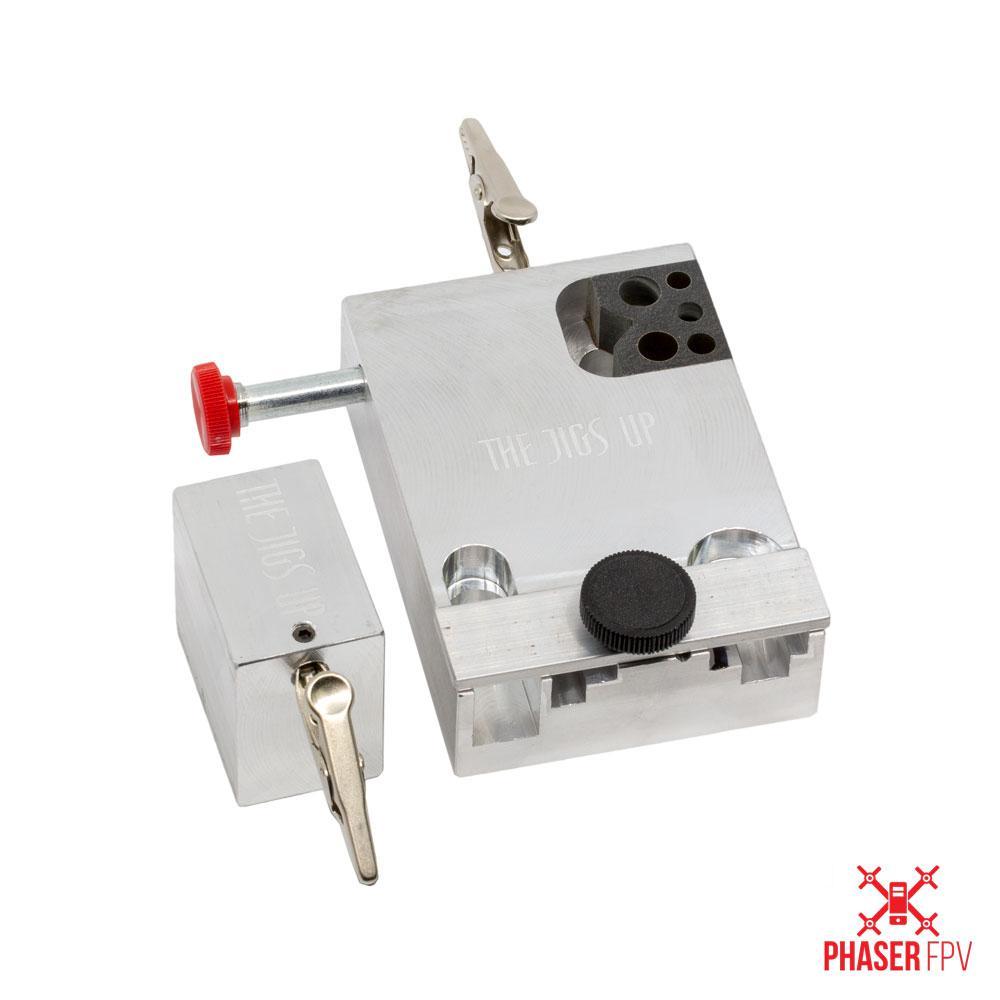

The holes on top of the jig are used to hold 3.5mm, 4mm, 5mm, 5.5mm, 6mm, 6.5 mm and 8mm bullet connectors. Note: The alligator clips are a fairly tight hand-pressed fit into the two holes that are in the back side of the jig.
The “v” slots on the front of the jig
The slot on the right side of the jig is used for
The slot on the left side of the jig is used for Deans 2-pin, 3-pin, and 4-pin micro connectors. Instructions for “The Jigs Up”
The video clip on the website will show us soldering a Deans T Connector, a 3.5mm bullet connector, and a 2mm bullet connector. ******To start out: make sure that your soldering iron is HOT!!!!
We recommend that you tin both the wire and the connector pin to be soldered with a liberal amount of solder.
Now place the wire on top of the connector pin and place the “hot” soldering tip on top of the wire until the solder melts…
Then take the soldering tip away from the wire and hold the wire in place for a few seconds until the solder cools……..
This will give you a good connection!
(Note: The Jigs Up can also be placed on top of the wire while you tin the wire)
