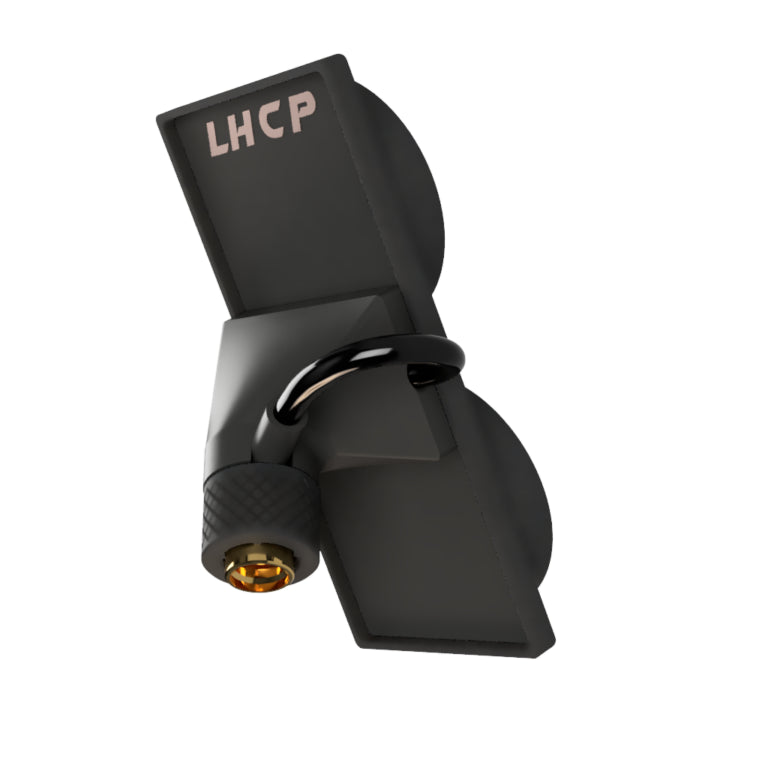

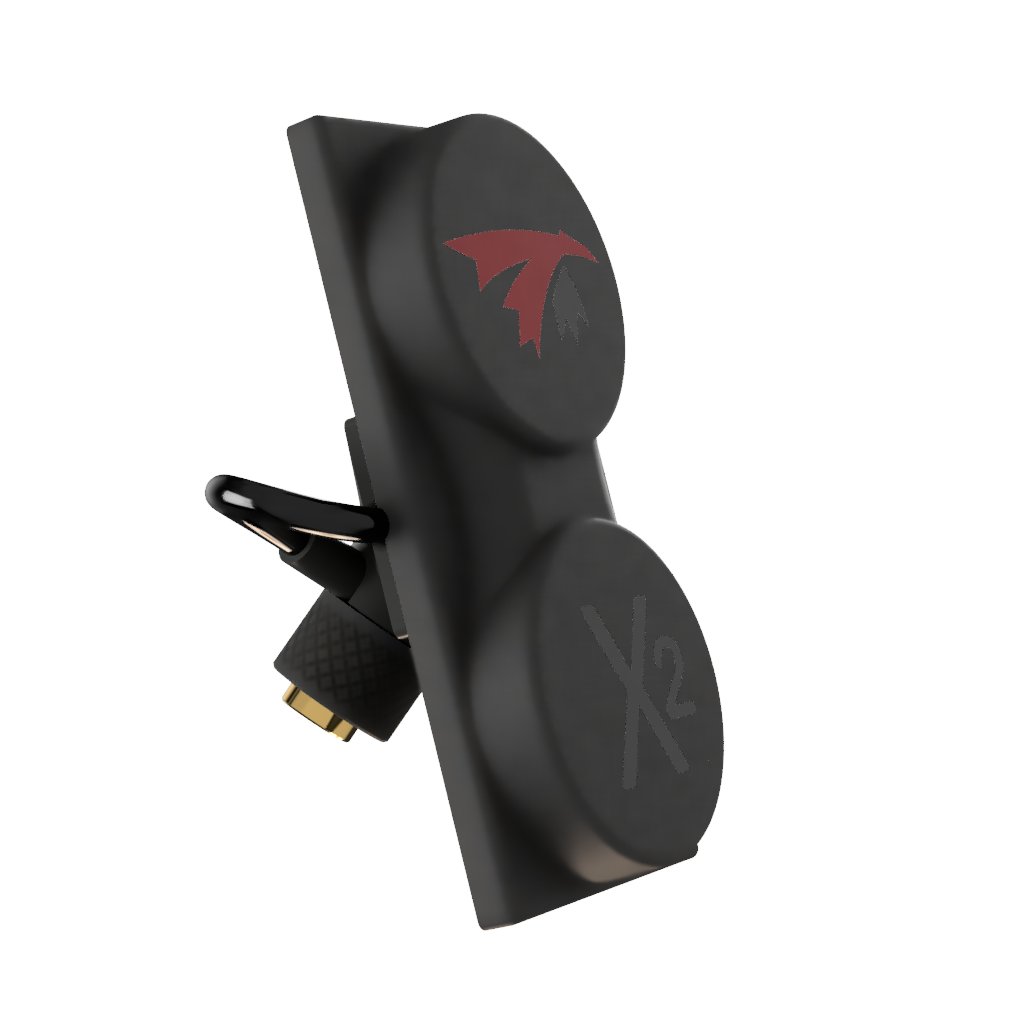

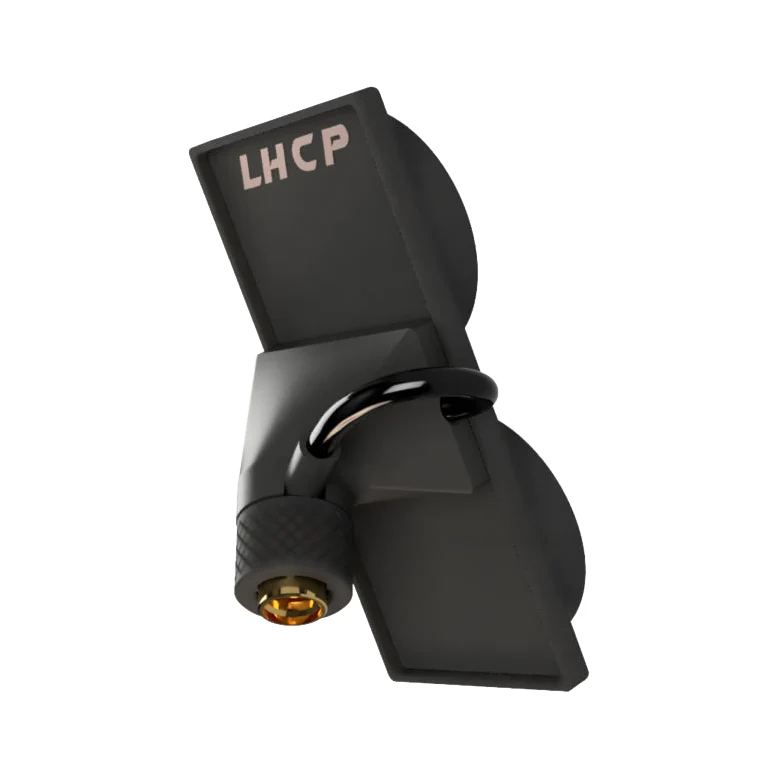

TrueRC X² Air 5.8 MK II Pair for Walksnail X

Are you looking to buy TrueRC X² Air 5.8 MK II Pair for Walksnail X in Australia?

Our high efficiency X²-AIR MK II with direct angled RP-SMA connectors for installing on the Walksnail avatar HD goggles X. Simply screw on the custom angled RP-SMA connectors on the top ports of the goggles. Great 13dBic gain combined with a healthy flyable beam width of 150deg, yield an amazing long range performances. Fill the remaining ports with singularity stubby and you got the antennas full house.

Custom made RP-SMA connectors, direct fit for your goggles.
As with all other components of X-AIR antennas, the custom RP-SMA connector is made to fit your Walksnail avatar HD goggles X without adapter and make sure they end up facing forward with little uptilt for good measure.

Paired them with our ever popular singularity stubby.
A pair of singularity stubby antennas can be included as a combo for the ultimate in performances and convenience!

Features

• Circularly Polarised
• Mount direct on Walksnail avatar or Fat Shark dominator
• Sector type beam shape (widest on horizontal)
• High 13 dBic for unsurpassed long range and signal penetration
• Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
• Super wide 150 degree Sector type beam (widest on horizontal)
• Custom RP-SMA connectors with compound angle to have the X²-air antenna face forward

Specifications

• Bandwidth: 5.1GHz-7.0GHz
• Gain: 13 dBic
• Polarization: LHCP or RHCP
• Beam-width Horizontal*: 150deg
• Beam-width Vertical*: 62deg
• Hor. beam @-3dB**: 75deg.
• Vert. beam @-3dB**: 34deg.
• Connector: Custom knurled RP-SMA
• Dimension: 72mm x 34mm x 34mm

*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.

Includes

• Two X²-air MKII antennas.
• Two singularity stubby (optional).
