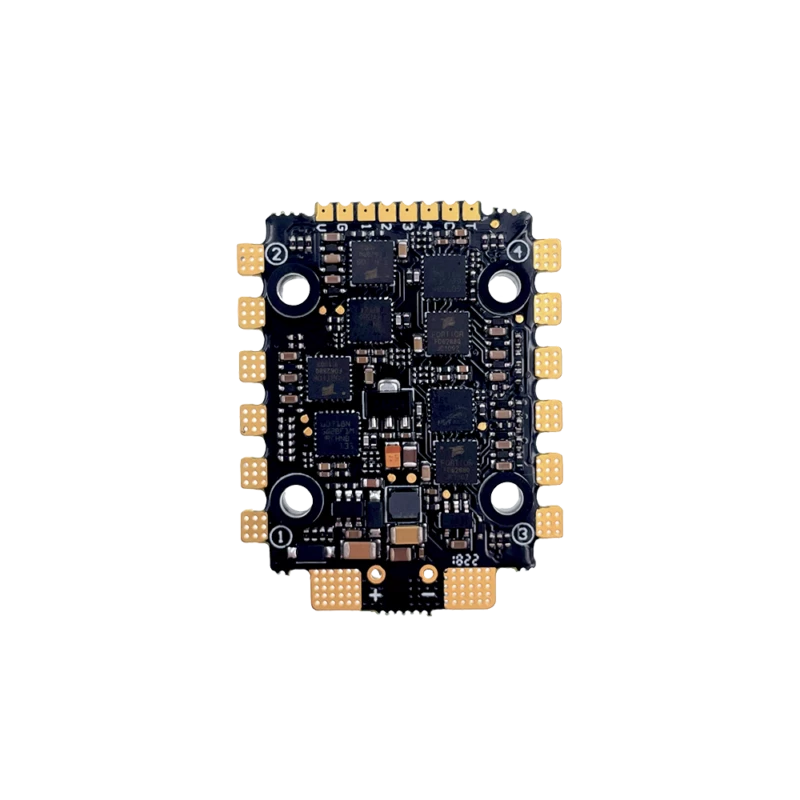

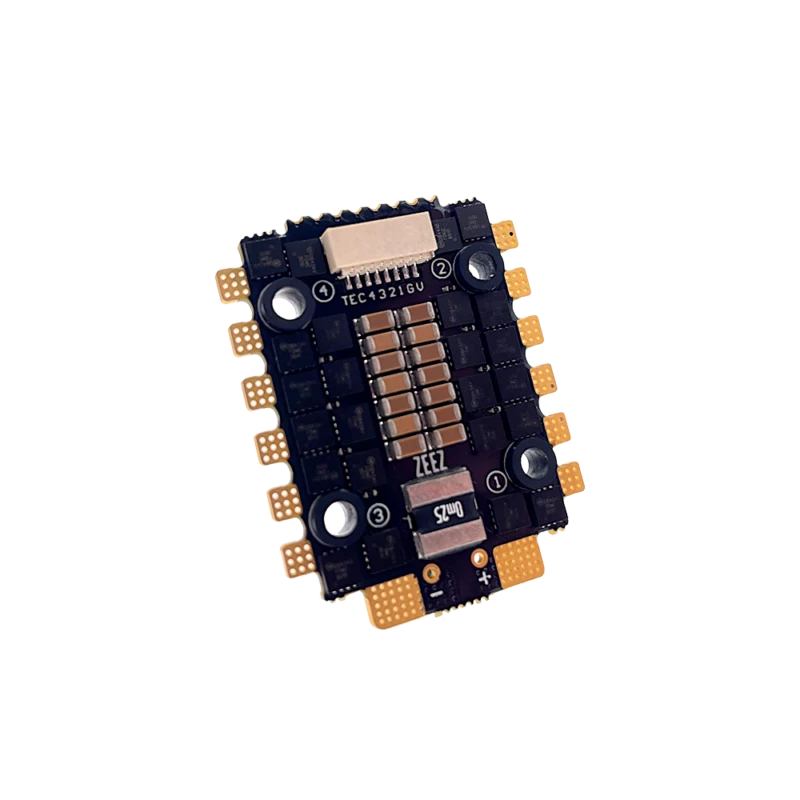

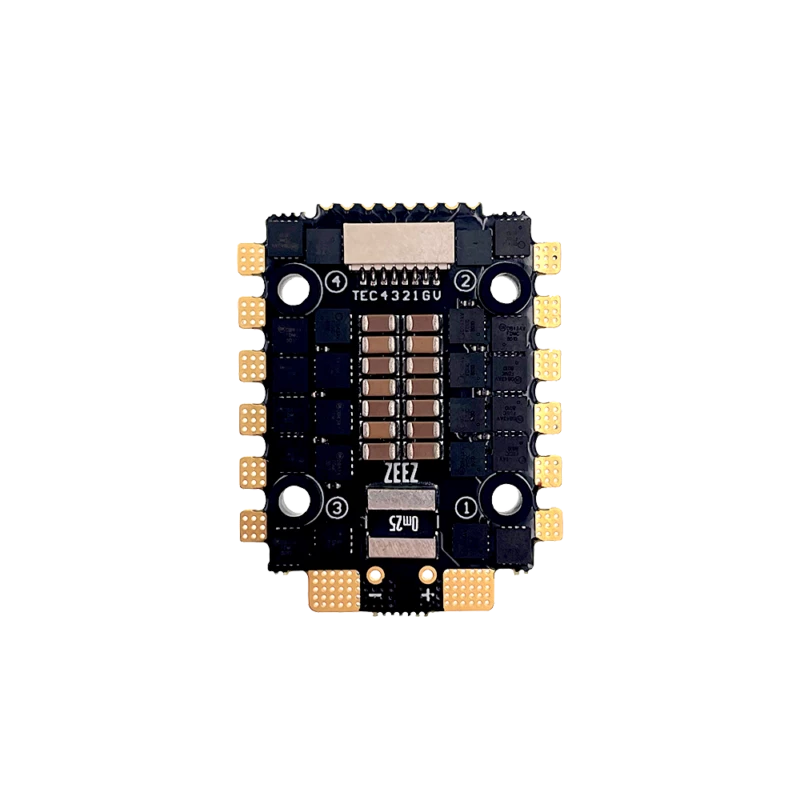

Zeez Design 20x20 45amp 4-in-1 BLHeli_32 ESC V3 2022
$109.95 AUD
Skip to product information
Out of stock
Zeez Design 20x20 45amp 4-in-1 BLHeli_32 ESC V3 2022
$109.95 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup availability
1/80 Somersby falls RD, Somersby NSW
Unavailable for pickup
Product details
SKU:
15478
Shipping Weight:
50g
W/H:
U-02-D-02
Categories:
20x20 ESC, 4 in 1 ESC, Drone ESCs, Zeez Design
Are you looking to buy Zeez Design 45A 20x20 ESC in Australia?
The ZEEZ 45A 4-in-1 ESC is an improved version of last year’s 2020 ESC. We took all the positive feedback from our users around the world along with the new advancements in technology and we truly raised the bar with this one.
The ZEEZ 45A 4-in-1 ESC comes with the fastest MCU available which is fully supported by BLHELI32, the STM32G0. It supports Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) out of the box. It supports 96KHz PWM drive frequency to the MOSFET whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).
We took advice from some of our newer pilots and have improved the solder pads by giving them more clearance.
Features
• LiPo Power input: 3S-6S
• Cont.Current: 45Ax4
• Burst Current: 55Ax4
• Input wires: 14AWG-130mm* (Red/Black)
• Output Wire: solder pads and 8P connector
• High Quality MOSFET 30V rated with RDS(on) 1.3 mΩ
• Mounting holes: 20x20mm
• ESC Firmware: BLHeliSuite32

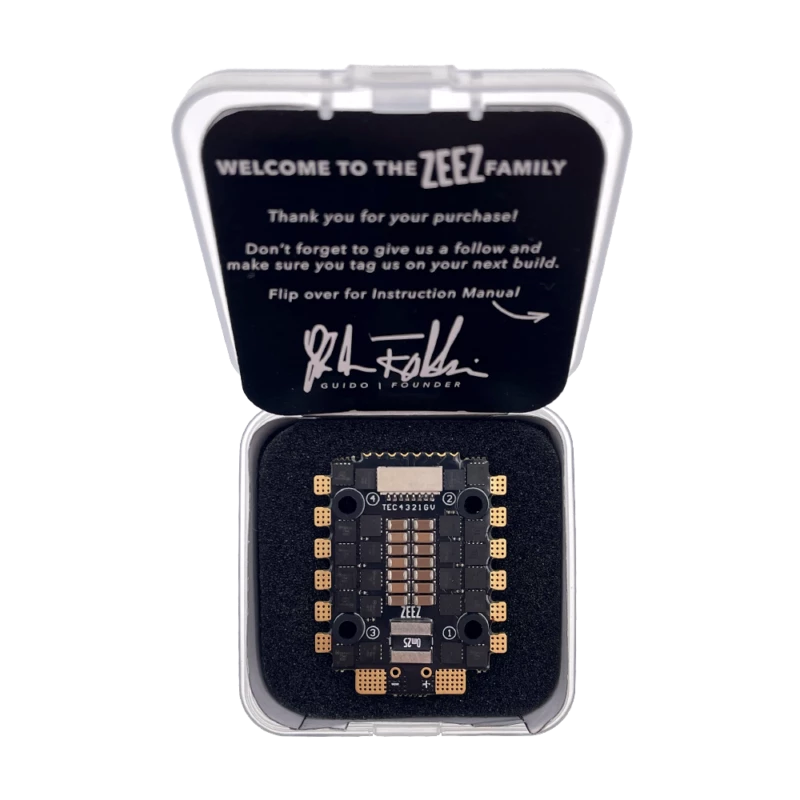

Package includes:
• (1X) ZEEZ 45A 4-in-1 ESC
• (4X) Aluminum Standoff
• (1X) ESC to Flight Controller 8 Pin to Servo Connector JST SH
1.00mm connector
• (2X) 470uF 35V Low ESR Capacitor
• (1X) XT60 with 12AWG Silicon Cable for battery connection
