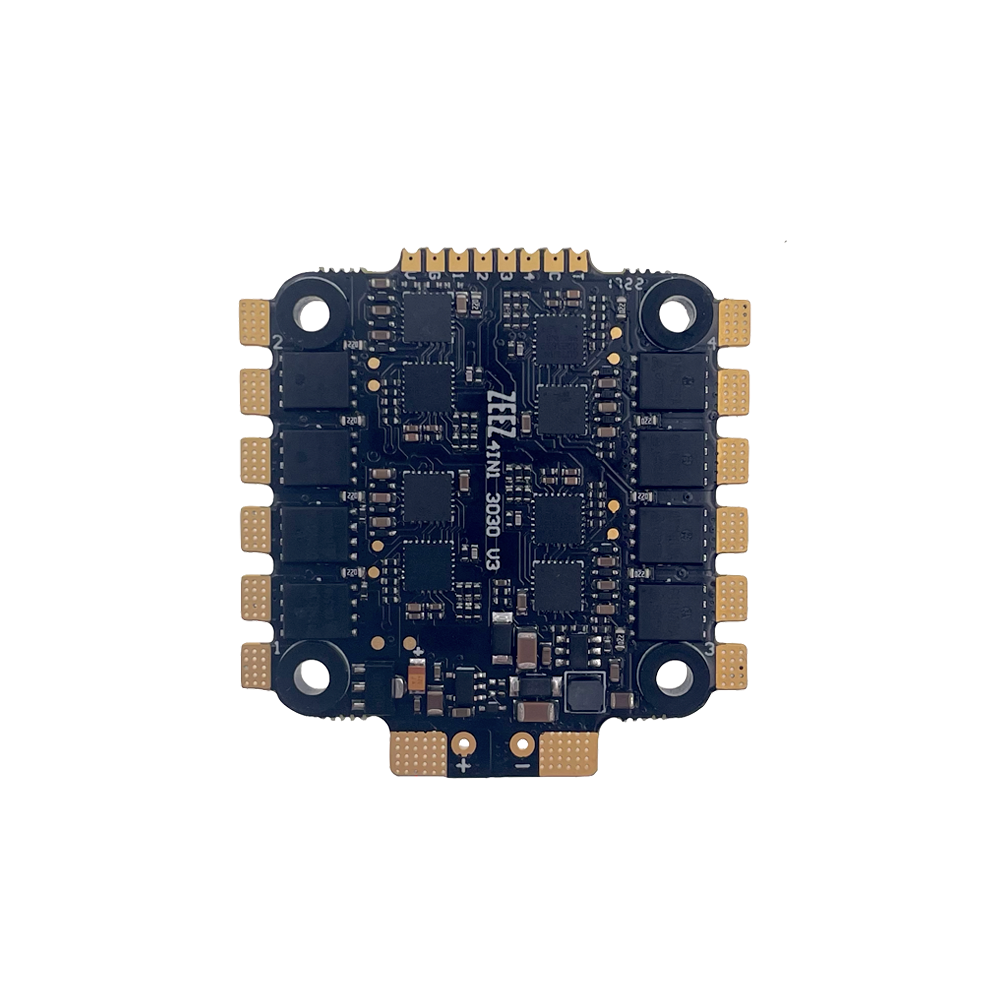

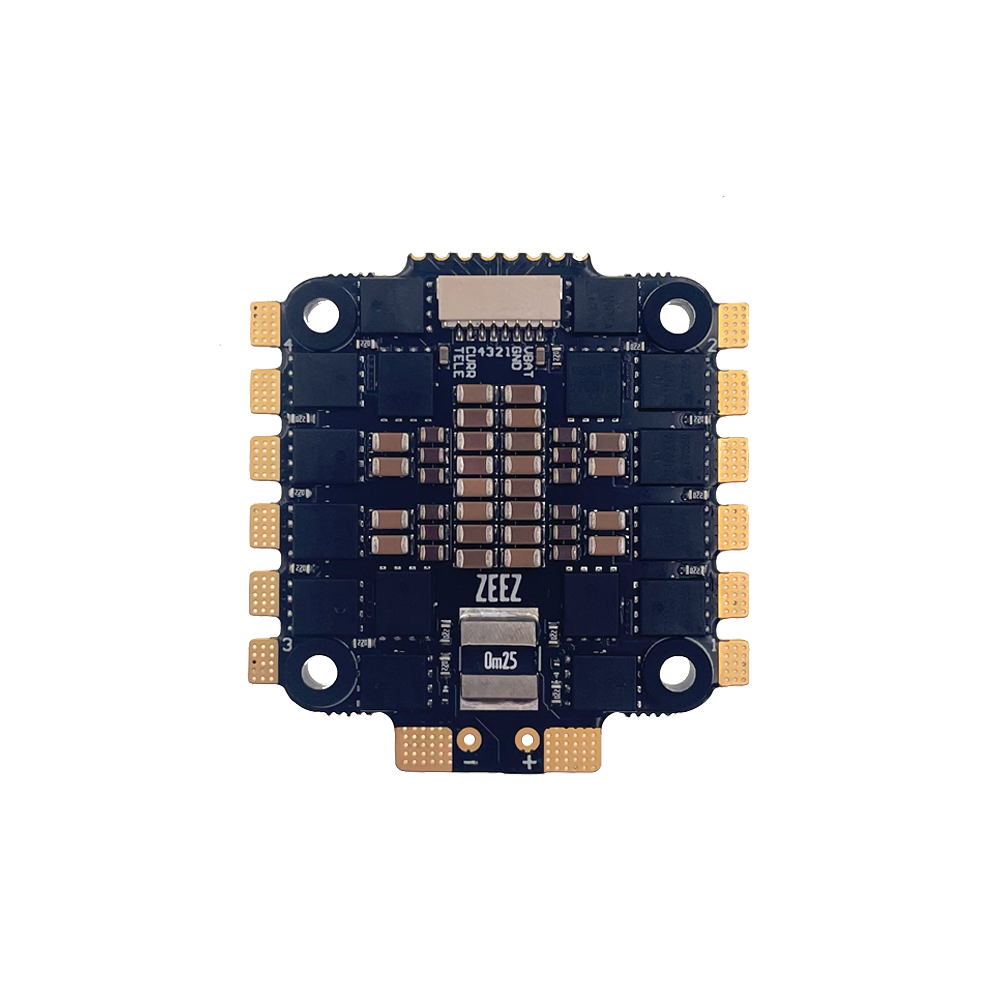

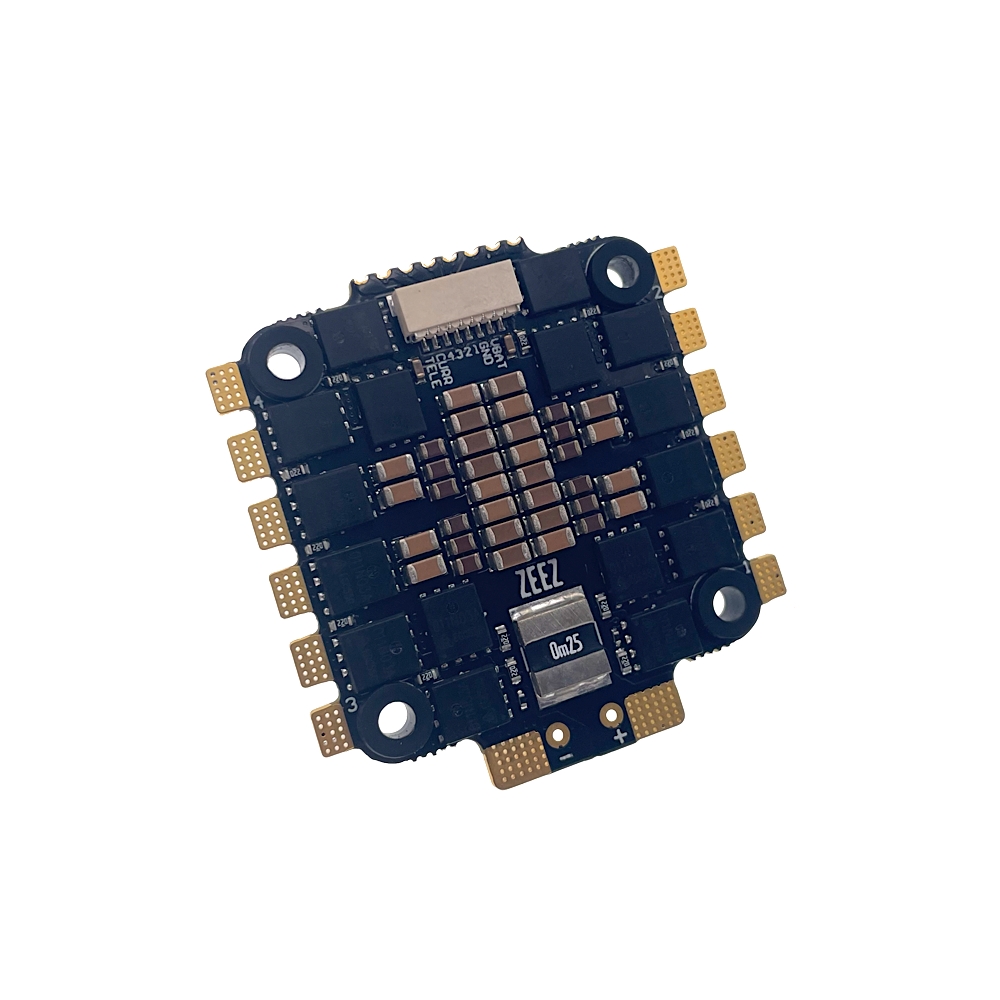

Zeez Design - Zeez 55amp 4-in-1 30x30 BLHeli_32 ESC V3 2022

Name: Zeez Design - Zeez 55amp 4-in-1 30x30 BLHeli_32 ESC V3 2022
Brand: Zeez
SKU: 12849
Price: 109.95 AUD
Availability: OutOfStock

$109.95 AUD

GST included

Out of stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Pickup availability

1/80 Somersby falls RD, Somersby NSW

Unavailable for pickup

SKU: 12849

Shipping Weight: 16g

W/H: U-02-D-02

Categories: 30x30 ESC, 4 in 1 ESC, Drone ESCs, Zeez Design

Tags: 55 Amp, ESC

Add to Wishlist

Why buy from Phaser FPV?

Dependable — Phaser started in 2012. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy Zeez Design 55A 4in1 ESC in Australia?

The ZEEZ 55A 4-in-1 ESC is an improved version of last year’s 3030 ESC. We took all the positive feedback from our users around the world along with the new advancements in technology and we truly raised the bar with this one.

The ZEEZ 55A 4-in-1 ESC comes with the fastest MCU available which is fully supported by BLHELI32, the STM32G0. It supports Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) out of the box. It supports 96KHz PWM drive frequency to the MOSFET whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).

We took advice from some of our newer pilots and have improved the solder pads by giving them more clearance, which makes soldering as easy as 1,2,3. We also added additional copper around the pads for greater strength.

Features
• LiPo Power input: 3S-6S
• Cont. Current: 55Amps x 4
• Burst Current: 75Amps x 4
• Input wires: 12AWG-130mm* (Red/Black)
• Output Wire: solder pads and 8P connector
• Mounting holes: 30.5x30.5mm
• ESC Firmware: BLHeliSuite32
• High quality MOSFET with RDS(on) 0.75 mΩ 30V
rated.

Package includes:

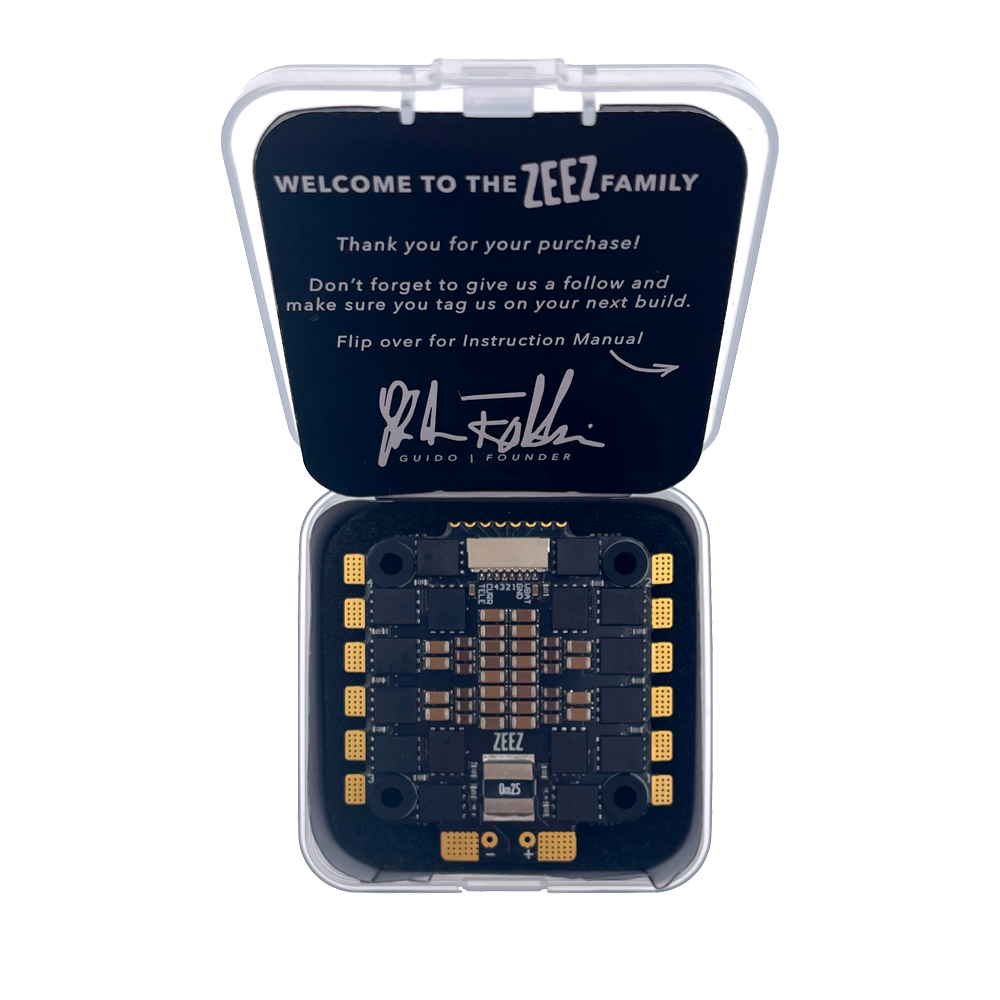

• (1X) ZEEZ 55A 4-in-1 ESC
• (4X) Aluminum Standoff
• (1X) ESC to Flight Controller 8 Pin to Servo Connector JST SH
1.00mm connector
• (2X) 470uF 35V Low ESR Capacitor
• (1X) XT60 with 12AWG Silicon Cable for battery connection
